Tg0699-PM-D2 Glass Surface of P .E.C. Recognition Lighting Remove dirt and dust with a vacuum cleaner . Clean Fig. 5A12 R Conveyor Section 4. Daily Maintenance 0207-001 Chapter 3 1-12 Fig. 5A13 P .E.C. Recognation Sectio…
Tg0699-PM-D2

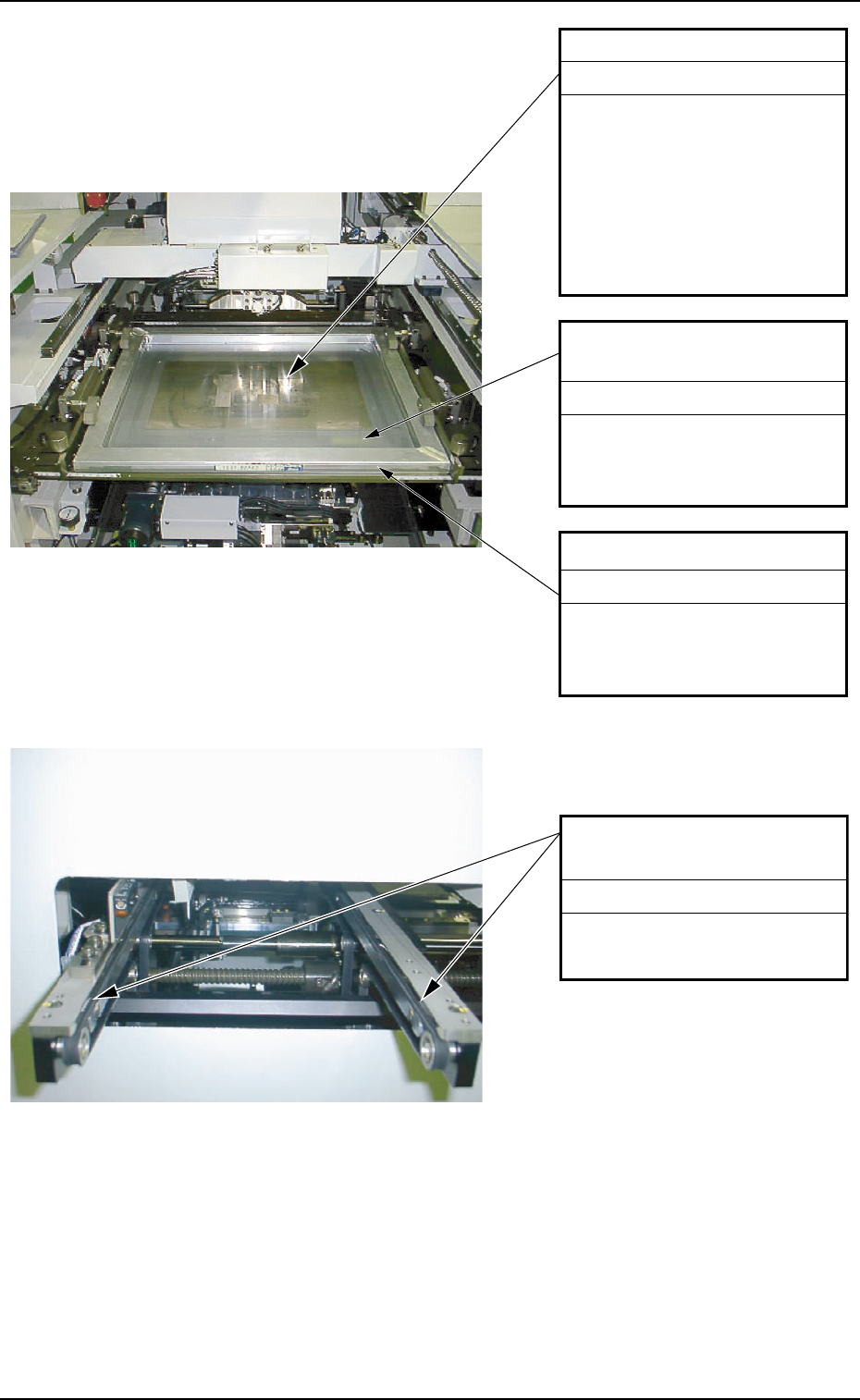

4. Daily Maintenance
Fig. 5A11 L Conveyor Section
0207-001 Chapter 3 1-11
Lower Surface of Screen
Clean the scren bottom with
a rag soaked in industrial al-
cohol (solvent).
Clean
Upper Surface of Screen
Holder
Remove dirt on the upper
surface and side face with a
rag if any.
Cleaning
Screen Printing Patterns
After using the screen, use
industrial alcohol (solvent)
and the ultrasonic cleaner
to clean the screen such
that the mesh (pores) of the
screen (screen patterns) is
not clogged.
Cleaning
Fig. 5A10 Screen Holder Section
Upper Surface of P.C.B.
Transfer Belt
Remove solder paste and
dust with a vacuum cleaner.
Clean
Tg0699-PM-D2

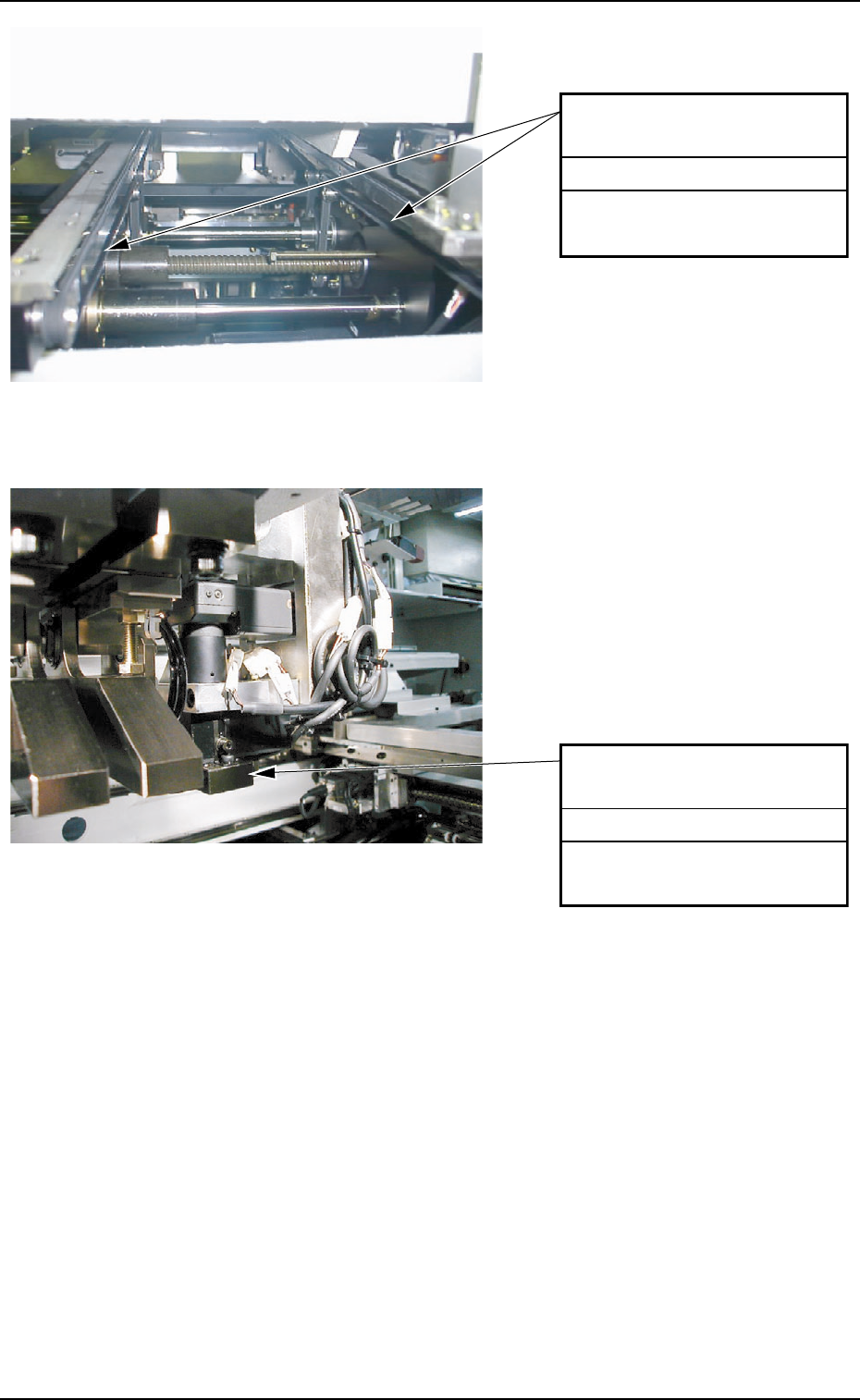

Glass Surface of P.E.C.
Recognition Lighting
Remove dirt and dust with
a vacuum cleaner.
Clean
Fig. 5A12 R Conveyor Section
4. Daily Maintenance
0207-001 Chapter 3 1-12
Fig. 5A13 P.E.C. Recognation Section
Upper Surface of P.C.B.
Transfer Belt
Remove solder paste and
dust with a vacuum cleaner.
Clean
Tg0699-PM-D2

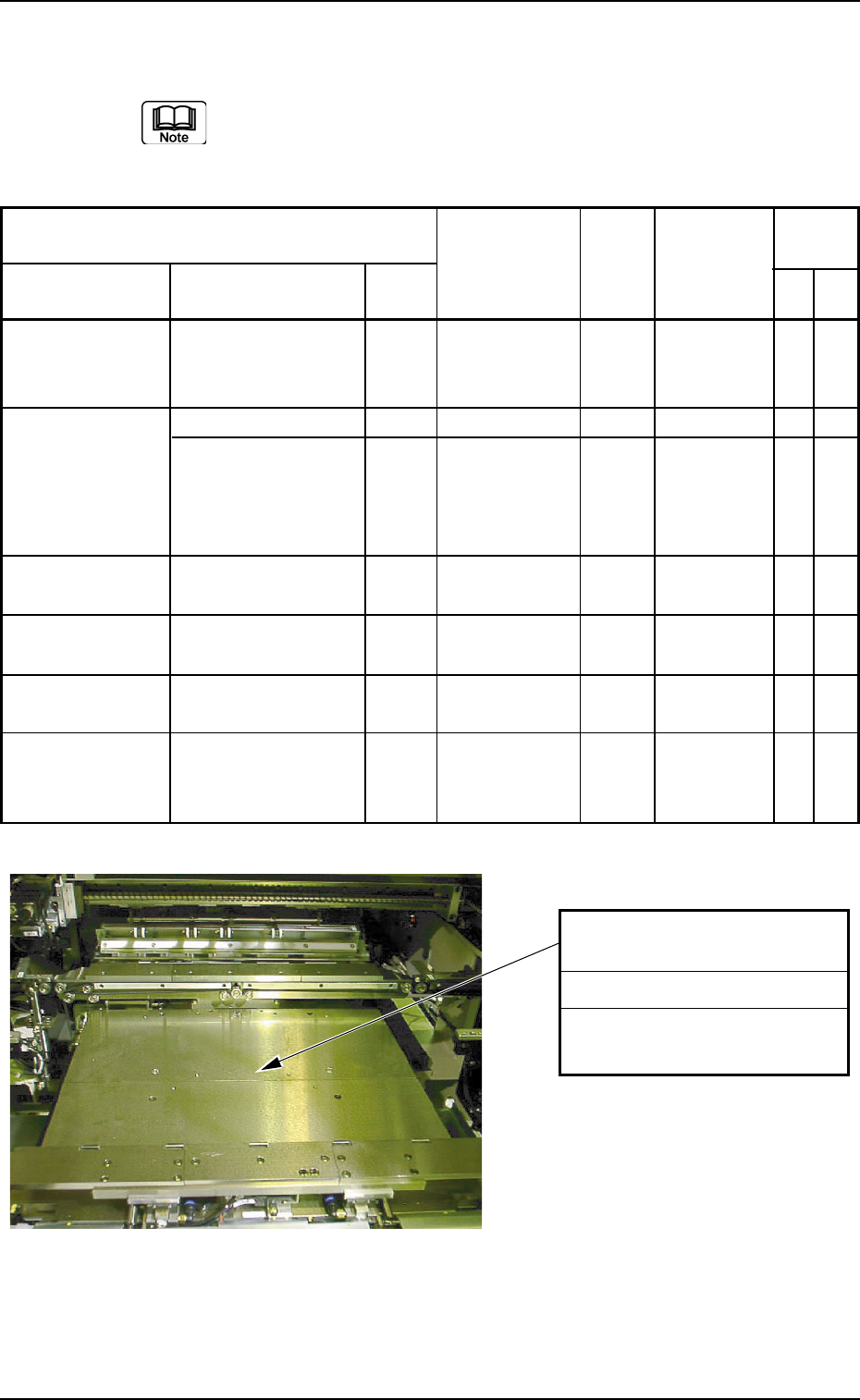

5. Weekly Maintenance
5. Weekly Maintenance
DE1: DAPHNE EPONEX GREASE No. 1
Fig. 5A14 P.C.B. Chuck Section
Upper Surface of Backup
Table and Pin Hole Section
Cleaning
Remove solder paste and
dust with a vacuum cleaner.
Table 5A5
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Nozzles,
etc.
P.C.B. Chuck Upper Surface of 5A14 Cleaning - Vacuum
Section Backup Table and Cleaner
Pin Hole Section
P.E.C. P.C.B. Stopper 5A15 Cleaning DE1 Oiled Rag
Recognition P.C.B. Warpage 5A15 Cleaning - Rag
Section Top Holder
(Outer Circumfe-
rence of Roller)
Air Source Drain 5A16 Cleaning - Container,
etc.
L Conveyor Interlock 5A17 Cleaning - Vacuum
Section Cleaner
R Conveyor Interlock 5A18 Cleaning - Vacuum
Section Cleaner
Blower Filter 5A19 Cleaning - Air and
Vacuum
Cleaner
0509-002 Chapter 3 1-13
Block Name Detailed Name
Fig.
No.
