Tg0699-PM-D2
2.3 Error IDs and Remedial Procedures
0207-001 Chapter 2 2-82

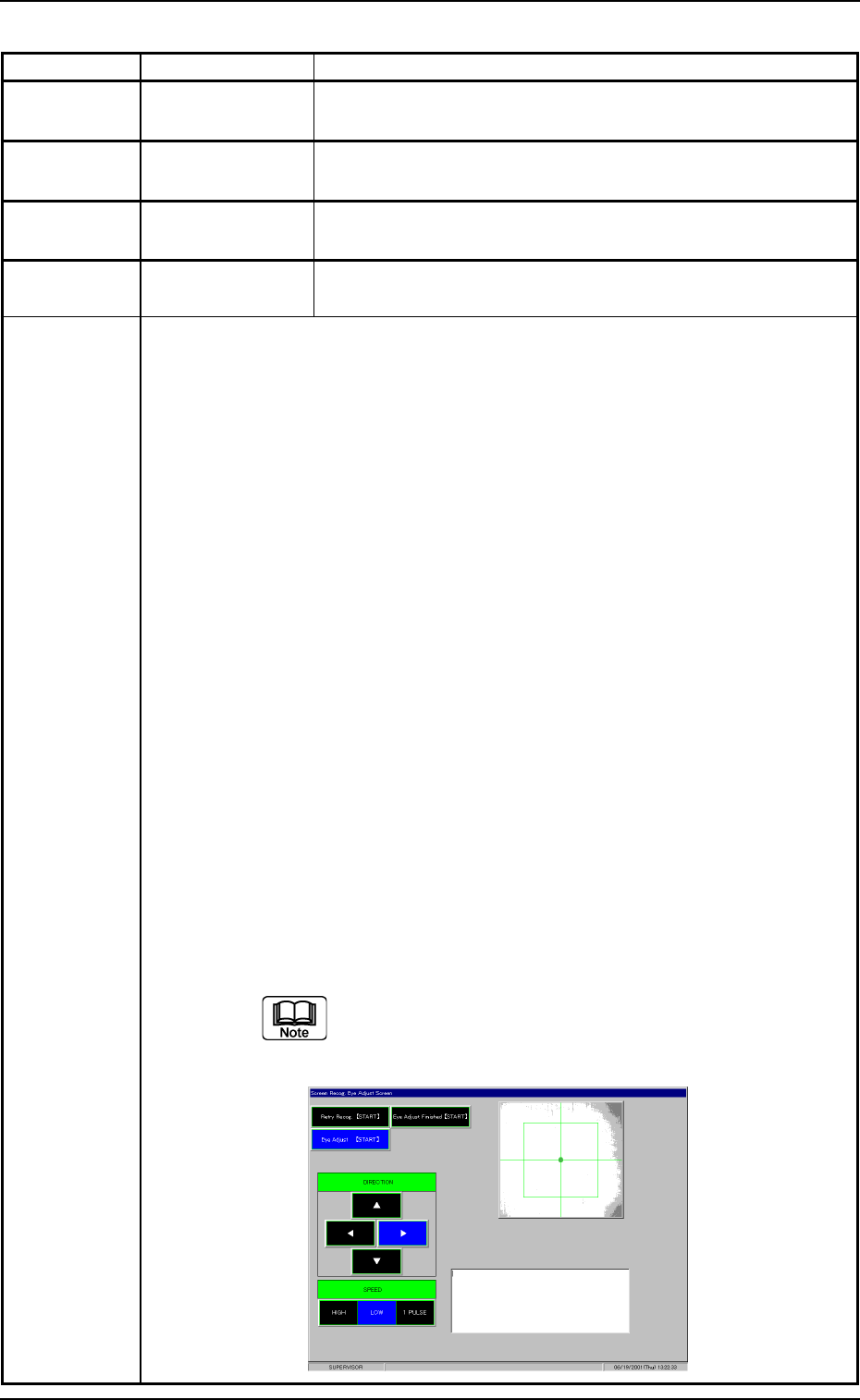

Table 4B80
Error ID Item Description
1801029 Fiducial Mark #1 Image around fiducial mark was unstable.
1801030 Fiducial Mark #1 Error of mark figure similitude was extensive.
1801031 Fiducial Mark #1 Error of mark similitude or mark size was extensive.
1801032 Fiducial Mark #1 Specified mark was not found in window of recog.monitor.
(Cause 1) The fiducial marks do not conform to the coordinates X and Y of the fiducial
marks or the recognition mark data in the pattern program.
(Remedy 1) Follow the steps below to reset the machine to the normal condition.
(1) When the [RESET] button is pressed, the following window opens.
(2) When the actual fiducial mark is out of the recognition area, move
the camera such that the mark can enter the recognition area.
Select the [Eye Adjust [START]] button and press one of the arrow
buttons in the "DIRECTION" and "SPEED" boxes. While the [START]
button is being pressed, the camera keeps on moving.
(3) Select the [Retry Recog.[START]] button and press the [START] but-
ton.
When the recognition is completed successfully, this window auto-
matically closes.
(4) When the recognition still failed after the re-recognition operation,
move the camera such that the actual fiducial mark can stay at the
fiducial mark template (located at the center of the cross hair).
Note: Be sure to adjust the position of the fiducial mark as accu-
rately as possible because the printing accuracy is affected by
this adjustment.
(5) Select the [Eye Adjust Finished [START]] button and press the
[START] button.
The original window resumes.
If the [STOP] button is pressed while the "Eye Adjust" window
is active, the processing is interrupted and the original window
resumes.
Tg0699-PM-D2
2.3 Error IDs and Remedial Procedures
0207-001 Chapter 2 2-83
Table 4B81
Error ID Item Description
1801038 Fiducial Mark #1 Unavailable fiducial mark polality was set.
1801040 Fiducial Mark #1 Unavailable fiducial mark area was set.
1801043 Fiducial Mark #1 Recognition system error.
1801056 Fiducial Mark #1 Recog. transaction time over.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Shut down the power of the machine once and power up the machine
again. After that, restart the operation.
When the same error still occurs, contact our service personnel for de-
tails.
1802000 Fiducial Mark #2
1802001 Fiducial Mark #2 [Camera ID] exceeds the range of setting.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
If the machine is not reset to its normal condition, shut down the power of
the machine once and power up the machine again. After that, re-start
the operation.
When the same error still occurs, contact our service personnel for de-
tails.
1802003 Fiducial Mark #2 [Camera Gain] exceeds the range of setting.
1802004 Fiducial Mark #2 [Camera Level] exceeds the range of setting.
1802011 Fiducial Mark #2 [Mark Size D1] exceeds the range of setting.
1802012 Fiducial Mark #2 [Mark Size D2] exceeds the range of setting.
1802014 Fiducial Mark #2 [Mark Judge Level] exceeds the range of setting.
(Cause 1) The data has exceeded the allowable range.
(Remedy 1) Set correct parameters.
Tg0699-PM-D2
2.3 Error IDs and Remedial Procedures
0207-001 Chapter 2 2-84
Table 4B82
Error ID Item Description
1802029 Fiducial Mark #2 Image around fiducial mark was unstable.
1802030 Fiducial Mark #2 Error of mark figure similitude was extensive.
1802031 Fiducial Mark #2 Error of mark similitude or mark size was extensive.
1802032 Fiducial Mark #2 Specified mark was not found in window of recog.monitor.
(Cause 1) The fiducial marks do not conform to the coordinates X and Y of the fiducial
marks or the recognition mark data in the pattern program.
(Remedy 1) Refer to Error ID 1801032 for details.
1802038 Fiducial Mark #2 Unavailable fiducial mark polality was set.
1802040 Fiducial Mark #2 Unavailable fiducial mark area was set.
1802043 Fiducial Mark #2 Recognition system error.
1802056 Fiducial Mark #2 Recog. transaction time over.
