Safe-14 Tg0698-PM-D1 Safety Precautions 0509-001 4. Alert Labels The alert labels (described below) are used for this machine. Please read the instructions on each label carefully and check the contents, observing the ac…
Safe-13 Tg0698-PM-D1
Safety Precautions

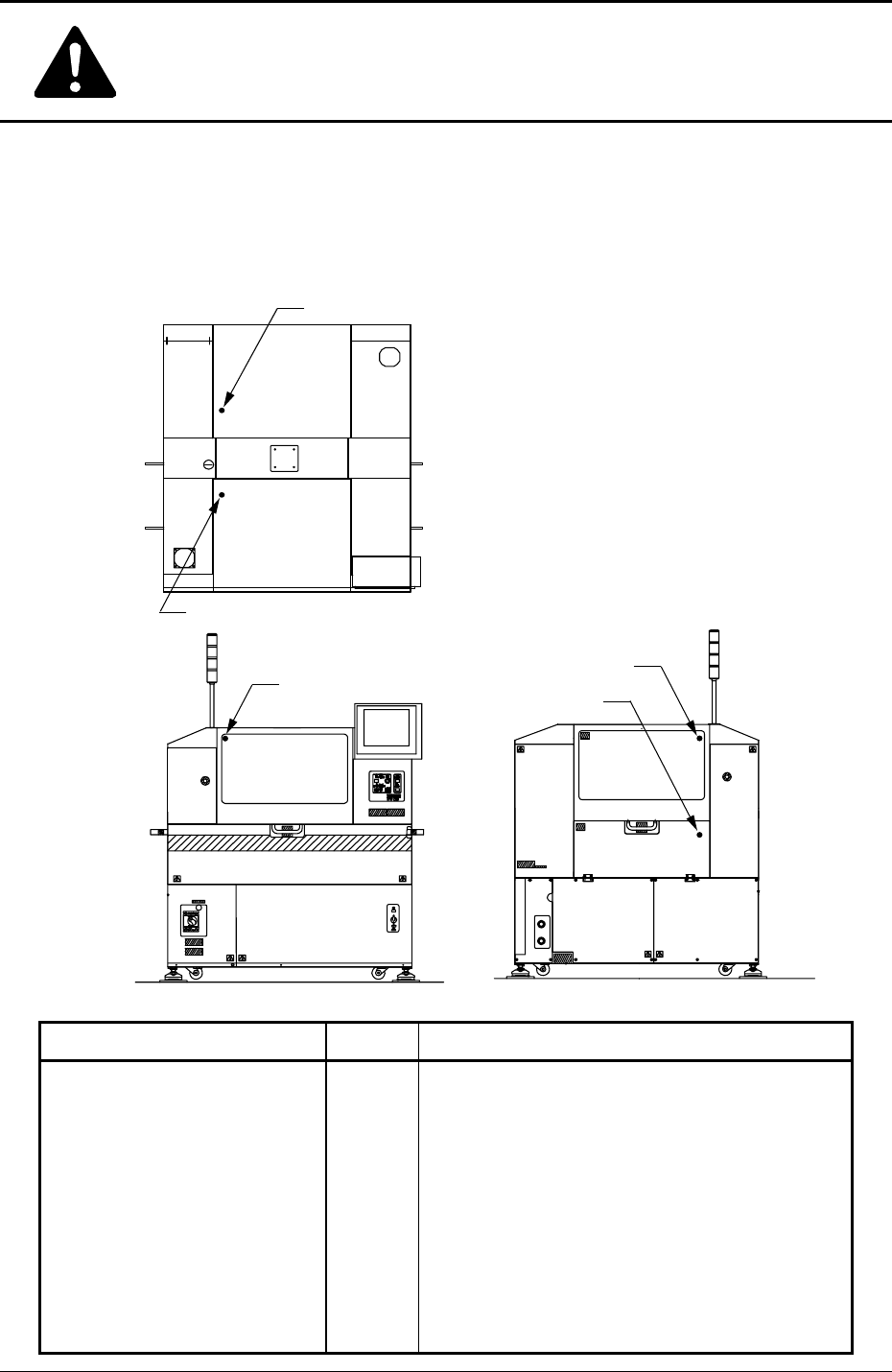

[Safety Door Check] Switches
When the safety door is opened with the [OPERATION/SETUP] switch set to the "OP-
ERATION" side, this switch is activated and an abnormal condition is indicated.
When the switch is set to the "SETUP" side, this switch is not activated.
Switch Name Symbol Countermeasures
0509-001
[Safety Door Check] Switch
When the safety door is opened, the following
modules are taken.
• All power sources for loads are shut off.
The power supply to the mechanisms of all
motor shafts and 24-voltage loads in the
solenoid system (SOL and SV) is shut off.
Note: The control power supply for the
control boards, switches, and lamps is
excluded.
SQ001
SQ002
SQ003
SQ001
SQ002
SQ002
SQ003
SQ001
Top View
Front View
Rear View
Safe-14 Tg0698-PM-D1
Safety Precautions
0509-001
4. Alert Labels
The alert labels (described below) are used for this machine.
Please read the instructions on each label carefully and check the contents, observing the
actual object.
Be sure to follow the instructions for safety purposes.
These labels should be kept clean and easily legible at a far safe distance.
When a label has deteriorated and become illegible, contact our service department for
the replacement with a new one.
Safe-15 Tg0698-PM-D1
Safety Precautions

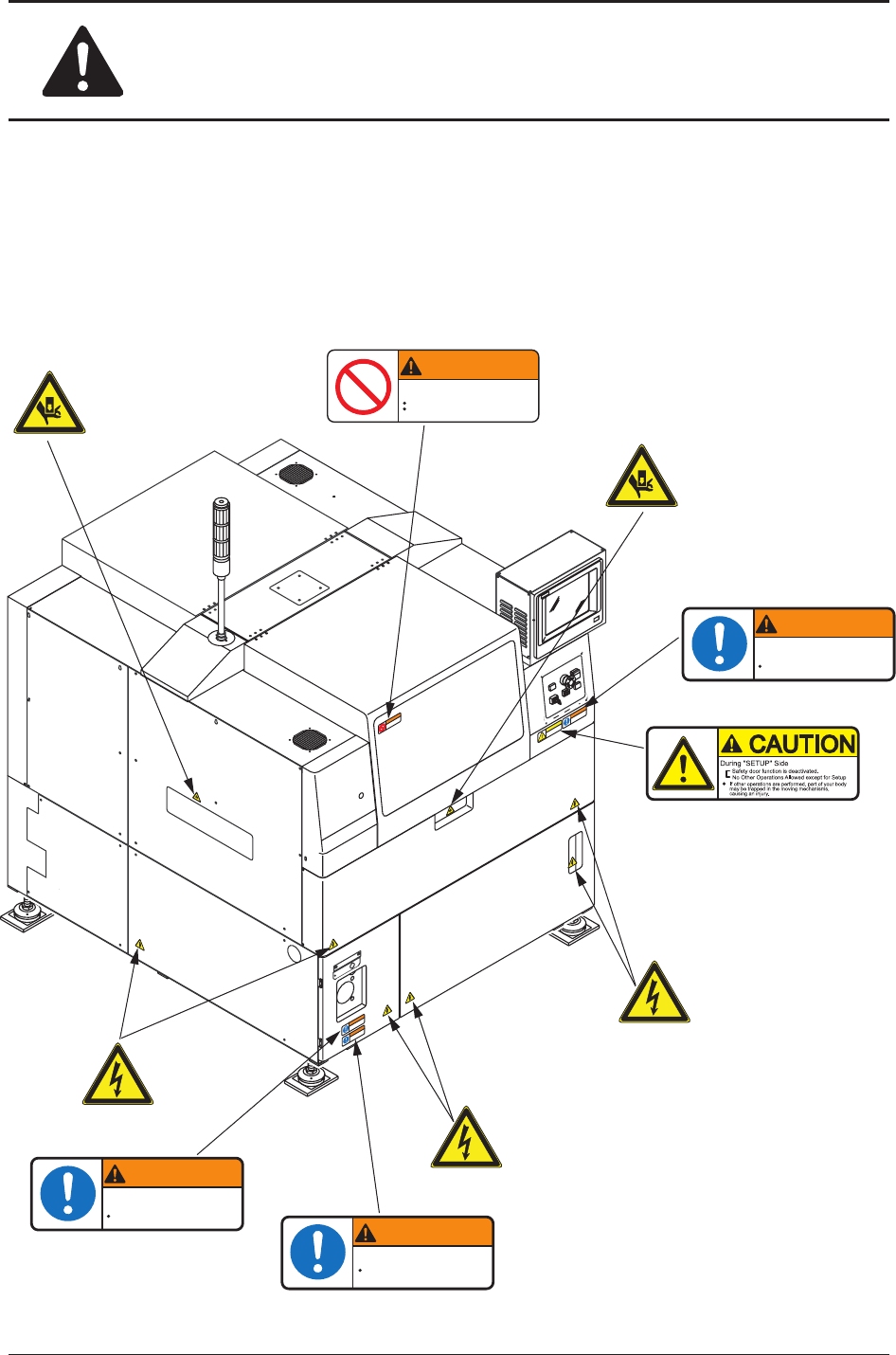

Location of Alert Labels
The alert labels are affixed on dangerous and caution-required areas.
Refer to "Alert Labels and Description" for details.
(1-2)
(1-2)
(1-2)
(2)
(4)
(5)
(5)
(9)
(7)
(7)
WARNING
WARNING
Keep the door closed
during operation.
Otherwise, part of your body may be trapped
in the moving mechanisms, causing an injury.
Do not keep the door open during operation.
WARNING
WARNING
Please read the instruction manual
carefully for correct operations
Please read the instruction manual
carefully for correct operations
WARNING
WARNING
High Leakage Current!
Earth Connection Essential
before Connecting Supply
WARNING
WARNING
Please read the instruction manual
carefully for correct operations
Please read the instruction manual
carefully for correct operations
0509-001
