Tg0699-PM-D2 Fig. 5A26 P .E.C. Recognition Section Fig. 5A27 P .E.C. Recognition Section Fig. 5A28 Squeegee Head Section 6. Monthly Maintenance 0207-001 Chapter 3 1-22 X-Axis Linear Guide Clean the guide from the rear si…

Tg0699-PM-D2

Fig. 5A25 P.C.B. Chuck Section

6. Monthly Maintenance

0207-001 Chapter 3 1-21

Linear Guide for P.C.B. Clamping

Clean the guide with a brush.

Note : Remove waste thread if any.

Clean the linear guide using the following procedure.

Select "Chute Open" in the "Jig Change Mode" on the "Backup Jig Change" tab on the

"PRODUCT CHG." submenu window in the "SPECIAL SEL." menu.

Cleaning

Fig. 5A24 P.C.B. Chuck Section

Spline for Chute width

Adjustment

Clean the spline with a

Brush.

Note : Remove waste thread

if any.

Lubrication

Tg0699-PM-D2

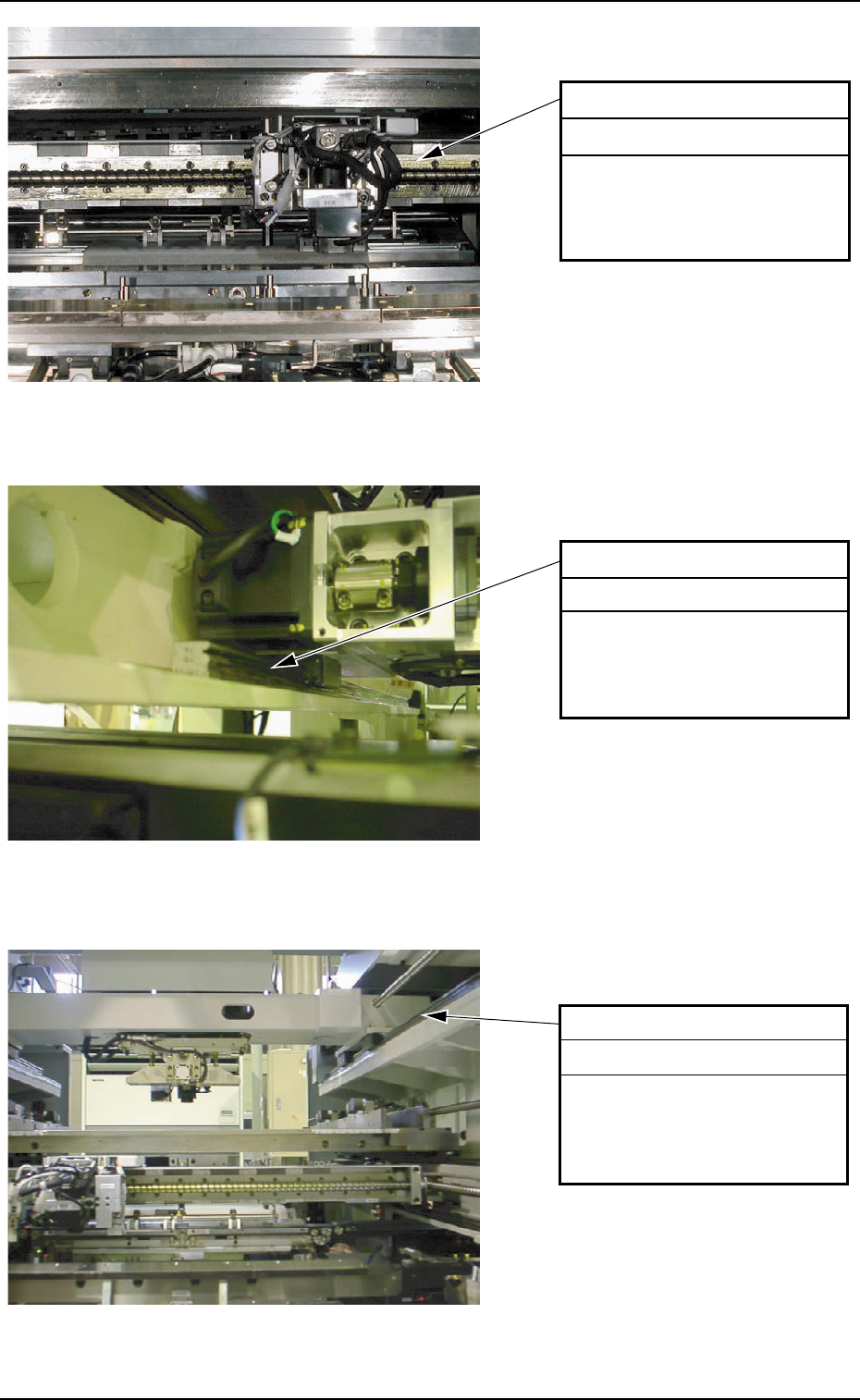

Fig. 5A26 P.E.C. Recognition Section

Fig. 5A27 P.E.C. Recognition Section

Fig. 5A28 Squeegee Head Section

6. Monthly Maintenance

0207-001 Chapter 3 1-22

X-Axis Linear Guide

Clean the guide from the

rear side, with an oiled rag.

Note : Remove waste thread

if any.

Cleaning

Clean the guide with an

oiled rag.

Note : Remove waste thread

if any.

Cleaning

Y-Axis Linear Guide

Clean the guide with an

oiled rag.

Note : Remove waste thread

if any.

Cleaning

Y-Axis Linear Guide

Tg0699-PM-D2

Fig. 5A29 Squeegee Head Section

Fig. 5A30 Squeegee Head Section

Fig. 5A31 Screen Holder Section

6. Monthly Maintenance

0207-001 Chapter 3 1-23

X-Axis Linear Guide

Clean the guide with an

oiled rag.

Note : Remove waste thread

if any.

Cleaning

Guide Bushing for Squeegee

Up/Down Movement

Remove the squeegee cover

and then, clean the bushing

with an oiled rag.

Note : Remove waste thread

if any.

Cleaning

Screen Y-Axis Linear Guide

Clean the guide with an

oiled rag.

Note : Remove waste thread

if any.

Cleaning
