Tg0699-PM-D2 X-Axis Ball Screw Apply grease with a brush. Note : If a large amount of grease is applied to the ball screw , it may be dispersed over a P .C.B. and the screen. After applying grease to the ball screw , bru…

Tg0699-PM-D2

Ball Screw for Chute Width

Adjustment

Lubrication

Apply grease with a brush or a

spatula.

Linear Guide for Chute Width

Adjustment

Lubrication

Apply grease with a brush

or a spatula.

X-Axis Linear Guide

Apply grease with a brush or a

spatula from the rear side.

Lubrication

P.C.B. Stopper Guide Bushing

Apply grease with a brush or a

spatula.

Note : If a large amount of

grease is applied to the

ball screw, it may be

dispersed over a P.C.B.

and the screen. After

applying grease to the

ball screw, brush the

surface or scrape with a

spatula until a small

amount of grease

remains.

Lubrication

Fig. 5A43 P.E.C. Recognition Section

Fig. 5A42 P.C.B. Chuck Section

8. Half-Yearly Maintenance

0207-001 Chapter 3 1-32

Linear Guide for P.C.B.

Clamping

Apply grease with a brush or

a spatula.

Lubrication

Fig. 5A41 P.C.B. Chuck Section

Tg0699-PM-D2

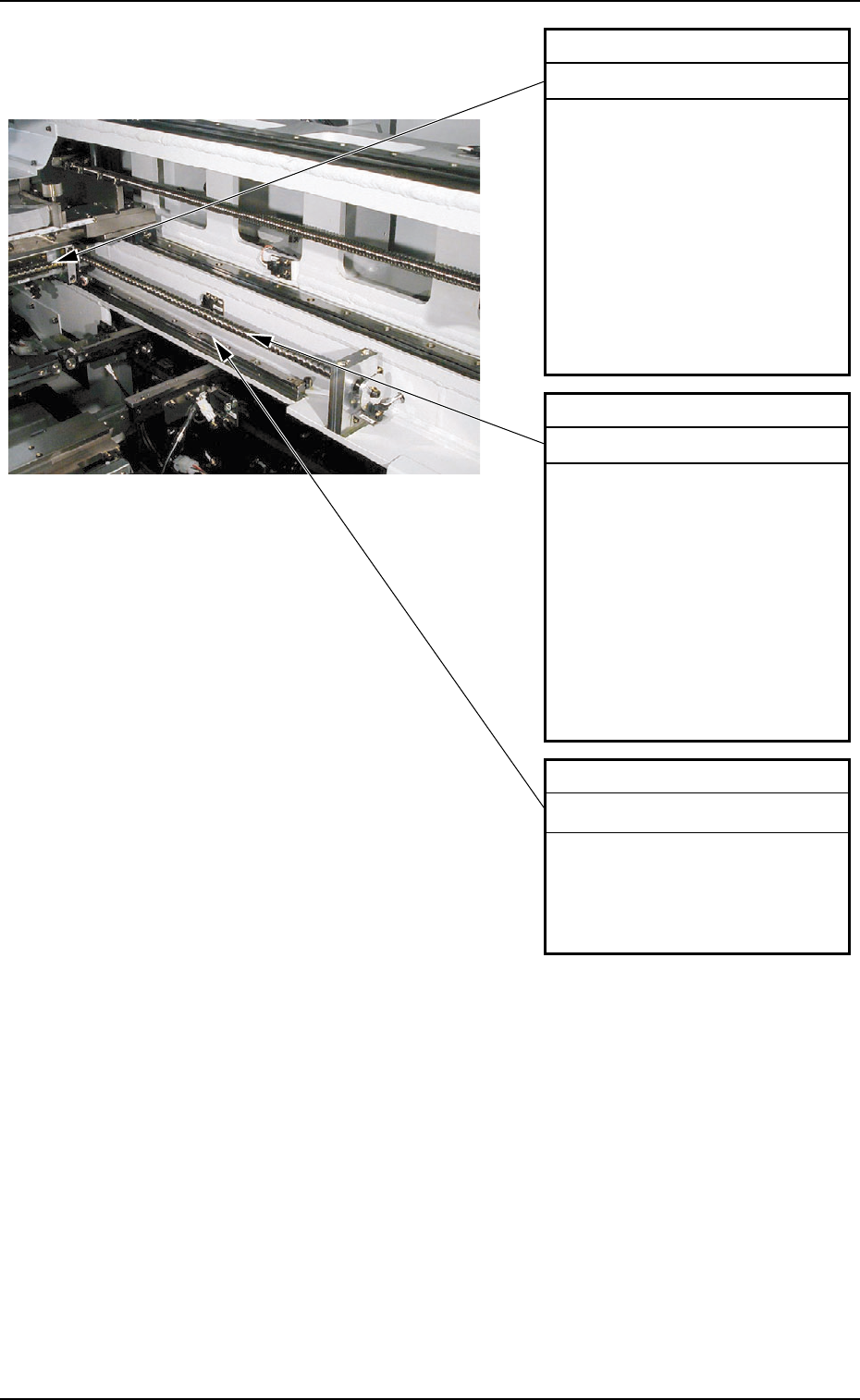

X-Axis Ball Screw

Apply grease with a brush.

Note : If a large amount of

grease is applied to the

ball screw, it may be

dispersed over a P.C.B.

and the screen. After

applying grease to the

ball screw, brush the

surface until a small

amount of grease

remains.

Lubrication

Y-Axis Ball Screw

Apply grease with a brush.

Note : If a large amount of

grease is applied to the

ball screw, it may be

dispersed over a P.C.B.

and the screen. After

applying grease to the

ball screw, brush the

surface until a small

amount of grease

remains.

Lubrication

Y-Axis Linear Guide

Apply grease with a brush.

Note : If a large amount of

grease is applied, it

might attach on the PCB.

Lubrication

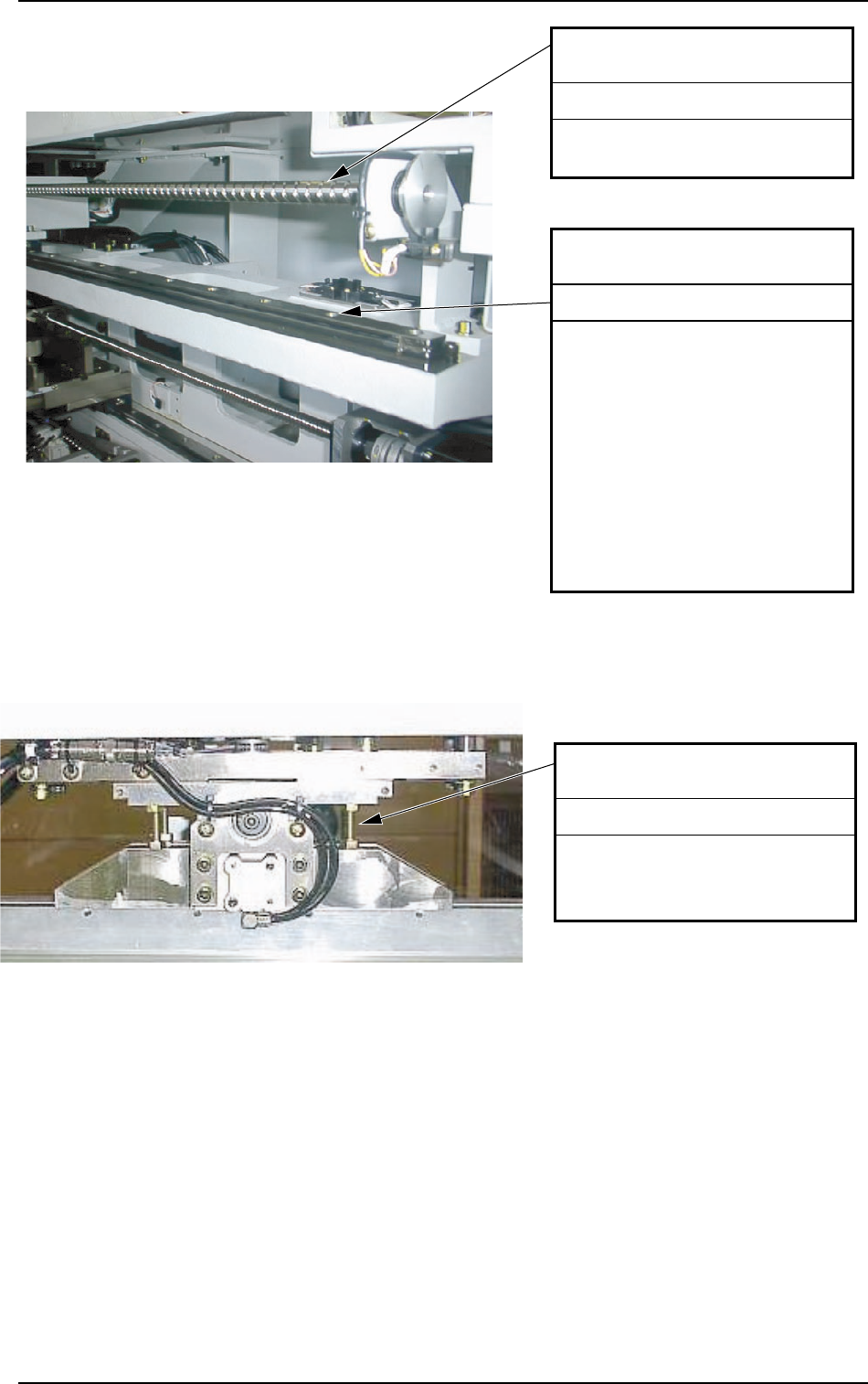

Fig. 5A44 P.E.C. Recognition Section

8. Half-Yearly Maintenance

0207-001 Chapter 3 1-33

Tg0699-PM-D2

Fig. 5A45 Squeegee Head Section

Fig. 5A46 Squeegee Head Section

8. Half-Yearly Maintenance

0207-001 Chapter 3 1-34

⛎ᴤ

ࠬࠠ࡯ࠫࡋ࠶࠼Yゲ

࡝࠾ࠕࠟࠗ࠼

Inject grease into the grease

nipple with a grease gun.

Lubrication

Squeegee Head Y-Axis Ball

Screw

Apply grease with a brush.

Note : If a large amount of

grease is applied to the

ball screw, it may be

dispersed over a P.C.B.

and the screen. After

applying grease to the

ball screw, brush the

surface until a small

amount of grease

remains.

Lubrication

Squeegee Head Y-Axis Linear

Guide

Guide Bushing for Squeegee

Up/Down Movement

Remove the squeegee cover

and apply grease with a brush

or spatula.

Lubrication
