Tg0699-PM-D2 0509-002 Chapter 3 1-5 2.2 Preparation for Lubrications Specified Lubrication T ools (1) Brush Use a brush whose bristles do not come off if possible. (2) Vinyl Gloves Use a pair of vinyl gloves to apply gre…
Tg0699-PM-D2
2.2 Preparation for Lubrications
0509-002 Chapter 3 1-4
2.2 Preparation for Lubrications
Prepare for the specified types of grease and lubrication tools.
Specified Greases
• DAPHNE EPONEX GREASE No. 1 (Idemitsu Kosan Co., Ltd.)
• MOLYNOC GREASE AP 1 (NIPPON OIL CORPORATION)
(a) Before lubrication, wipe off the old grease. Otherwise, the effect of
grease and oil will decrease.
(b) Obtain the material safety data sheet (MSDS) from the maker to
learn the precautionary points on handling and check the contents
described in detail for correct use.

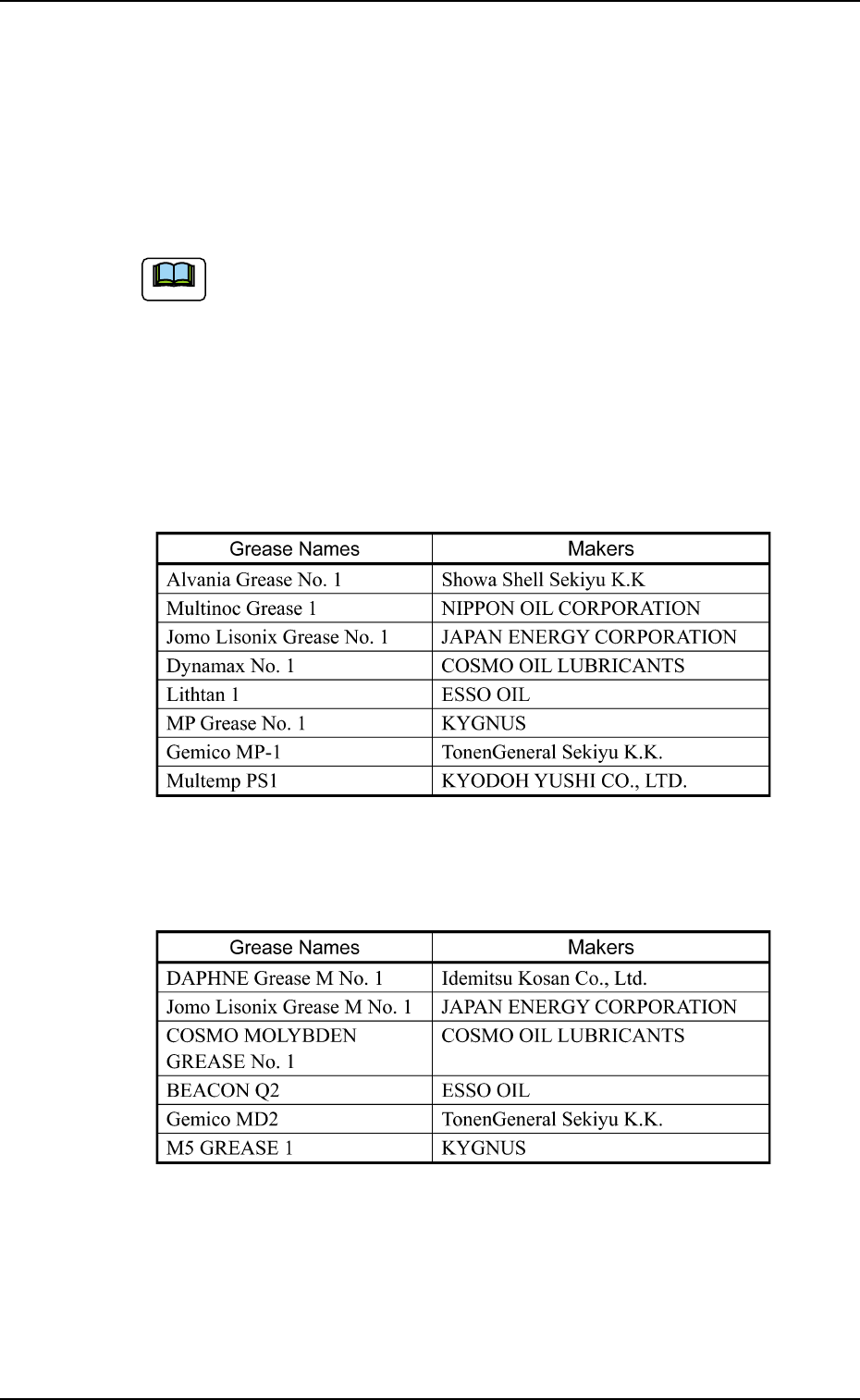

Same Types of Lubricants
• DAPHNE EPONEX GREASE No. 1 (Idemitsu Kosan Co., Ltd.) or
its equivalent
• MOLYNOC GREASE AP 1 (NIPPON OIL CORPORATION) or its
equivalent
Note
Table 5A2
Table 5A2-1
Tg0699-PM-D2
0509-002 Chapter 3 1-5
2.2 Preparation for Lubrications
Specified Lubrication Tools
(1) Brush
Use a brush whose bristles do not come off if possible.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.

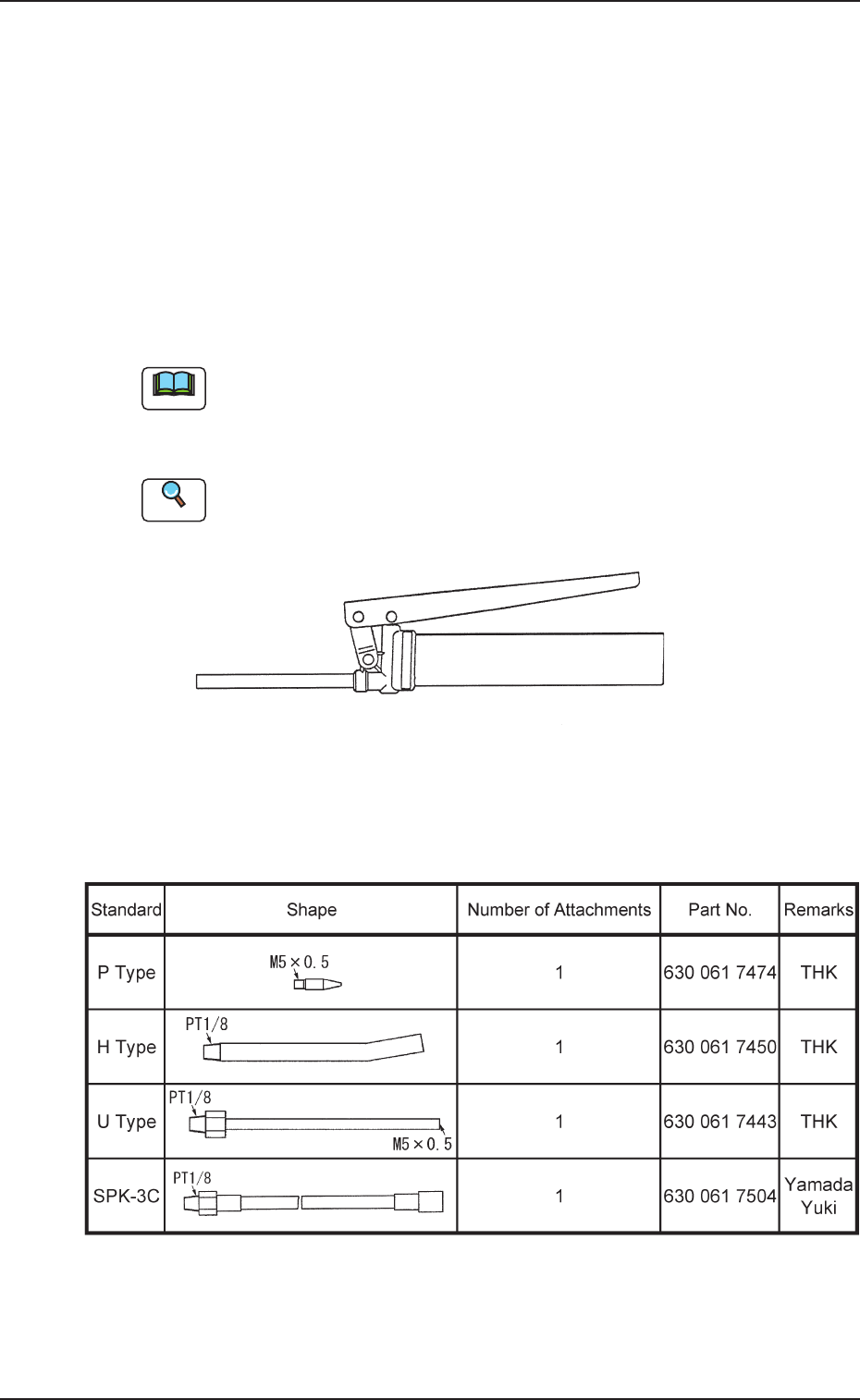

(3) Hand Grease Gun
Standard: KH-120
Part No : 630 062 2577
Maker : Yamada Yuki
(a) Use this gun only for DAPHNE EPONEX GREASE No. 1.
(b) Please purchase a hand grease gun or attachments whenever neces-
sary.
Refer to the attached instruction manuals for the hand grease gun for the
usage.
Fig. 5A1-1
Attachments for Hand Grease Gun KH-120
Table 5A3
Note
Reference
Tg0699-PM-D2
3. Maintenance Spots
3. Maintenance Spots
3.1 General View
Fig. 5A5 Front View
Fig. 5A4 Top View
0207-001 Chapter 3 1-6
Blower Unit (Vacuum Source)
Squeegee Head Section
Screen Holder Section
R Conveyor Section
L Conveyor Section
Table Section
P.E.C. Recognition Section
P.C.B. Chuck Section
