Part 1
3. Operation Panel
3.1 Operation of the Keys
3.1.1 Turning the Power On and Off
POWER ON button
If the main circuit breaker is turned on, press the POWER ON button to turn on
the machine power.
EMERGENCY STOP and POWER OFF buttons
Press the EMERGENCY STOP button followed by the POWER OFF button to
turn off the machine power.

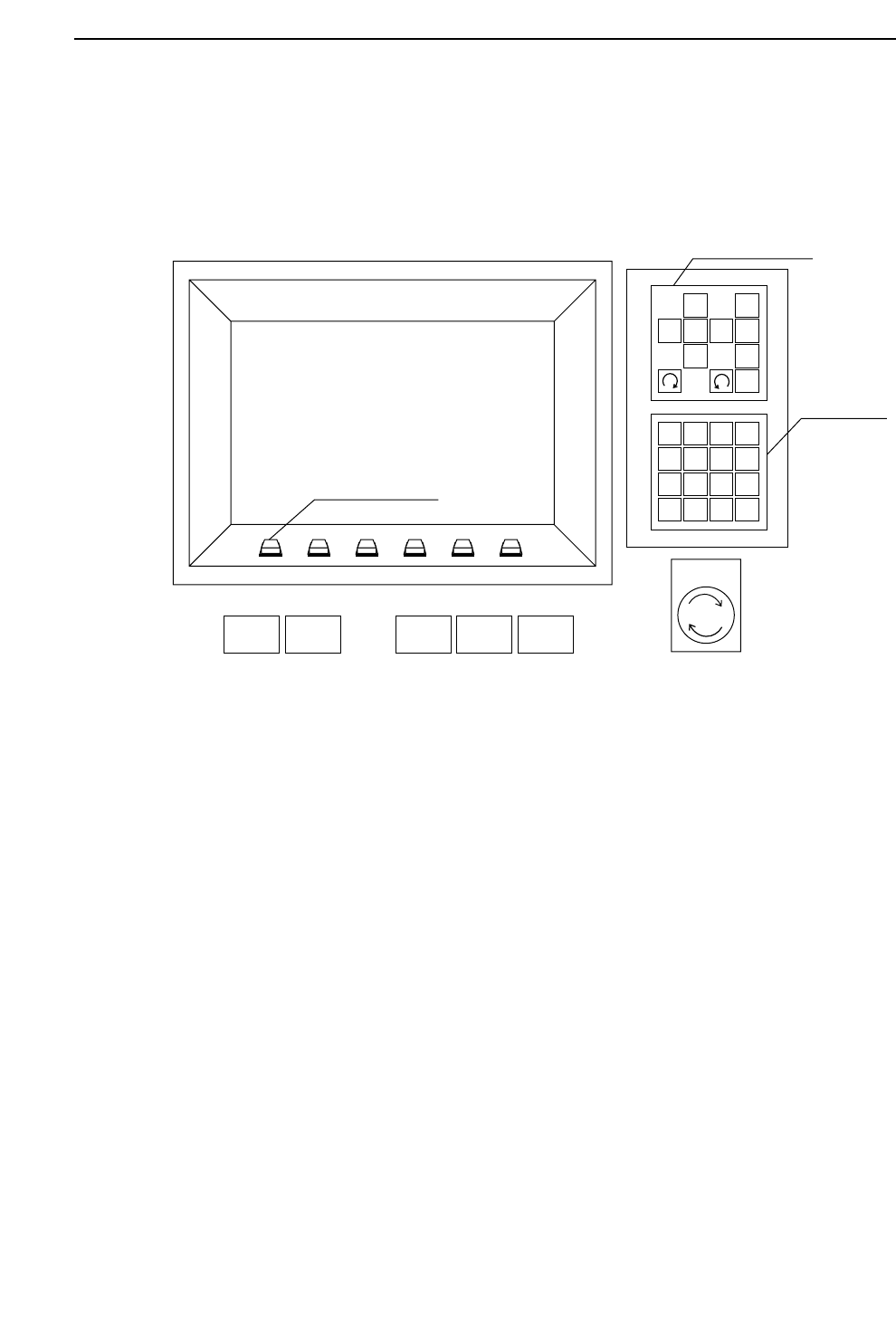

3.1.2 Starting Operation
START button
The START button flashes when all the conditions to start operation are met.
Machine operation or zeroing starts when this button is pressed.

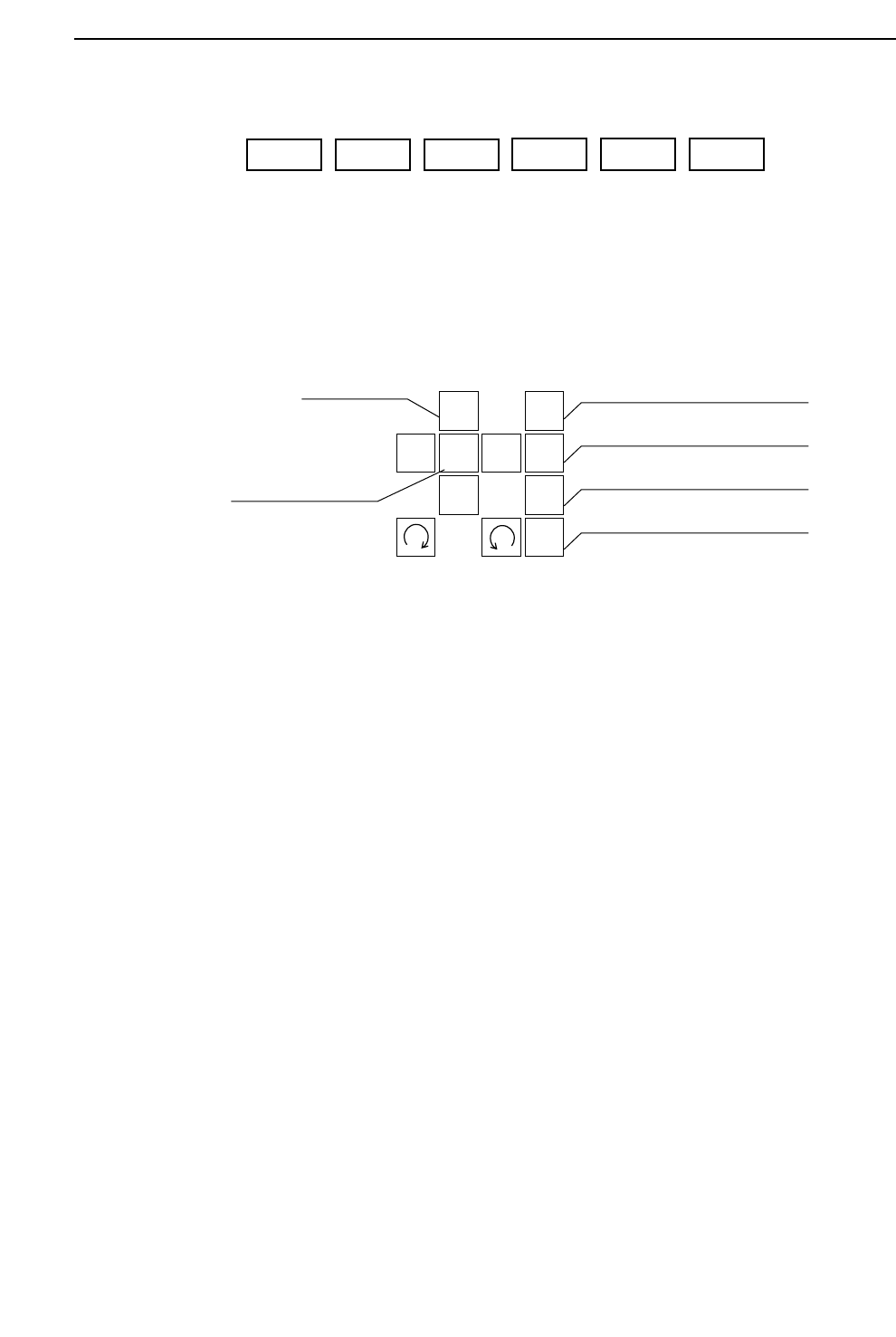

1
2
3
4
56
7
8
9
G
#
–
F
1
2
3
4
✽
B
S
C
R
0
↑
←
↓
→
POWER
OFF
CYCLE
STOP
POWER
ON
START RESET
Inching Keys
Numerical
Keypad
Emergency
Stop
Function Keys
1 – 11
Chapter 3 Operation Panel
GL-541E Operation
Version 2.0
Part 1
1 – 12
3.1.3 Interrupting Auto Operation
CYCLE STOP button
If the CYCLE STOP button is pressed while the machine is operating in the
automatic mode, automatic operation stops after the current sequence is
completed and the system then waits for the START button to be pressed.
3.1.4 Cancelling the Board Wait Status
CYCLE STOP button
If the main conveyor enters the board wait mode during the loading cycle, this
mode can be cancelled by pressing the CYCLE STOP button.
3.1.5 Clearing Alarms
RESET button
The RESET button flashes when an alarm has occurred.
Press the RESET button to clear the alarm display and connect the 200 V power
supply.
3.1.6 Carrying out the Reset-Start Operation
RESET button + POWER ON button
The memory contents need to be cleared after the ROM chips are replaced, an OS
error occurs, or the axes move abnormally. Clear the machine memory (Proper,
status and program data will all be cleared) by turning off the machine power
and then turning it back on while holding down the RESET button.
This is known as the reset-start operation.
3.1.7 Stopping the Machine Instantaneously
EMERGENCY STOP button
The 200 V power supply to the machine is cut off when this button is pressed.
Press this button to stop the machine instantaneously in emergencies.
GL-541E OperationVersion 2.0
Chapter 3 Operation Panel
Chapter 3 Operation Panel
Part 1
3.1.8 Selecting and Executing Commands
Press the function keys F1 to F6 to execute the commands displayed on the CRT.
Note: If an error occurs which causes an emergency stop, the function keys displayed
on the initial display are disabled.
3.1.9 Moving Axes Manually (Inching)
The operator can elect to move the machine axes. This operation is called
inching. The GL-541E has four types of axes: X, Y, θ, and Z.
• Inching keys
Press an arrow key to carry out inching of the selected axis.
• Rapid inching key
Press this key and an inching key simultaneously to inch the axis at a rapid
rate.
• Inching axis selection keys
Inching can be carried out at any time except during machine operation or
Proper data measurement. However, only the axes selected by the inching
axis selection keys can be inched; it is not possible to inch all of the axes at
the same time.
The axes selected by each of the selection keys and the action of the inching
keys is described below.
1
2
3
4
F
↑
←
↓
→
Inching axis selection key 1
Inching axis selection key 2
Inching axis selection key 3
Inching axis selection key 4
Inching keys
Rapid inching key
F1 F2 F3
F4 F5 F6
1 – 13
GL-541E Operation
Version 2.0
