Part T wo Automatic Operation and Programming
Part 1
1 – 20
3.2.2 Details of the Second Display Area (Machine Error Display)
Machine alarms are displayed here when something abnormal has occurred.
Under normal operating conditions nothing is displayed.
The meaning of each of the alarms is as follows.
(a) Displays the present status of the machine.
(b) Alarms are displayed here.
Refer to Part 6, “Errors and Countermeasures”, for error details.
The status of PCB loading is also displayed.
PCB Loading: Indicates that the main conveyor is waiting for a board.
GL-541E Operation
Chapter 3 Operation Panel
Version 2.0
Part Two
Automatic Operation and Programming
Part 2
2 – 1
Version 2.0
Chapter 1 Operation
1. Operation
1.1 Starting Operation
Preparation for starting automatic operation is explained below.
Procedure:
(1) Set the appropriate glue temperature for the glue being used on the
temperature control panel.
(2) Create a production program and transmit it to the GL-541E.
Refer to the F4G Tutorial Manual for details of how to create a program.
(3) Set the following items according to the size of the board being produced:
• Conveyor width
• Back up pin position
• Reference pin position
Before changing the conveyor width, check that the back up pins will not collide
with the conveyor.

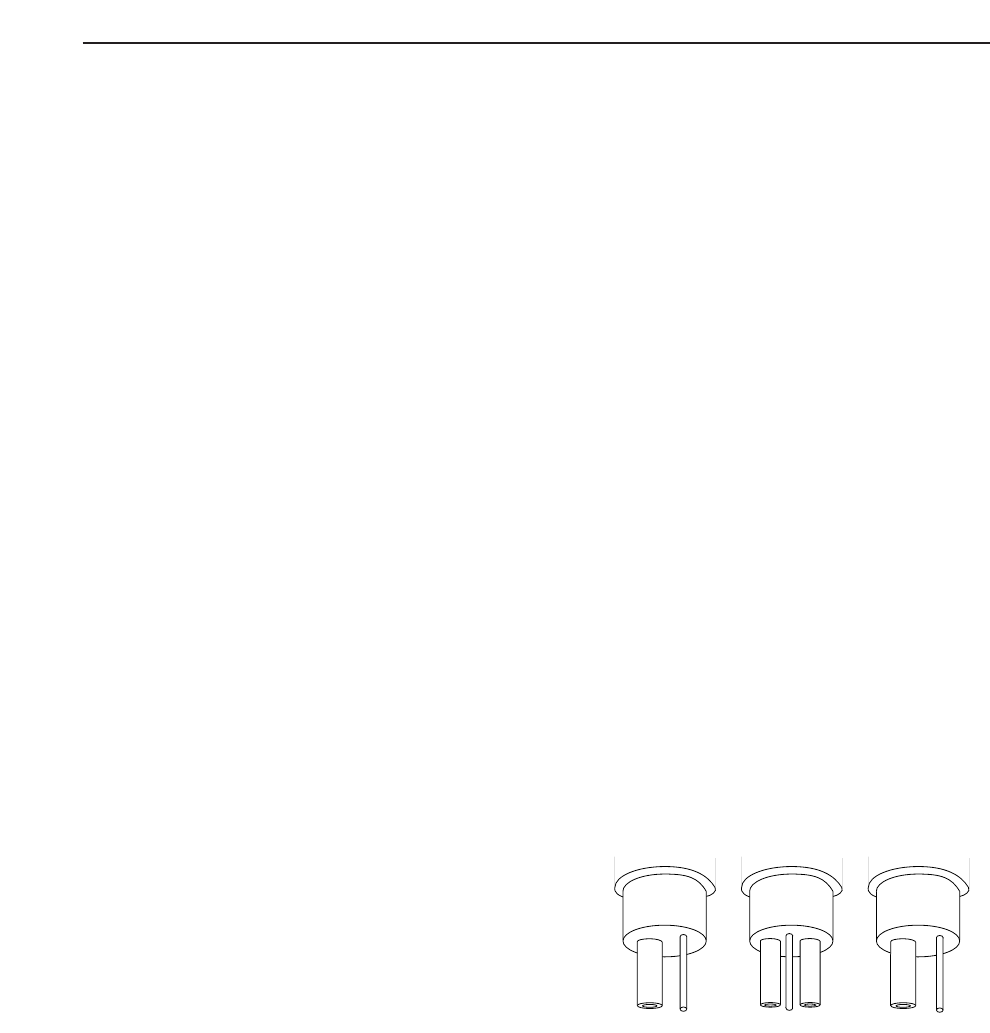

(4) Install the syringes after replenishing the glue and selecting needle types. As shown
below, select either “Single”, designating one point gluing, or “Twin” designating
two point gluing, and save the updated Proper data.
Proper Data
138.Needle_Z1 = Single Twin
139.Needle_Z2 = Single Twin
140.Needle_Z3 = Single Twin
After the settings have been made,
transmit the Proper data to the
machine.
(5) Measure the needle offset.
Automatic needle offset is a machine function that offsets slight bends or
misalignments in the needles. Press the following:
[SET] -> [MANUAL] -> [NEEDLE] -> [Z1] (Z2), (Z3) -> [OK] (RETURN)
-> [DEFAULT POS] (NOW POS)
Z3 Z2 Z1
