3.4.4 Maneuvering Radii for Component Trolley/DX Changeover Tables
3

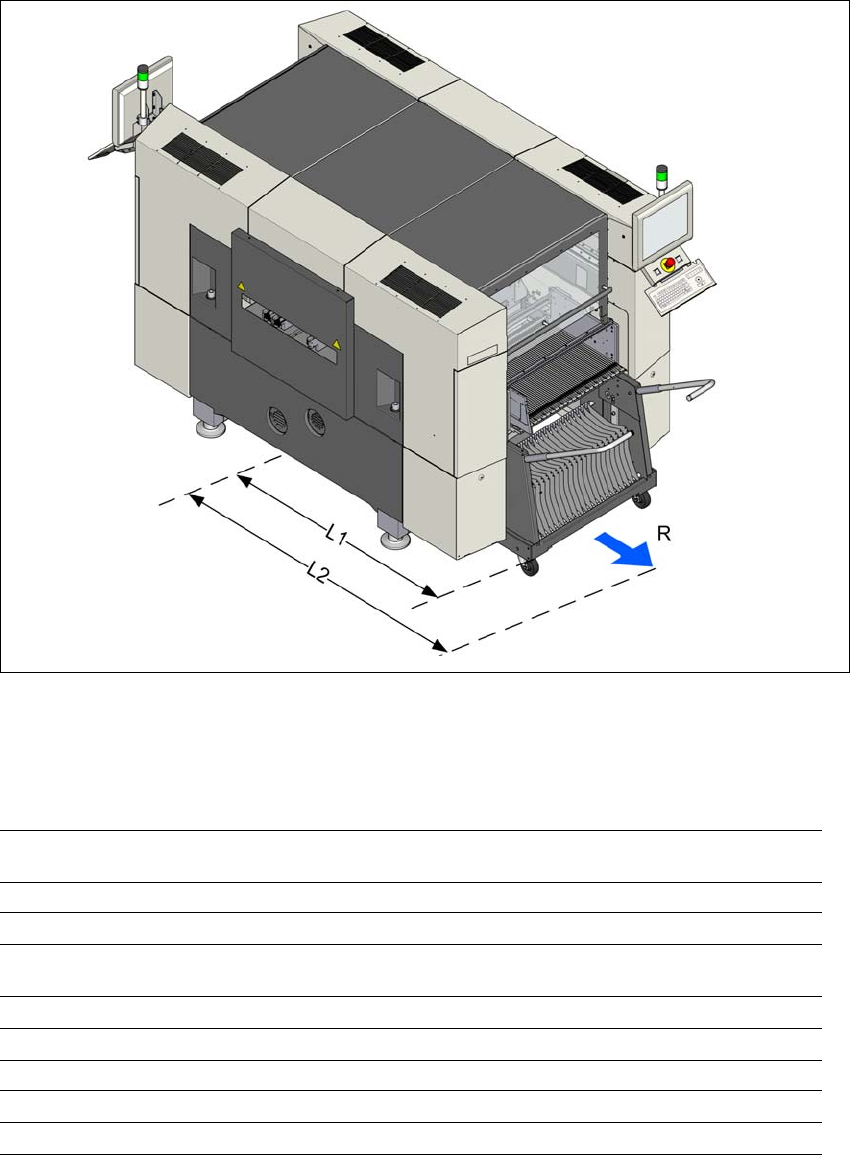

Fig. 3.4 - 4 Example: Maneuvering radii for the component trolleys in SX1/SX2 machines
The maneuvering radii R for component trolleys/DX changeover tables are:
3
Component trolley/DX
changeover table
Location 1 (outside) Location 2 (inside)
Maneuvering distance R
Handles folded out 2950 mm 2825 mm
Distance L1: machine center to outer edge of component
trolley/DX changeover table
Handles folded in 1300 mm 1175 mm
Handles folded out 1750 mm 1625 mm
Distance L2: Machine center to wall
Handles folded in 2060 mm 1935 mm
Handles folded out 2950 mm 2825 mm
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.4 Dimensions and weight From software version SC.706.xx Version 06/2012 EN
112
3.4.5 Center of gravity
3.4.5.1 SX1/SX2 machine center of gravity
3

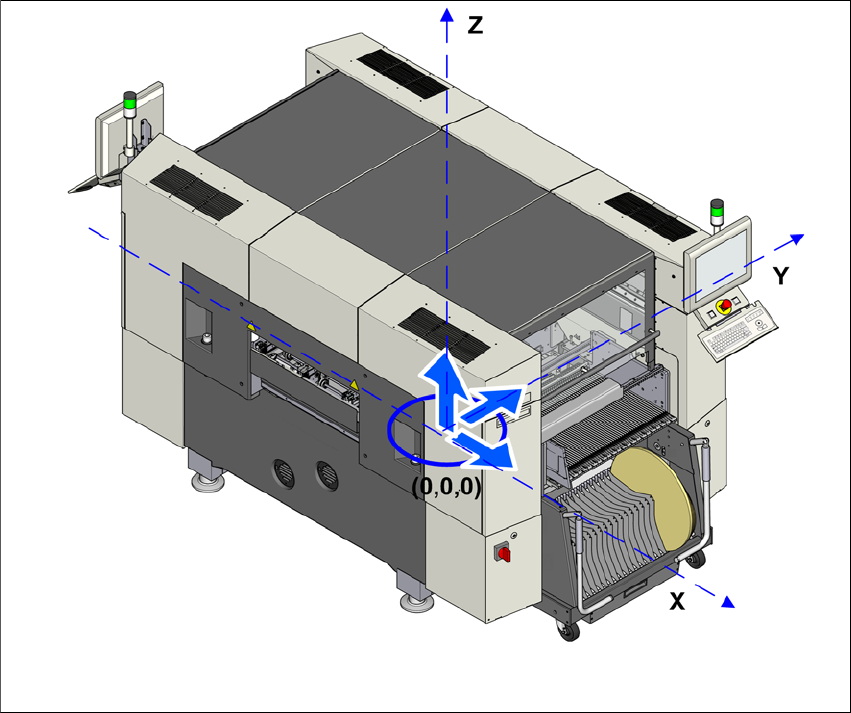

Fig. 3.4 - 5 Center of gravity for SX1/SX2 machines in millimeters
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 738.5 mm
These center of gravity coordinates relate to placement machines with a PCB conveyor height of
900 mm.
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.4 Dimensions and weight
113
3.4.5.2 DX1/DX2 machine center of gravity
3

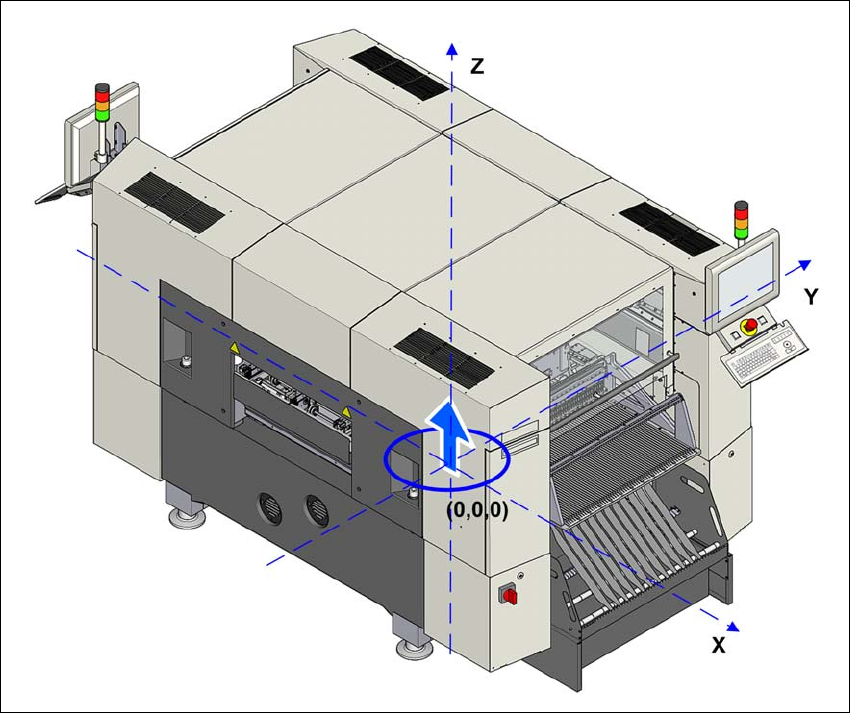

Fig. 3.4 - 6 Center of gravity for DX1/DX2 machines in millimeters
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 738.5 mm
These center of gravity coordinates relate to placement machines with a PCB conveyor height of
900 mm.
