User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels 45 2.2.3 W arning labels on the gantries Fig. 2.2 - 3 Warning label W202 on the gantries (exa…
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.2 Warning labels From software version SC.706.xx Version 06/2012 EN
44
2.2.1.3 Warning label W204
2
W204 in fig. 2.2 - 1, page 41 and 2.2 - 2, page 42, item no. 03009343-01 (quantity per machine: 4)
2.2.2 Warning label 205
Warning labels on tape cutter and used tape chute
2
W205 in fig. 2.2 - 4, page 47 and 2.2 - 5, page 48, item no. 03009344-01 (quantity per machine: 4)
2.2.2.1 Warning label W210
2
W210 in fig. 2.2 - 1, page 41 and 2.2 - 2, page 42, item no. 03009350-01 (quantity per machine: 2)
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is
switched off
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
45
2.2.3 Warning labels on the gantries

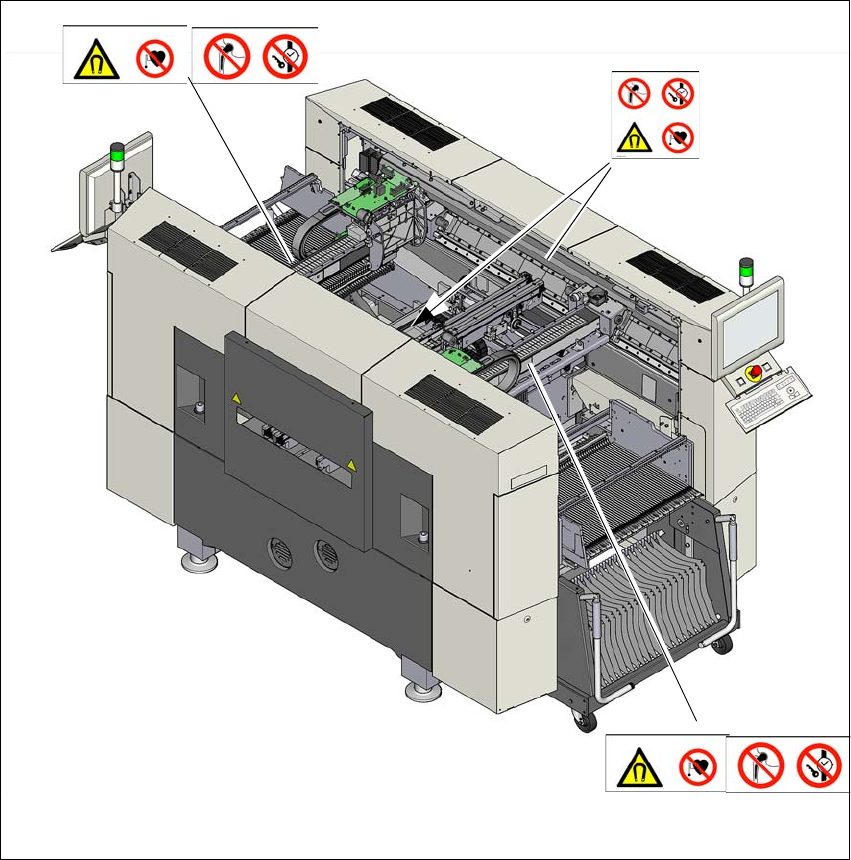

Fig. 2.2 - 3 Warning label W202 on the gantries (example of SX2)
2
W202, item no. 03009341-01
W202, item no. 03009341-01
W 202
W 202
W 202
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.2 Warning labels From software version SC.706.xx Version 06/2012 EN
46
2.2.3.1 Warning label 202
2
W202, in fig. 2.2 - 3, page 45, item no. 03009341-01
(quantity per SX1 machine: 2, SX2 machine: 2)
W202, in fig. 2.2 - 3
, page 45, item no. 03009341-01
(quantity per SX1 machine: 1, SX2 machine: 2)
WARNING 2
Powerful permanent magnetic fields inside the machine
DANGER 2
Risk of death for persons with active implants (e.g. pacemakers, insulin pumps, defibrillators).
2
WARNING
Danger of crushing for persons with passive metal implants (e.g. plates, screws).
Do not reach into the machine or bend towards it when the protective covers are open.
Do not bring any metal objects into the area.
