3 Technical data and assemblies Us er Manual SIPLACE SX1/SX2/DX1/DX2 3.9 Vision system From software version SC.706.xx Version 06/2012 EN 156 3.9.4 S t ationary component camera P&P , type 36 3.9.4.1 Structure 3 Fig.…
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 Vision system
155
3.9.3 Stationary P&P component camera, type 33, 55 x 45, digital
Item no. 119818-xx Stationary camera, type 33
3.9.3.1 Structure
3

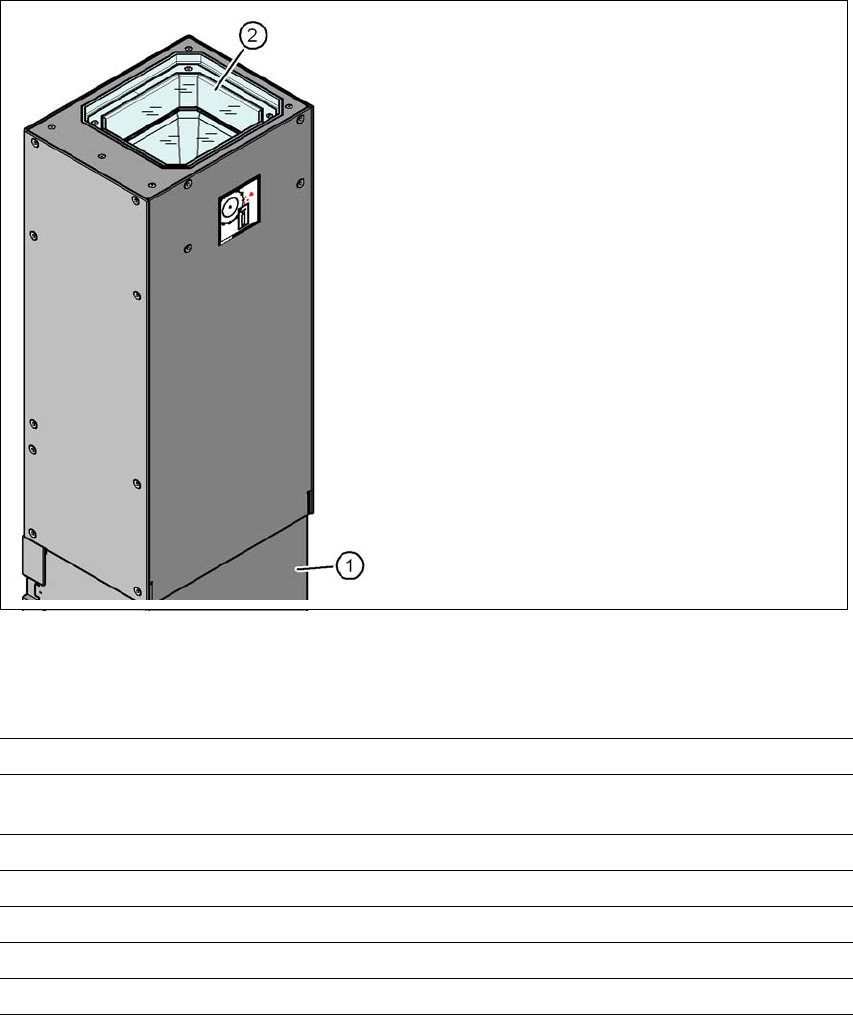

Fig. 3.9 - 2 Structure for the stationary P&P component camera, type 33, 55 x 45, digital
3.9.3.2 Technical data
3
(1) Camera housing with integral camera
and camera amplifier
(2) Glass plate - illumination and optics un-
derneath
Component dimensions 1.0 mm x 0.5 mm to 55 mm x 45 mm
Component range 0402, MELF, SO, PLCC, QFP, electrolytic capacitors, BGA
Min. lead pitch 0.3 mm
Min. lead width 0.15 mm
Min. ball pitch 0.35 mm
Min. ball diameter 0.2 mm
Field of vision 65 mm x 50 mm
Illumination type Front-illumination (6 levels, programmable as required)
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.9 Vision system From software version SC.706.xx Version 06/2012 EN
156
3.9.4 Stationary component camera P&P, type 36
3.9.4.1 Structure
3

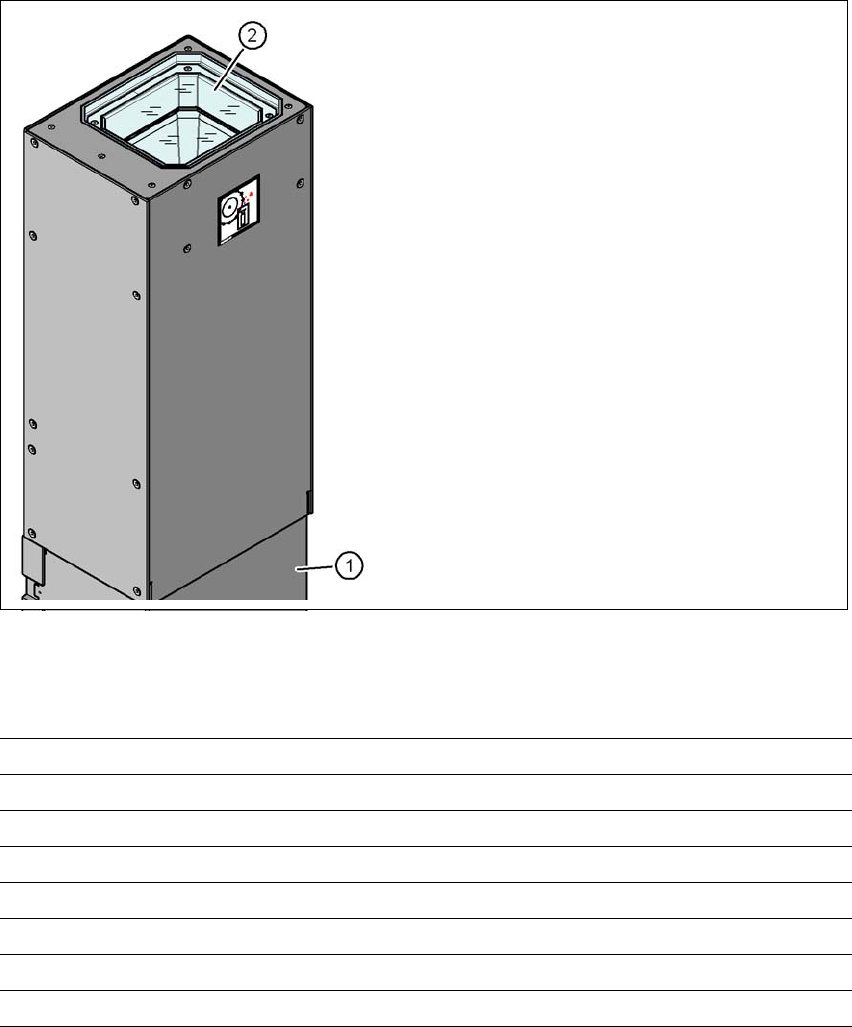

Fig. 3.9 - 3 Structure of stationary P&P component camera, type 36, 55 x 45, digital
3.9.4.2 Technical data
3
3
(1) Camera housing with integral camera
and camera amplifier
(2) Glass plate - illumination and optics un-
derneath
Component dimensions 1.6 mm x 0.8 mm to 32 mm x 32 mm
Component range 0603 to SO, PLCC, QFP, BGA, special components, bare dies,
flip-chips
Min. lead pitch 0.4 mm
Min. lead width 0.24 mm
Min. ball pitch 0.56 mm
Min. ball diameter 0.32 mm
Illumination type Front-illumination (6 levels, programmable as required)
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.9 Vision system
157
3.9.5 PCB camera, type 34, digital
3.9.5.1 Structure
3

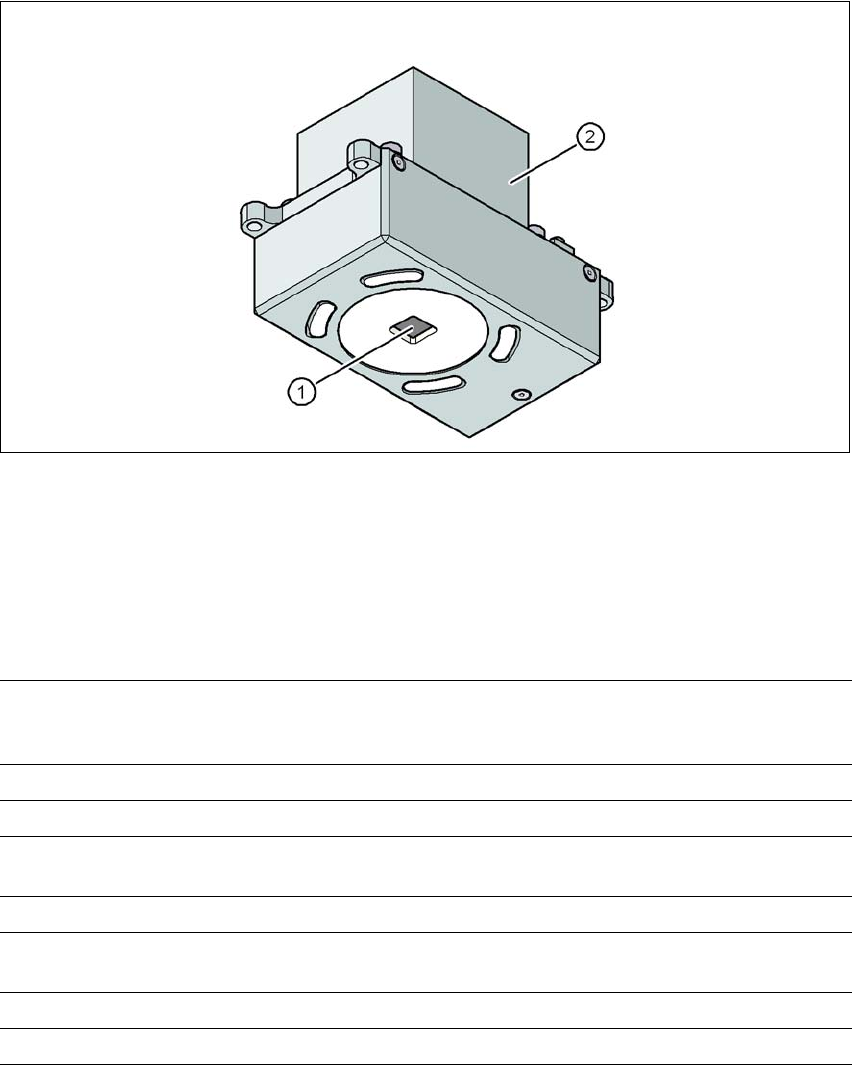

Fig. 3.9 - 4 PCB camera, type 34, digital
(1) PCB camera lens and illumination
(2) Camera amplifier
3.9.5.2 Technical data
3
PCB fiducials Up to 3 (subpanels and multiple panels)
Up to 6 for the Long board option (Optional PCB fiducials are
output by the optimization).
Local fiducials Up to 2 per PCB (may be of different type)
Library memory Up to 255 fiducial types per subpanel
Image analysis Edge detection method (Singular feature) based on grayscale
values
Illumination type Front-illumination (3 levels, programmable as required)
Detection time per fiducial
/Bad fiducial
20 ms - 200 ms
Field of vision 5.78 mm x 5.78 mm
Distance from the focus plane 28 mm
