5 Working with the machine User Manual SIPLACE SX1/SX2/DX1/DX2
5.10 Setting up the feeder modules From software version SC.706.xx Version 06/2012 EN
286
5.10.4.4 Tape support for 8 mm X tape feeder module
5

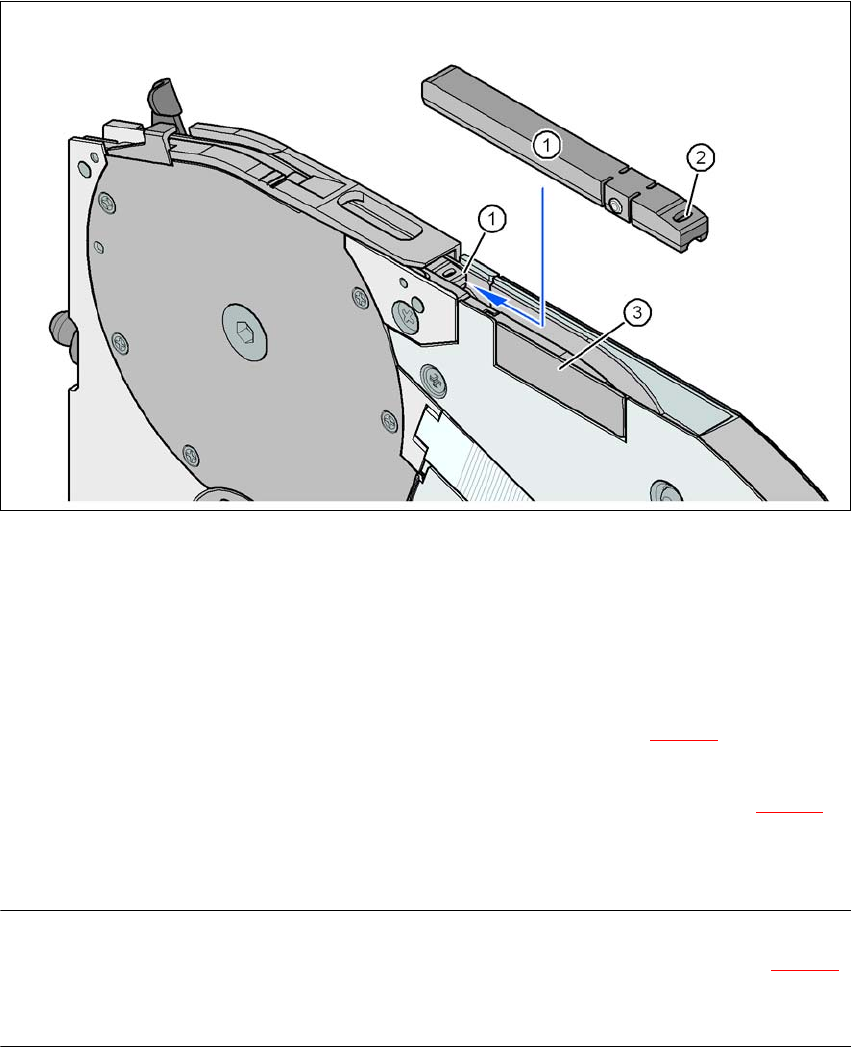

Fig. 5.10 - 8 8 mm X feeder module - tape support and splice sensor
(1) Tape support, removable
(2) Oval opening in the tape support
(3) Splice sensor installation location
The 8 mm X feeder module is equipped with a tape support (item 1 in fig. 5.10 - 8
). It can easily
be removed if necessary.
Insert the tang of a watchmaker's screwdriver into the oval opening (item 2 in fig. 5.10 - 8) in
the tape support and pull the tape support out against the direction of travel of the tape.
When you insert the tape support, make sure that it engages in its desired position.
PLEASE NOTE 5
For all components size 0402 and smaller, always insert the tape support (item 1 in fig. 5.10 - 8
)
into the 8 mm X feeder module. This will give you a constant Z pick up height and will minimize
the time needed to correct the pick up heights.
User Manual SIPLACE SX1/SX2/DX1/DX2 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.10 Setting up the feeder modules
287
5.10.4.5 Splice sensors for X tape feeder modules
Splice sensors can be retrofitted to the X tape feeder modules. There are two versions of the sen-
sor:
Splice sensor for 8 mm and 12 mm X tape feeder modules
Splice sensor for 16 mm to 88 mm X tape feeder modules 5
The splice sensor is installed at the position indicated by item 3 in fig. 5.10 - 8
, page 286.
Tape feeder modules with a splice sensor already installed can also be supplied (see section
3.10.2
, from page 164).
5.10.5 Configuring components on the 2x8 mm tape feeder module
The operation and configuration of 2x8 mm feeder modules is described in the "Tape Feeder Mod-
ule 2x8 mm X / Smart Feeder 12 mm X /16 mm X Job Guide".
Item number, German 00197216-01
Item number, English 00197217-01
5.10.6 Configuring components on the SIPLACE smart feeder
The operation and configuration of the SIPLACE smart feeder is described in the "Tape Feeder
Module 2x8 mm X / Smart Feeder 12 mm X /16 mm X Job Guide".
Item number, German 00197216-01
Item number, English 00197217-01
5 Working with the machine User Manual SIPLACE SX1/SX2/DX1/DX2
5.11 Observing displays on the X feeder module From software version SC.706.xx Version 06/2012 EN
288
5.11 Observing displays on the X feeder module
5.11.1 Feeder module with LCD display
The X feeder modules (8 mm to 88 mm) have a multicolored status display to indicate operating
states (item 6 in fig. 5.11 - 1
) for signaling the operating
statuses and an LCD display (item 1 in fig.
5.11 - 1
).
5

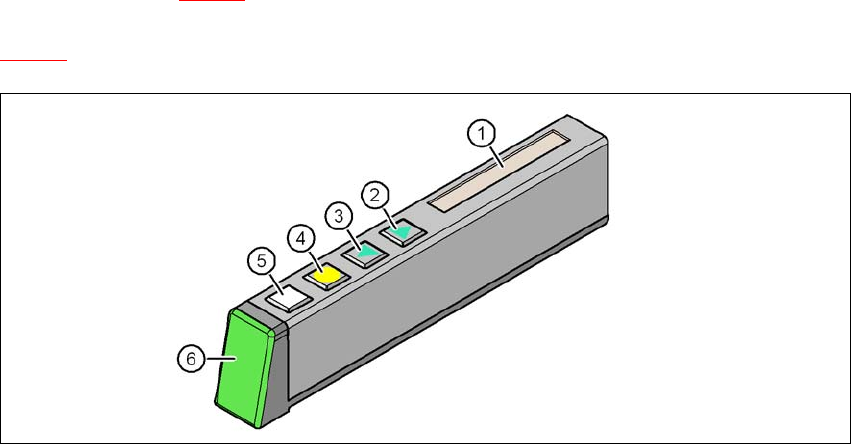

Fig. 5.11 - 1 Buttons, LCD and status displays on the X feeder module
(1) LCD display
(2) FORWARD button
(3) BACK button
(4) FOIL button
(5) SET button
(6) Status display, multicolor
