User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
47
2.2.3.2 Warning label W205 on the tape cutter
2

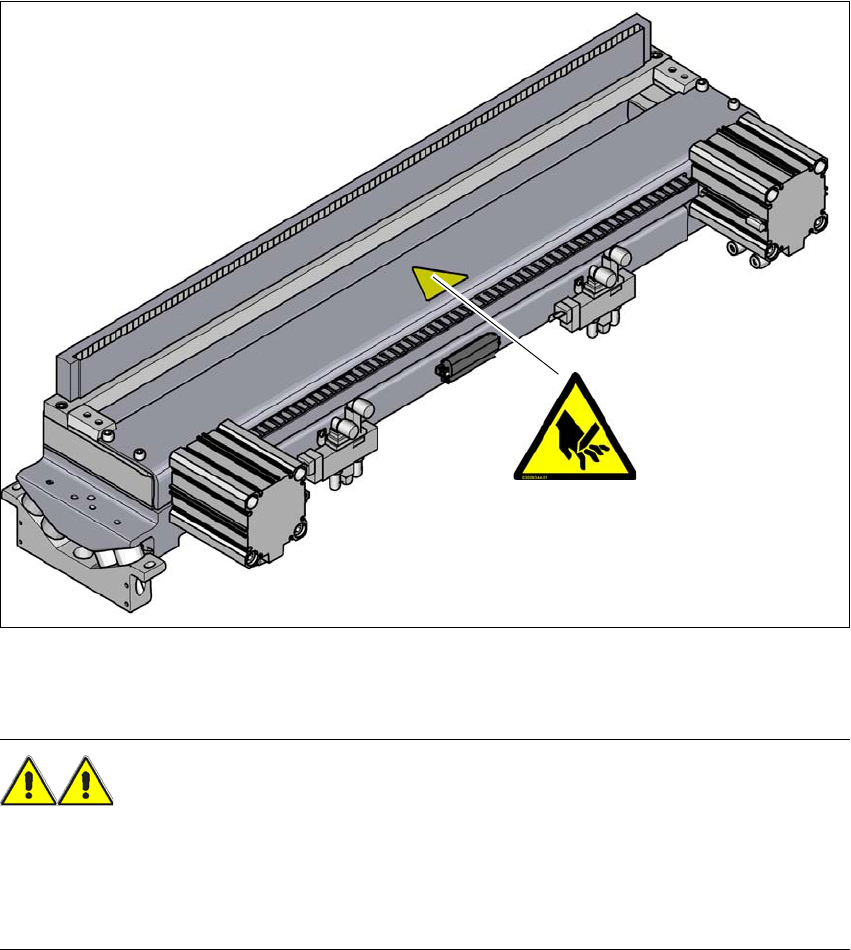

Fig. 2.2 - 4 Warning label W205 on the top of the tape cutter
W205, item no. 03009344-01
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains supply
and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2
W205
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.2 Warning labels From software version SC.706.xx Version 06/2012 EN
48
2.2.3.3 Warning label W205 on the used tape chute
2

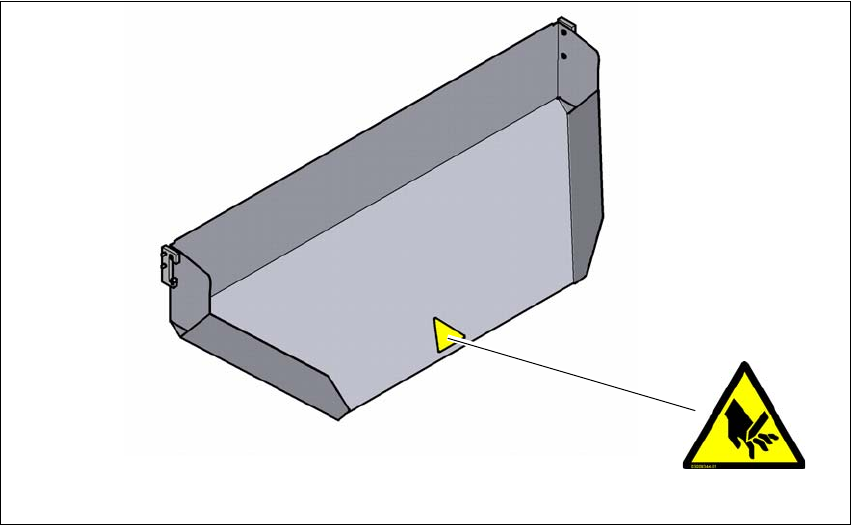

Fig. 2.2 - 5 Warning label W205 on the used tape chute
W205, item no. 03009344-01
W205
User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
49
2.2.4 Warning labels on the power supply unit and transformer
2
W206 in fig. 2.2 - 6, page 49 item no. 03009345-01 (quantity per machine: 2).
W206 in fig. 2.2 - 8
, page 51 item no. 03009345-01 (quantity per machine: 2).

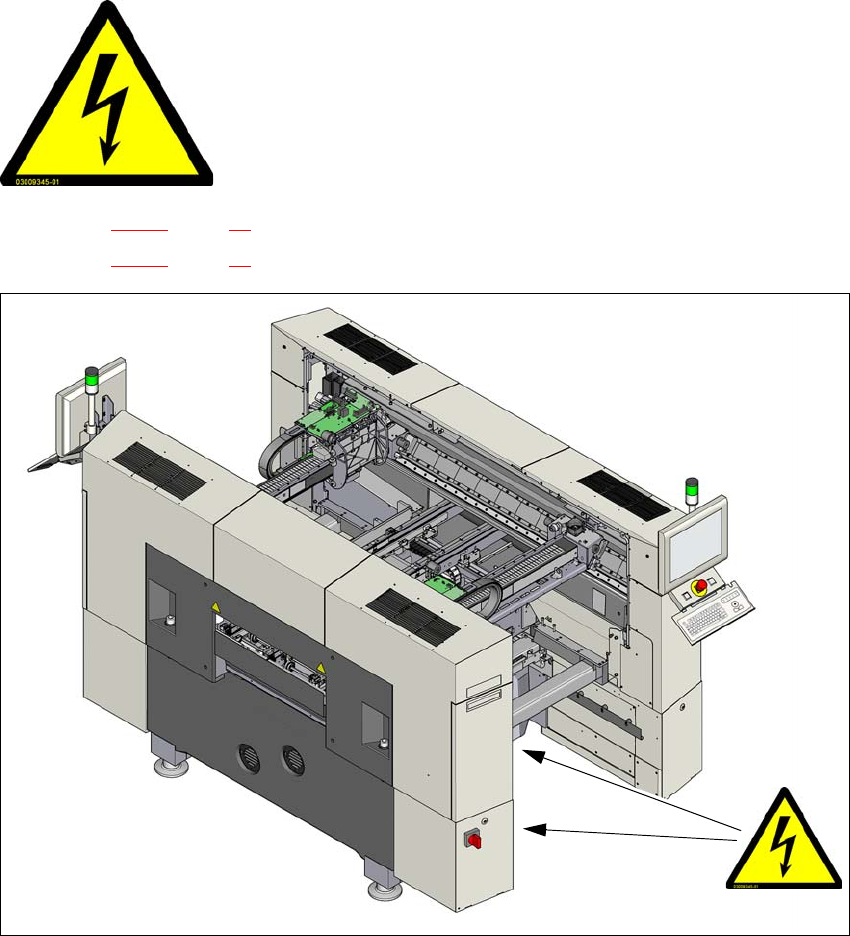

Fig. 2.2 - 6 Warning label W206, cover of transformer and power supply unit (example of SX2)
W206, in front of the transformer unit cover
W206, on the side cover to the power supply unit
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W206
