3 Technical data and assemblies Us er Manual SIPLACE SX1/SX2/DX1/DX2 3.11 Component trolley for SIPLACE SX1/SX2 From software version SC.706.xx Version 06/2012 EN 190 3.1 1.2 Description In the sta ndard version, the t a…
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.11 Component trolley for SIPLACE SX1/SX2
189
3

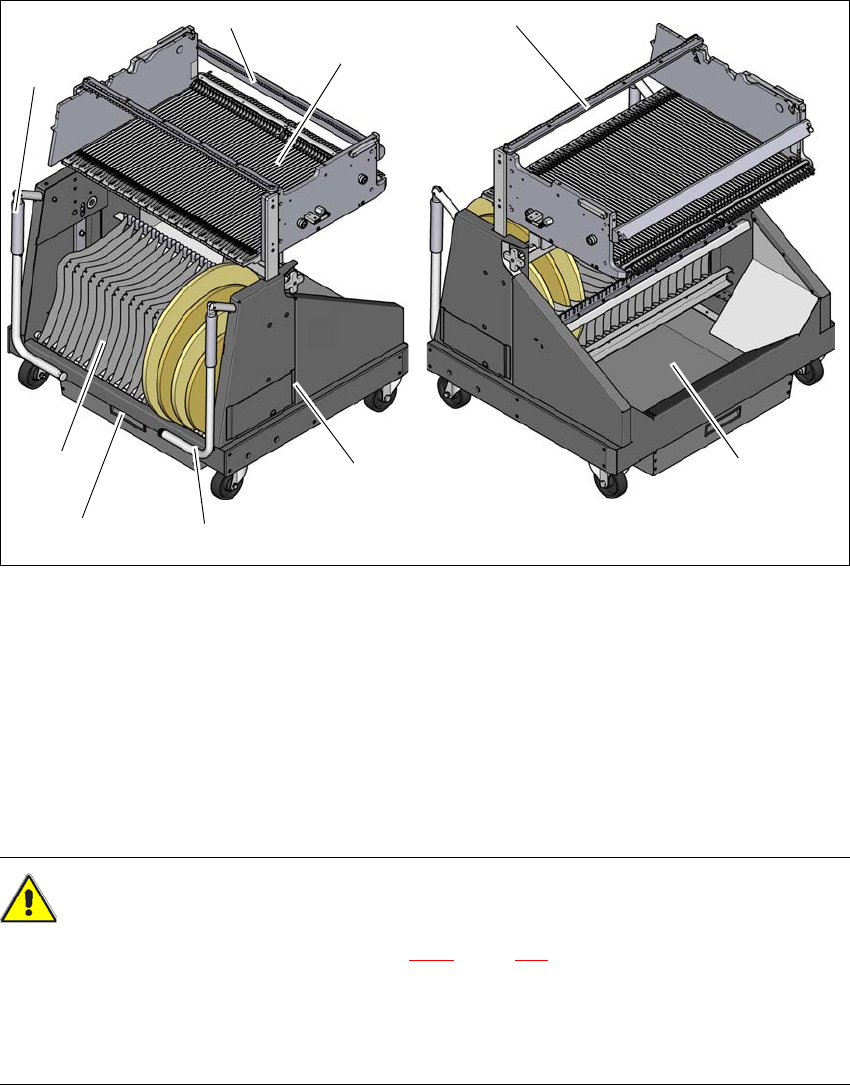

Fig. 3.11 - 3 Component trolley, SIPLACE SX1/SX2 with 60 tracks, front and rear view
(1) Chassis
(2) Changeover table
(3) Tape container
(4) Waste tape container
(5) Handle
(6) Hand guard
CAUTION 3
Observe the safety instructions in section 5.8.2, page 271, when you pull the tape reject bin
out of the component trolley.
– The handles may only be used to push the component trolley.
Use a fork-lift if you want to transport the component trolley or lift it off the pallet.
(1)
(2)
(5)
(4)
(3)
(5)
(4)
(6)
(6)
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.11 Component trolley for SIPLACE SX1/SX2 From software version SC.706.xx Version 06/2012 EN
190
3.11.2 Description
In the standard version, the tape reel container holds tape reels up to a size of 17" (432 mm).
There are two 5 mm wide gaps on the left and right, between the tape container and the compo-
nent trolley, for holding setup lists.
The pullout waste tape container can be found beneath the chassis. The cut waste tape travel
down a chute into the waste tape container, which must be emptied as it fills up.
The handles can be folded up or down.
PLEASE NOTE 3
All component trolleys or the waffle pack changer must be docked onto the
machine in order to operate it. Fill any free locations with dummy feeder modules as described in
section 2.7.5.1, page 79.
3.11.3 Technical data
3
Component trolley dimensions
Component trolley with 60 tracks (length x
width)
Component trolley with 30 tracks (length x
width)
760 mm x 864 mm
760 mm x 471 mm
Height with folded-up handles
900 mm (PCB transport height:
930 mm (PCB transport height:
950 mm (PCB transport height:
934 mm
964 mm
984 mm
Weight of component trolley with 60 tracks
Without feeder modules
With feeder modules (fully configured)
Weight of component trolley with 30 tracks
Without feeder modules
With feeder modules (fully configured)
104 kg
266 kg
76 kg
157 kg
Tape reel diameter
standard
maximum
to 432 mm (17“)
483 mm (19“)
Feeder locations
Component trolley with 60 tracks
Component trolley with 30 tracks
60 feeders with 8 mm
30 feeders with 8 mm
Component trolley changeover time < 1 minute
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.11 Component trolley for SIPLACE SX1/SX2
191
3.11.4 Fiducials on the component trolley
3
Fig. 3.11 - 4 Fiducials on the component trolley
(1) Fiducials on the component trolley
Once the SIPLACE component trolley has been docked in, the machine measures the
fiducials on the component trolley.
For components with an edge length of less than 0.5 mm, i.e. 0402 components and smaller, the
position of the component is determined with the tape pocket before the first component is picked
up.
(1)
