3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.6 Placement head From software version SC.706.xx Version 06/2012 EN
122
3.6.1.3 Technical data with component camera, type 41
3
3.6.1.4 Sensor for the component reject bin
PLEASE NOTE 3
When using a SpeedStar we recommend that you install the optional sensor for the component
reject bin. (See also section 6.6, page 350)
Component range
a
a) Please note that the component range that can be placed is also affected by the pad geometry, the customer-spe-
cific standards and the packaging tolerances.
01005 to 2220, Melf, SOT, SOD,
Bare-Die, Flip-Chip
component specification
max. height
min. lead pitch
min. lead width
min. ball pitch
min. ball diameter
min. dimensions
max. dimensions
max. weight
4 mm
0.08 mm
0,03 mm
0,10 mm
0,05 mm
0.12 mm x 0.12 mm
6 mm x 6 mm
1 g
Programmable set-down force, variable increments 1.5 N to 4.5 N
nozzle types 10xx, 11xx, 12xx
X/Y accuracy ± 41 µm/3, ± 55 µm/4
angular accuracy ± 0.5°/3± 0.7°/4
Illumination level 5
possible illumination level settings 256
5
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.6 Placement head
123
3.6.2 SIPLACE MultiStar CPP (SIPLACE SX1/SX2 only)
3

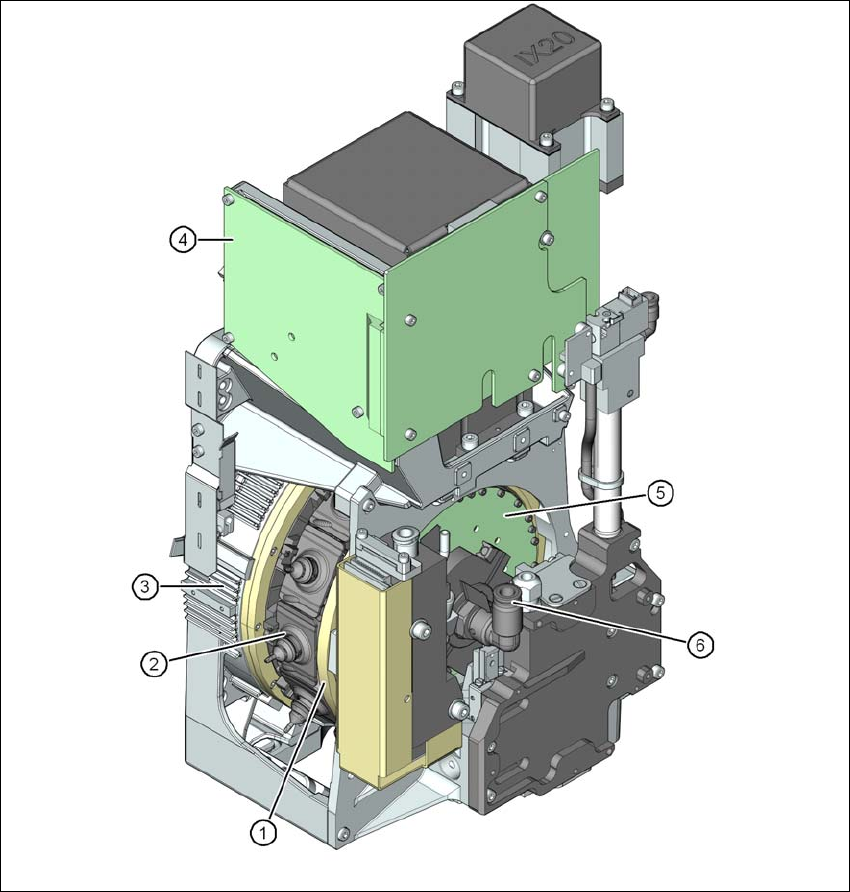

Fig. 3.6 - 3 SIPLACE MultiStar - front view, function groups part 1
(1) Star with 12 segments
(2) Segment with integrated DP drive
(3) Torque motor for star drive
(4) intermediate distributor board
(5) Control board for 12 DP drives
(6) Compressed air connection for the Venturi nozzles in the pickup/placement and holding cir-
cuit
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.6 Placement head From software version SC.706.xx Version 06/2012 EN
124
3
Fig. 3.6 - 4 SIPLACE MultiStar - front view, function groups part 2
(1) C&P component camera, type 30, 27 x 27, digital
(2) Torque motor for star drive
(3) Z drive (linear motor)
(4) Return cylinder
(5) Pressure control valve
