2.5.4 Safety instructions for manual movement of Z axis on TwinStar
CAUTION
DANGER OF CRUSHING AT the TwinStar 2
NEVER move the Z axis down with your hand on the bumper of the return unit. The strong spring
tension of the cylinder moves the bumper back very quickly and could injure your fingers. The
same warning applies to the inside of the TwinStar, when the piston rod moves back to its original
position.
2

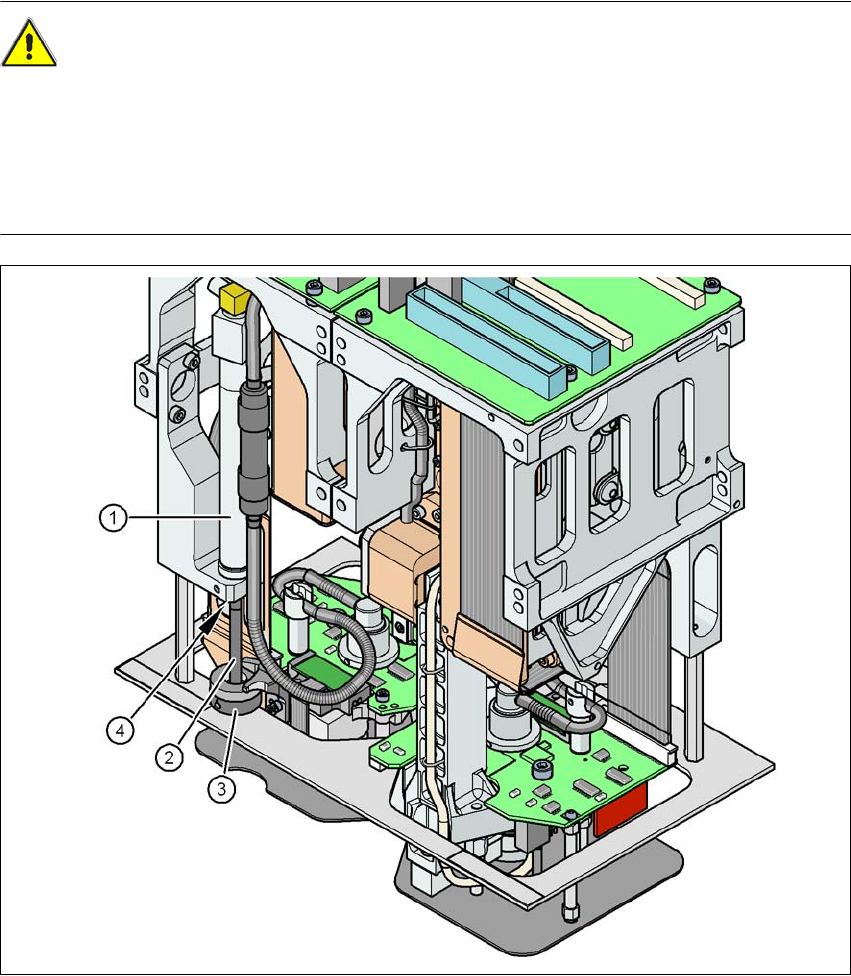

Fig. 2.5 - 2 Risk of crushing by return unit on TwinStar
(1) Return unit, compressed air cylinder
(2) Piston rod
(3) Bumper of the return unit
(4) Risk of crushing to fingers
User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.5 Safety instructions for operating the SX1/SX2/DX1/DX2 machines
61
2.5.5 Safety instructions for the component cameras of the TwinStar during place-
ment head change
WARNING 2
When changing the placement head from TwinStar to Collect&Place, the component cameras
(stationary P&P, type 33, 55 x 45 and type 25, 16 x 16) need to be dismantled from the TwinStar,
otherwise the Collect&Place head will collide with the camera housing.
2.5.6 Note on the ESD safety of the machines
Only use nozzles that are identified as conductive. This is the only way to meet the requirements
for the ESD safety of the machine.
2.5.7 Safety instructions for correct use of the reject bin
Observe the following instructions to avoid risk of collision between the placement head and com-
ponent or the nozzle reject bin:
Make sure, that the reject bin is seated correctly in its mount.
Check that the reject bin does not project over the mount.
PLEASE NOTE 2
A sensor (see section 6.6
, page 350) which indicates the correct position of the reject bin can be
retrofitted for each reject bin.
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.5 Safety instructions for operating the SX1/SX2/DX1/DX2 machines From software version SC.706.xx Version 06/2012 EN
62
2.5.8 Safety instructions for using the nozzle changer
Observe the following instructions to avoid risk of collision between the placement head and the
nozzle changer.
WARNING
Make sure you always install the correct nozzle changer for each placement head, with the nozzle
magazines for that head. There is a risk of head crashes with mixed configurations. 2
WARNING
A lever which projects above the magazine could lead to a placement head crash. You should
therefore make sure that the lever does not protrude over the magazines. 2
