PLEASE NOTE:
To guarantee the handling accuracy of the machine spirit level, make sure that the spirit level is
always placed onto the support plate the same way round when measuring the X and Y directions.4
Adjust the machine by following the instructions below in the order listed:
(1) Align the machine in the Y direction at the fixed and loose bearing sides. The measuring tol-
erance is 0.10 mm.
(2) Align the machine in the X direction to the middle of the gantry. The measuring tolerance is
0.10 mm.
(3) Check the load-bearing strength of the 4 machine feet. The 4 machine feet must touch the
ground and be evenly loaded.
(4) Tighten the machine feet at the clamping screw to a torque of 130 Nm.
(5) Hit the feet with a hammer to check the load-bearing strength of the machine feet.
(6) Use the spirit level to ensure that the machine is precisely aligned.
User Manual SIPLACE SX1/SX2/DX1/DX2 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
233
4
Fig. 4.3 - 9 Measuring points on the machine (example of SX1/SX2)
4 Setting up and commissioning User Manual SIPLACE SX1/SX2/DX1/DX2
4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN
234
4.3.9.1 Aligning the machine with the air cushion transport system
Place the four air cushions from the air cushion transport system under the contact points on
the machine frame.
Raise the machine and align it with respect to the line.
Check the distance from the PCB conveyor system of the adjacent machine. It should be be-
tween 1 mm and 3 mm.
Lower the machine.
4

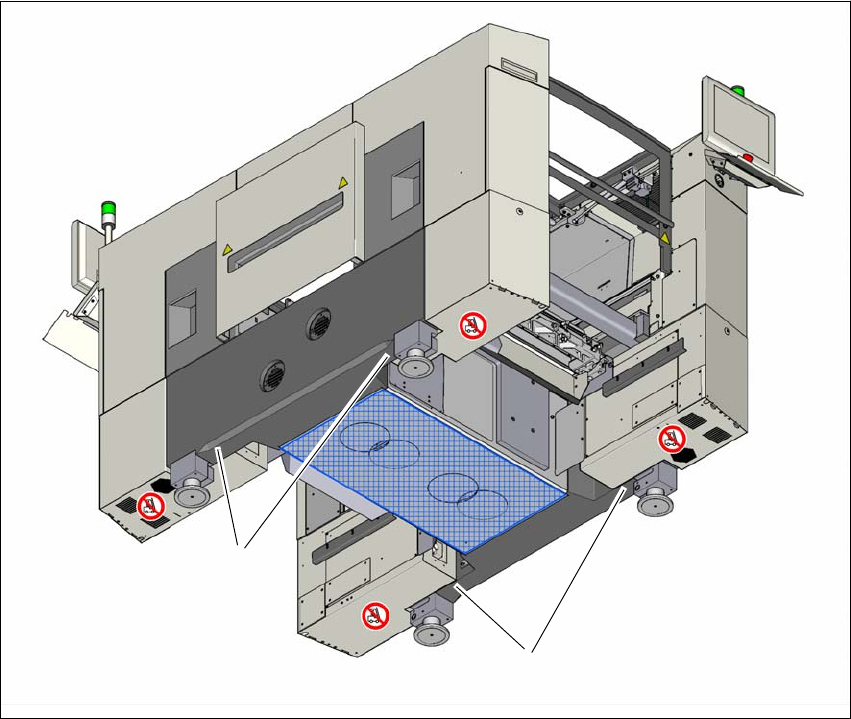

Fig. 4.3 - 10 Contact positions for the air cushion transport system (example of SX1/SX2)
(1) 4 contact points for the air cushion transport system
(1)
(1)
