6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.1 Nozzle changer From software version SC.706.xx Version 06/2012 EN
318
6

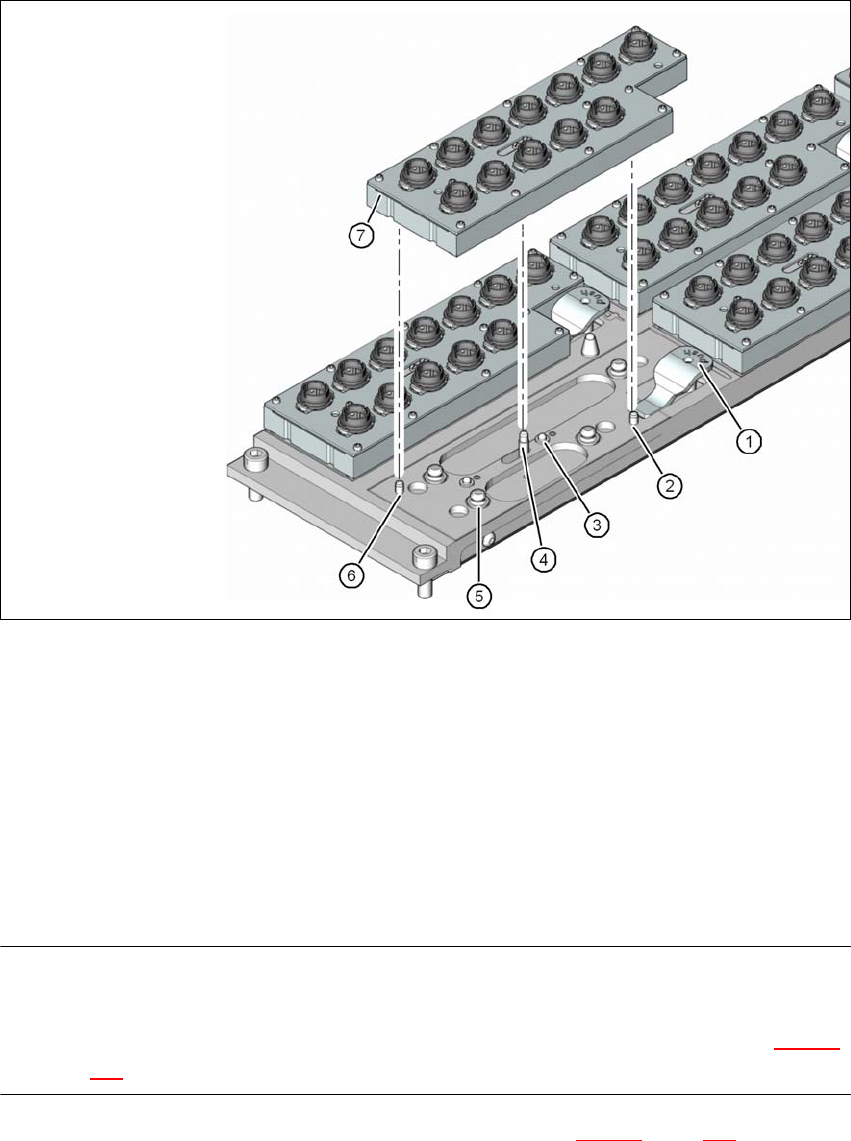

Fig. 6.1 - 11 Changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) Spring pin for triggering the microswitch for magazine recognition and the safety loop
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Locking plate in the "Magazine locked" position
PLEASE NOTE 6
– Move the locking plate into the "Magazine locked" position.
– Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig. 6.1 - 11
,
page 318) slide into the centering holes and slot.
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 11, page 318).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.1 Nozzle changer
319
6.1.2.7 Position detection
Each magazine of the nozzle changer has two fiducials: one for determining the position and one
for determining the angular position.
6

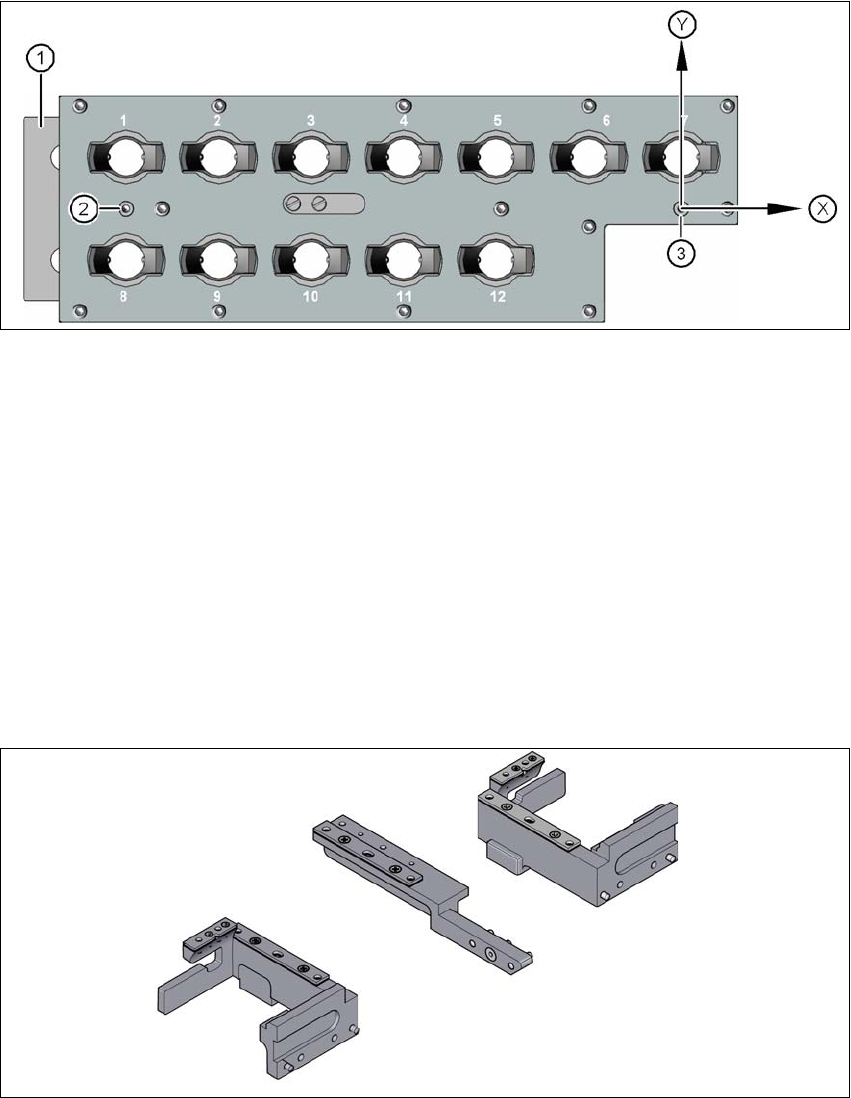

Fig. 6.1 - 12 Nozzle magazine - fiducials for determining the position and angular position
(1) Locking plate in the "Magazine open" position
(2) Fiducial for determining the angular position
(3) Fiducial for determining the position
6.1.2.8 Nozzle changer "row 2" for the SIPLACE MultiStar
Item no. 00519842-xx Nozzle changer CPP for row 2 , SX
The "row 2" nozzle changer may be installed at the following locations:
SX machine: locations 1 and 2
The retrofit package contains an assembly kit.
6
Fig. 6.1 - 13 Assembly kit for the "row 2" nozzle changer
6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.1 Nozzle changer From software version SC.706.xx Version 06/2012 EN
320
6.1.3 Nozzle changer for the SIPLACE TwinStar
Item no. 00519845-xx Nozzle changer TwinHead SX
Item no. 03005191-xx Magazine for 2 nozzles
Item no. 03001807-xx Magazine for 1 nozzle
6

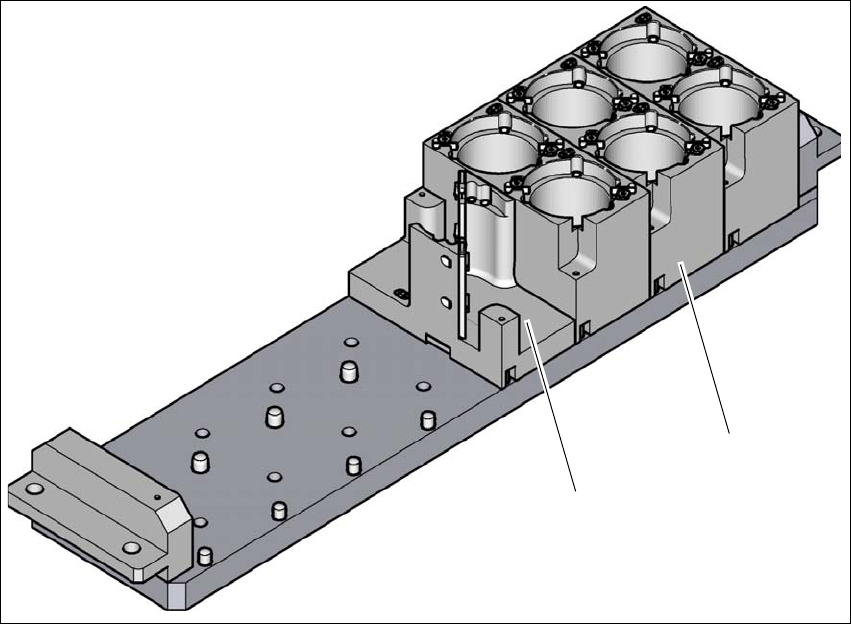

Fig. 6.1 - 14 Nozzle changer for the SIPLACE TwinStar
(1) Magazine for 2 nozzles
(2) Magazine for 1 nozzle
6.1.3.1 Description
As a default, this nozzle changer is fitted with three magazines, each with two nozzle garages and
one additional magazine which has only one garage. Four nozzle magazine spaces are free and
can be set up with magazines holding one or two garages.
There are two different magazine types available: standard magazines and magazines for special
nozzles or grippers. The magazines are seated on a common support. They are centered with two
parallel pins and fixed in place with two countersunk screws.
(1)
(2)
