4.3.7 Machine foot clearances and the stationary PCB conveyor edges
4.3.7.1 Machine foot clearances for the PCB single conveyor
4
Fig. 4.3 - 5 Machine foot clearances for the PCB single conveyor in millimeters
Fixed conveyor side at
maximum right position
a
.
Fixed conveyor side at
maximum left position
a
.
a) The value depends on the position of the fixed side.
All dimensions in millimeters.
4 Setting up and commissioning User Manual SIPLACE SX1/SX2/DX1/DX2
4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN
228
4.3.7.2 Machine foot clearances for the PCB dual conveyor
4

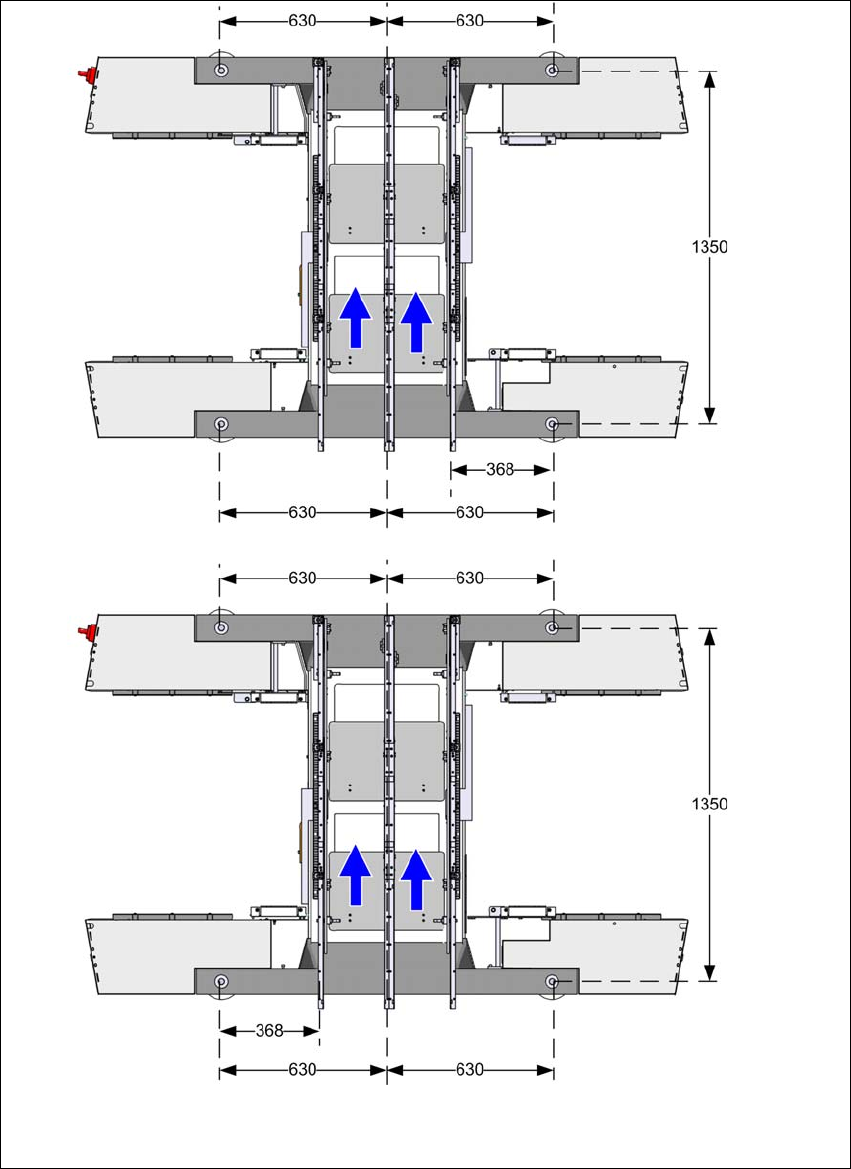

Fig. 4.3 - 6 Machine foot clearances for the PCB dual conveyor in millimeters
Fixed conveyor side at maxi-
mum right position
a
.
Fixed conveyor side at
maximum left position
a
.
a) The value depends on the position of the fixed side.
All dimensions in millimeters.
User Manual SIPLACE SX1/SX2/DX1/DX2 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
229
4.3.7.3 Machine foot clearances for the machine and WPC5/WPC6
4
Fig. 4.3 - 7 Machine foot clearances for the machine and WPC5/WPC6 in millimeters
a) Fixed conveyor side at maximum right position. The value depends on
the position of the fixed side. All dimensions in millimeters.
