5 Working with the machine User Manual SIPLACE SX1/SX2/DX1/DX2 5.9 Carrying out a sight check From softw are version SC.706.xx Version 06/2012 EN 276 5.9.5 Inserting sep arating plates in the t ape cont ainer The separ…
User Manual SIPLACE SX1/SX2/DX1/DX2 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.9 Carrying out a sight check
275
X series feeder modules can process component tapes without problems if the lateral offset be-
tween the feeder module and the tape reel does not exceed 60 mm. If a predefined setup means
that the maximum permitted offset cannot be maintained, we recommend that you use the mount
for an additional tape reel (item 1). Simply insert the mount into the holder (item 2) and push it until
the offset is less than the maximum permitted value of 60 mm. The component trolley has 5 hold-
ers in total. Each tape reel mount can hold 2 tape reels, which means that up to ten 15" (381 mm)
tape reels can be positioned above the tape container.
5 Working with the machine User Manual SIPLACE SX1/SX2/DX1/DX2
5.9 Carrying out a sight check From software version SC.706.xx Version 06/2012 EN
276
5.9.5 Inserting separating plates in the tape container
The separating plate has different edges and can be inserted into the tape container in two
ways. If spindles are used, the recesses for the spindles in the separating plate point upwards
(see item 4 in fig. 5.9 - 3
). If you do not use spindles, the rounded edge of the separating
plate points up (see item 5 in fig. 5.9 - 3
).
Insert the separating plates as shown in fig. 5.9 - 3 and remember that the smallest division
of the tape container is a 2x division. This will help avoid placement errors.
Check that the separating plates engage in the same positions on the three guide rails. Oth-
erwise the separating plate will be offset or bent.
5

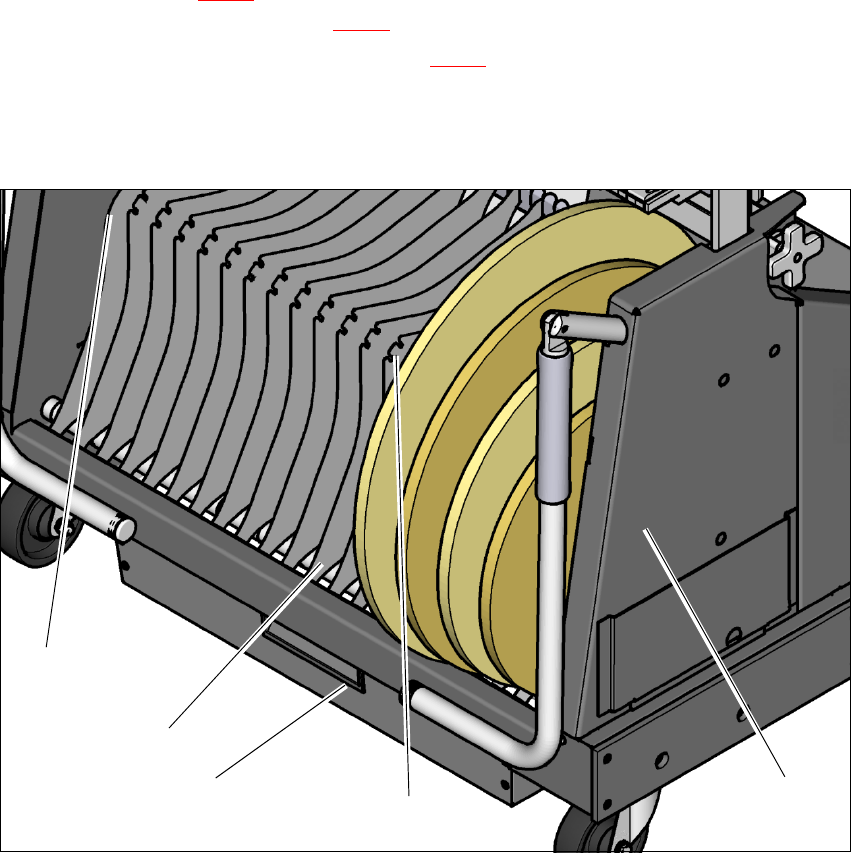

Fig. 5.9 - 3 Separating plates in the tape container
(1) Position of the separating plate if no spindles are used
(2) Guide rail for the separating plates
(3) Waste tape container
(4) Position of the separating plate if spindles are used
(5) Tape container
(1)
(5)
(2)
(3)
(4)
User Manual SIPLACE SX1/SX2/DX1/DX2 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.10 Setting up the feeder modules
277
5.10 Setting up the feeder modules
The following chapter shows diagrams of the SIPLACE SX1/SX2. However, inspection of the X
feeder modules on the SIPLACE SX1/SX2 changeover tables is basically identical to inspection
of the DX tables/DX changeover tables in the SIPLACE DX1/DX2.
5.10.1 Notes on handling feeder modules
Feeder modules are precision devices. You should therefore handle the feeder modules with care.
Avoid bumping feeder modules into obstacles.
Do not drop the feeder modules.
Always use suitable tools for preventive maintenance.
5.10.2 Removing X feeder modules from the changeover table
5

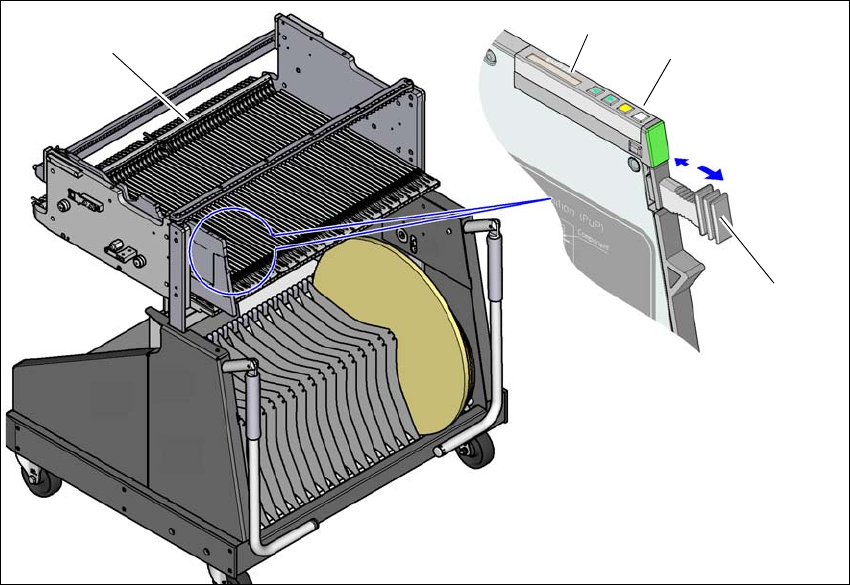

Fig. 5.10 - 1 Removing X feeder modules from the changeover table
(1) Removal handle
(2) Status display
(3) LCD display
(4) Latch for locking the X feeder modules
(1)
(2)
(3)
(4)
