6.5.2.1 Dimensions with docked component trolley
6
Fig. 6.5 - 3 Docking station with component trolley, SIPLACE SX series - dimensions
(1) Component trolley
(2) Docking station
(2)
(1)
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.5 Docking station for the component trolley of the SIPLACE SX
349
6.5.3 Warning labels on the docking station
6

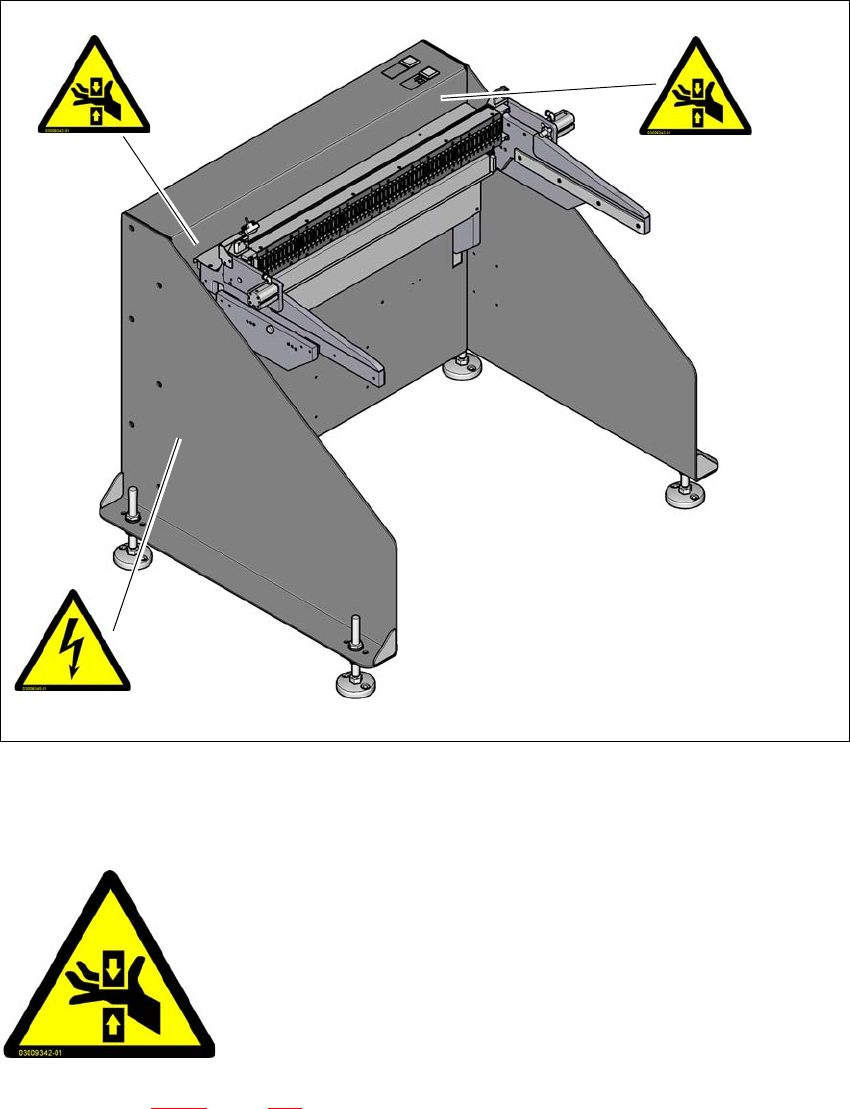

Fig. 6.5 - 4 Docking station, SIPLACE SX series - warning labels
6.5.3.1 Warning label W203
6
– W203 in fig. 6.5 - 4, page 349, item no. 03009342-01
– 2x on the docking station for SIPLACE SX component trolley
– 1x each on the left and right, behind the energy and data interface on the housing.
W 203
W 203
W206
6
6
6
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.6 Sensor for the component reject bin From software version SC.706.xx Version 06/2012 EN
350
6.5.4 Warning label 206
6
– W206 in fig. 6.5 - 4, page 349, item no. 03009345-01
– 1x on the docking station for SIPLACE SX component trolley
– 3 x on the covers for the energy supply.
6.6 Sensor for the component reject bin
Item no. 00519848-xx query for component reject bin
The sensor for the component reject bin monitors whether the reject bin is seated correctly in its
mount.
– If the reject bin was not inserted correctly, the machine cannot be started.
– If the reject bin jumps out of its mount during the placement process, the machine is stopped
immediately to avoid a head crash.
Each reject bin can be monitored by a separate sensor.
PLEASE NOTE 6
When using a SpeedStar we recommend that you install the optional sensor for the component
reject bin.
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
