1 Introduction User Manual SIPLACE SX1/SX2/DX1/DX2
1.2 SIPLACE DX1/DX2 From software version SC.706.xx Version 06/2012 EN
18
1.2 SIPLACE DX1/DX2
1

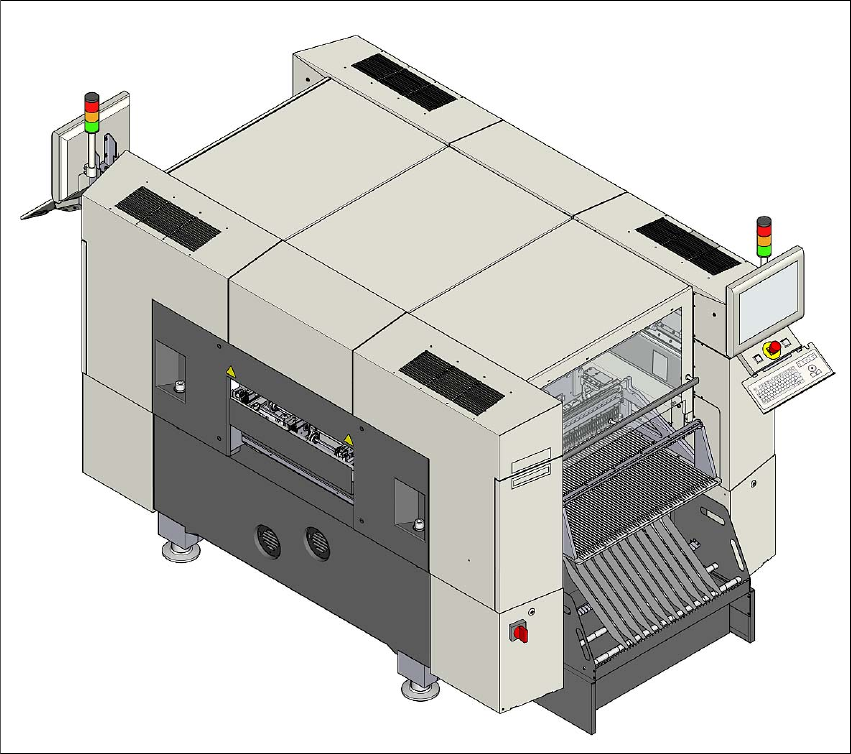

Fig. 1.2 - 1 SIPLACE DX1/DX2 placement machine
The SIPLACE DX1 and DX2 placement machines have the following distinguishing features:
– High precision,
– Intelligent placement optimization,
– Intelligent configuration strategies and
– A wide ranging component spectrum from 01005 components to a size of
110 mm x 10 mm.
Two placement methods are possible for processing the components:
– Collect&Place and
– Pick&Place.
User Manual SIPLACE SX1/SX2/DX1/DX2 1 Introduction
From software version SC.706.xx Version 06/2012 EN 1.2 SIPLACE DX1/DX2
19
The SIPLACE DX1 placement machine consists of one gantry while the SIPLACE DX2 placement
machine has two gantries. For an overview of the placement head configuration, refer to section
1.1.1
from page 17.
These can be quickly and accurately positioned by linear motors, moving independently of one
another in the X and Y directions.
The SX1/SX2 machine supports use of either the SIPLACE single conveyor or the flexible dual
conveyor.
There are two locations with DX tables or optional DX changeover tables, available for supplying
components. These can be configured with up to 60 tracks.
Alternatively, you can also dock a waffle pack changer (WPC5 or WPC6) at each of the two loca-
tions. If a WPC5/WPC6 is set up at one of the locations, a DX table with 30 tracks must be con-
figured for the other location.
1 Introduction User Manual SIPLACE SX1/SX2/DX1/DX2
1.2 SIPLACE DX1/DX2 From software version SC.706.xx Version 06/2012 EN
20
1.2.1 Overview of placement head configuration
1
Machine Placement head Standard cameras Options
SIPLACE
DX1
C&P20 Component camera, type
23
–none
C&P12 Component camera, type
28
– Component camera, type 30
TH Component camera, type
33
– Stationary camera, type 25 (only
at location 1)
– Stationary camera, type 36
SIPLACE
DX2
C&P20 / C&P20 Component camera, type
23
–none
C&P20/C&P12
Component camera, type
23
Component camera, type
28
–none
– Component camera, type 30
C&P12/C&P12
Component camera, type
28
– Component camera, type 30
Twin Head / C&P12
Stationary camera, type 33
Component camera, type
28
– Twin Head
– Stationary camera, type 25
(only at location 1)
– Stationary camera, type 36
– C&P12
– Component camera, type 30
