3.10.2.2 Tape feeder module 8 mm X
3

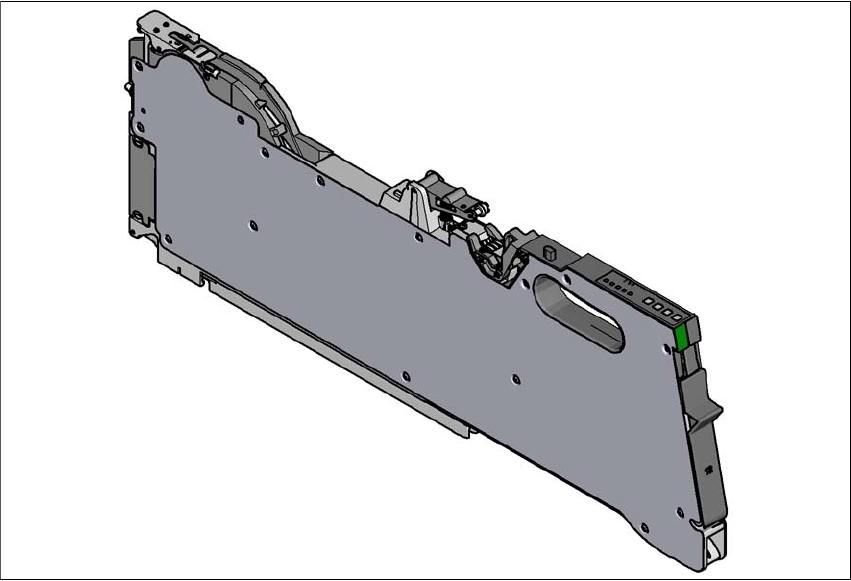

Fig. 3.10 - 4 Tape feeder module 8 mm X
3
Tape feeder module 8 mm X Item no. 00141270-xx
8 mm X tape feeder module with splice sensor Item no. 00141290-xx
Width 10,8 mm
Feeder module locations filled 1
Conveyor increment 1 mm / 2 mm / 4 mm / 8 mm
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.10 X feeder modules for SIPLACE SX1/SX2/DX1/DX2 From software version SC.706.xx Version 06/2012 EN
166
3.10.2.3 SIPLACE Smart Feeder 12 mm X tape feeder module
3

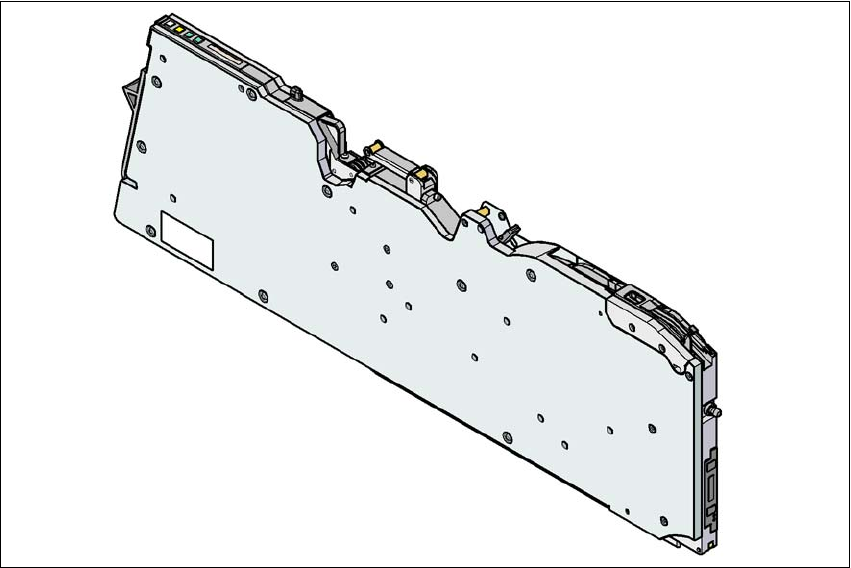

Fig. 3.10 - 5 SIPLACE Smart Feeder 12 mm X tape feeder module
3
Tape feeder module 12 mm X Item no. 00141371-xx
12 mm X tape feeder module with splice sensor Item no. 00141391-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment From 4 mm to 16 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.10 X feeder modules for SIPLACE SX1/SX2/DX1/DX2
167
3.10.2.4 Tape feeder module 12 mm X
3
Fig. 3.10 - 6 Tape feeder module 12 mm X
3
3
Tape feeder module 12 mm X Item no. 00141271-xx
12 mm X tape feeder module with splice sensor Item no. 00141291-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment From 4 mm to 16 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
