User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.1 Nozzle changer
311
PLEASE NOTE 6
– Move the locking plate into the "Magazine locked" position.
– Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig. 6.1 - 4
,
page 310) slide into the centering holes and slot.
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 4, page 310).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
6.1.1.7 Position detection
Each magazine of the nozzle changer has two fiducials: one for determining the position and one
for determining the angular position.
6

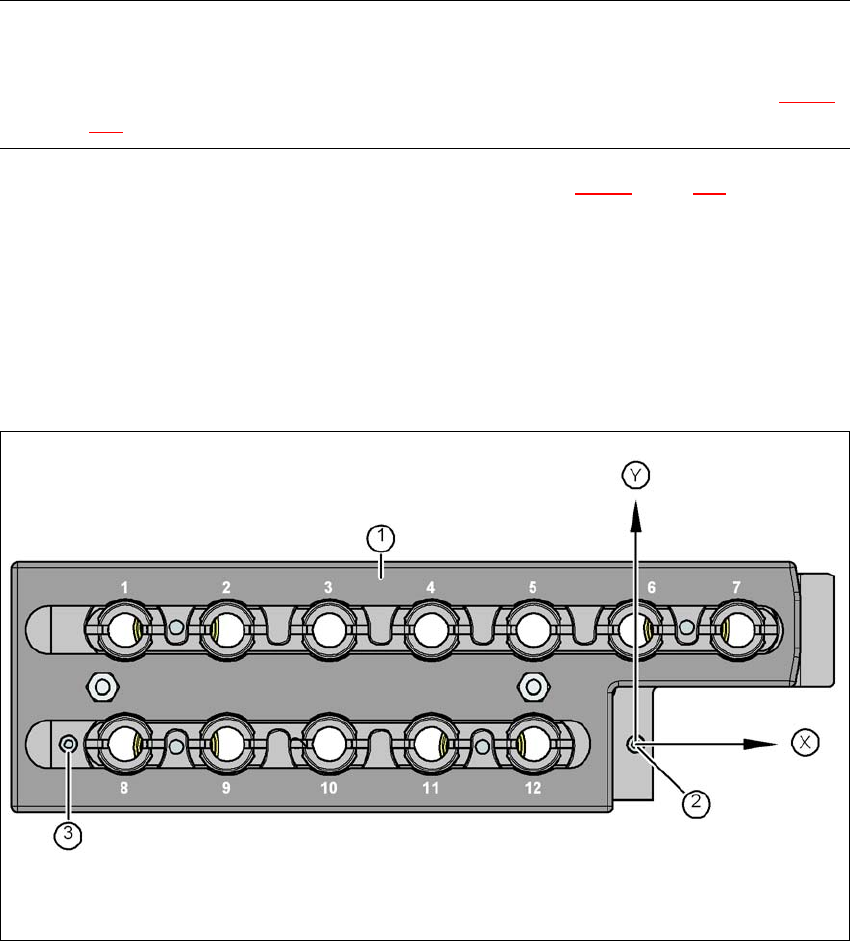

Fig. 6.1 - 5 Nozzle magazine - holder numbering, fiducials for determining the position and angular position
(1) Locking plate in the "Magazine open" position
(2) Fiducial for determining the position
(3) Fiducial for determining the angular position
6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.1 Nozzle changer From software version SC.706.xx Version 06/2012 EN
312
6.1.2 Nozzle changers for the SIPLACE MultiStar (SX1/SX2 only)
Item no. 00519841-xx Nozzle changer CPP for position 1 or 2
Item no. 00519842-xx Nozzle changer CPP for position 3 or 4
6
Fig. 6.1 - 6 Nozzle changer for the MultiStar and SpeedStar
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
6.1.2.1 Description
The magazines are fitted onto a common carrier pate, are fixed with two cylinder pins and fas-
tened with 4 push buttons. The exact position is determined with two fiducials on each magazine.
The correct seat of the magazines on the carrier plate is monitored by microswitches, to prevent
a collision of the placement head with any magazines projecting upwards. All four magazine loca-
tions must be filled since the safety circuit stops the machine in response to missing magazines
or magazines that are not seated correctly. The nozzle changer recognizes whether the nozzle
magazine is for 20xx nozzles or for 28xx nozzles (CPP head) by the nozzle magazine code.
At the nozzle station, components can be rejected with an air blast by the MultiStar nozzles. Mul-
tiStar nozzles cane stripped off there and disposed of in the rejection bin.
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.1 Nozzle changer
313
Nozzle magazine for 20xx nozzles 6
– Item no. 03066107-xx
6
Fig. 6.1 - 7 Nozzle magazine for 20xx nozzles - locking plate open
(1) 12 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(3) Locking plate
