3.10.2.5 Tape feeder module 16 mm X
3
Fig. 3.10 - 7 Tape feeder module 16 mm X
3
Tape feeder module, 16 mm X Item no. 00141272-xx
16 mm X tape feeder module with splice sensor Item no. 00141292-xx
Width 34,4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 20 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.10 X feeder modules for SIPLACE SX1/SX2/DX1/DX2
169
3.10.2.6 SIPLACE Smart Feeder 16 mm tape feeder module
3

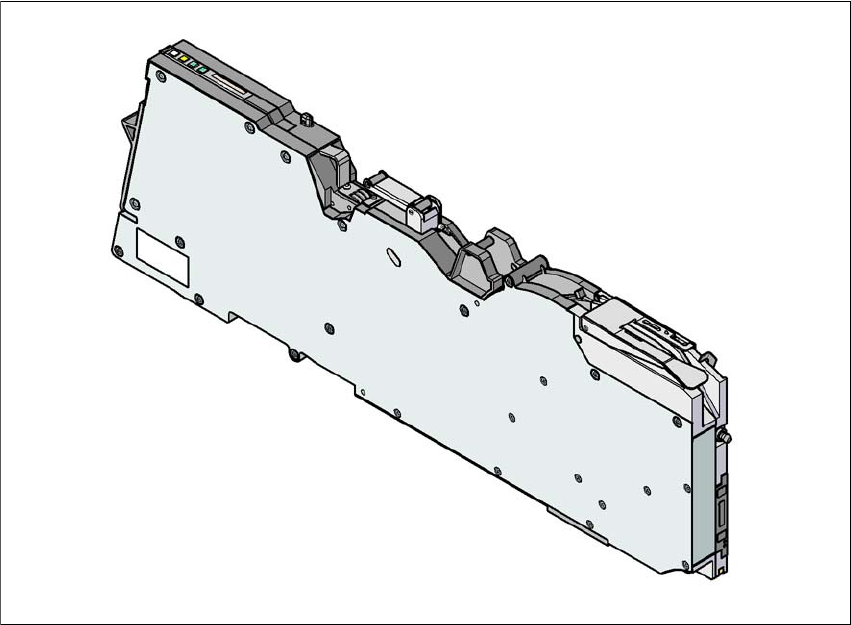

Fig. 3.10 - 8 SIPLACE Smart Feeder 16 mm X tape feeder module
3
Tape feeder module, 16 mm X Item no. 00141372-xx
16 mm X tape feeder module with splice sensor Item no. 00141392-xx
Width 22.6 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 20 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.10 X feeder modules for SIPLACE SX1/SX2/DX1/DX2 From software version SC.706.xx Version 06/2012 EN
170
3.10.2.7 Tape feeder module 24 mm X
3
Fig. 3.10 - 9 Tape feeder module 24 mm X
3
3
3
Tape feeder module, 24 mm X Item no. 00141273-xx
24 mm X tape feeder module with splice sensor Item no. 00141293-xx
Width 34,4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 32 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
