User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety From software version SC.706.xx Version 06/ 2012 EN 2.6 Additional Safety Instructions 65 2.6 Additional Safety In structions 2.6.1 Safety instructions for docking…
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.5 Safety instructions for operating the SX1/SX2/DX1/DX2 machines From software version SC.706.xx Version 06/2012 EN
64
2.5.10 High temperatures on the X feeder modules during continuous operation
2

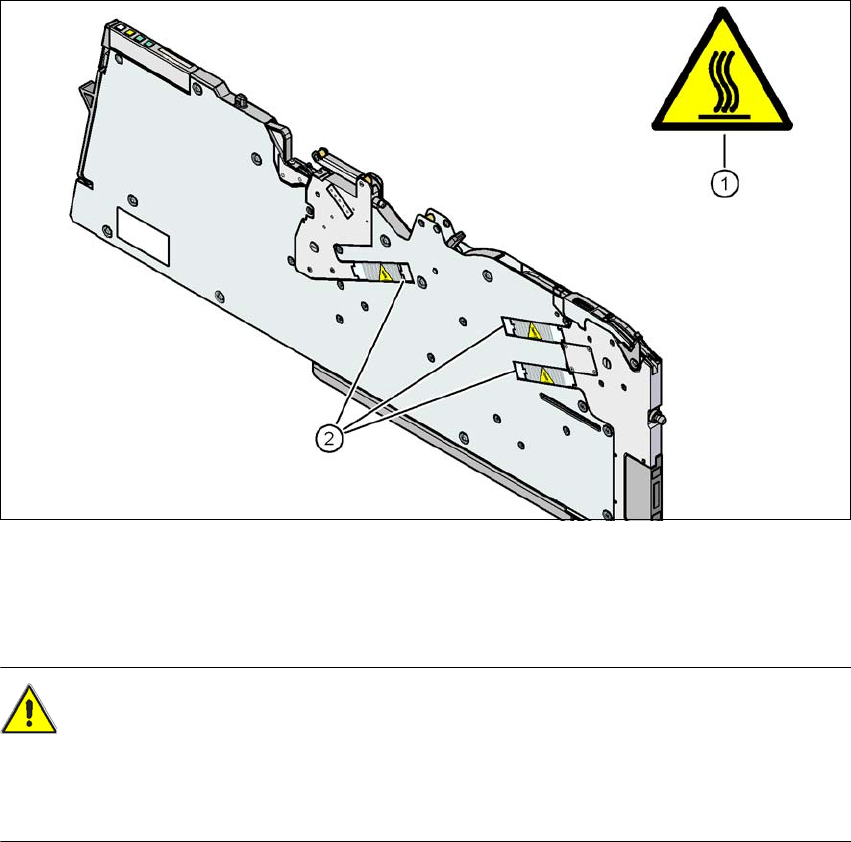

Fig. 2.5 - 4 High temperatures on the X feeder modules during continuous operation
(1) Temperature label, item no. 03031926-01
(2) Stepping motor
CAUTION
HIGH TEMPERATURES 2
The stepping motors can become very hot during continuous operation and in an ambient tem-
perature in excess of 22 °C. Be careful when touching the motors.
User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.6 Additional Safety Instructions
65
2.6 Additional Safety Instructions
2.6.1 Safety instructions for docking the component trolley in or out
WARNING 2
The placement machine may only be operated if there is a component trolley present and
docked at each location. Fill any free locations with dummy feeder modules as described in
section 2.7.5.1, page 79.
WARNING
To prevent accidents (risk of crushing), the component trolley may only be docked in or out by
one person.
CAUTION
Do not lift the component trolley by its handles (handles could break). 2
CAUTION
When docking and undocking, make sure that there are no body limbs in the travel area of the
component trolley. 2
2.6.2 Safety instructions for emptying the waste tape container
The waste tape container must be pulled out of the component trolley for emptying. There is a risk
of catching your thumbs as you do so. To prevent this, observe the safety instructions in section
5.8.2
, page 271.
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.7 Safety equipment From software version SC.706.xx Version 06/2012 EN
66
2.7 Safety equipment
2.7.1 Protective covers
The protective hoods and covers serve as protective devices which prevent unauthorized access
to the inside of the machine.
CAUTION
Do not stand on or otherwise access the protective hoods and covers. 2
2
Fig. 2.7 - 1 Protective covers (example of SX1/SX2)
(1) Protective cover location 1
(2) Protective cover location 2
The travel range of the gantries is protected with two covers which can be opened (items 1 and 2).
(1)
(2)
