5 Working with the machine User Manual SIPLACE SX1/SX2/DX1/DX2 5.15 Docking the component trolley in or out From software version SC.706.xx Version 06/2012 EN 298 5.15.2 Docking out the component trolley Select the Fee…
User Manual SIPLACE SX1/SX2/DX1/DX2 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.15 Docking the component trolley in or out
297
5.15 Docking the component trolley in or out
The following chapter shows diagrams of the SIPLACE SX1/SX2. The component changeover ta-
bles for the SIPLACE SX1/SX2 are docked and undocked in the exactly same way as the DX
changeover tables for the SIPLACE DX1/DX2.
5.15.1 Safety instructions for docking component trolleys in and out
WARNING 5
To prevent accidents (risk of crushing), the component trolley may only be docked in or out by
one person.
5
Fig. 5.15 - 1 Safety instructions for docking the component trolley in or out
In addition, the component trolley can only be docked in if the protective
covers are closed.
5 Working with the machine User Manual SIPLACE SX1/SX2/DX1/DX2
5.15 Docking the component trolley in or out From software version SC.706.xx Version 06/2012 EN
298
5.15.2 Docking out the component trolley
Select the Feeder Modules... icon and the
Locations icons in the main view of the station software.
5
Fig. 5.15 - 2 SC GUI - locations
5
Click on the icon to release the respective location and wait until the locking device
opens. For further information, refer to the station software Online Help.
Swivel the two handles up (item 1 in fig. 5.15 - 3).
User Manual SIPLACE SX1/SX2/DX1/DX2 5 Working with the machine
From software version SC.706.xx Version 06/2012 EN 5.15 Docking the component trolley in or out
299
5

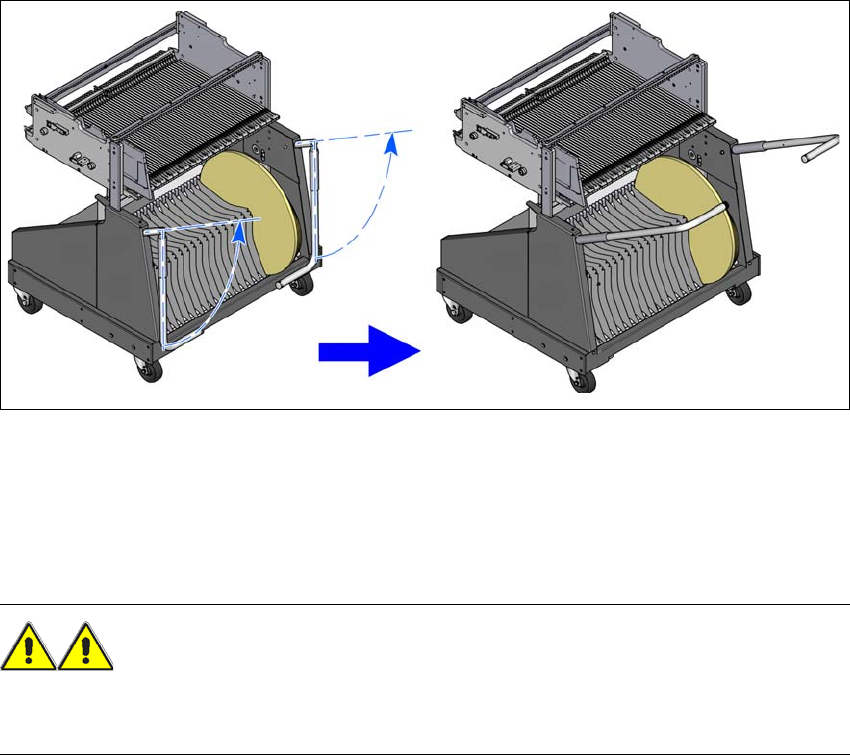

Fig. 5.15 - 3 Component trolley - swivel handles up to push
With both hands on the handles, pull the component trolley out of the machine.
5.15.3 Safety instructions for moving the component trolley
WARNING
To prevent accidents, ALWAYS follow the rules listed below when you move the component trol-
ley.
Always hold the handles with both hands when you want to move the component trolley.
Remember that a component trolley with the full complement of feeder modules can tip over
sideways or forward on gradients of 20° or more.
Make sure that the surface on which the trolley is moved has a significantly smaller gradient.
The floor underneath the machine may not exceed an incline of 0.63%. This corresponds to
an incline of 5 mm over a distance of 800 mm (e.g. the width of a changeover table).
Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast
enough.
