User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.12 Magnetic pin support
357
6.12 Magnetic pin support
Item no. 00119680-xx Magnetic pin support
Wide boards tend to deflect during placement such that, under certain circumstances, the compo-
nents can no longer be placed with the desired accuracy. Highly curved PCBs also affect the
placement accuracy. This problem can be easily rectified by fitting magnetic pin supports on the
lifting table.
6

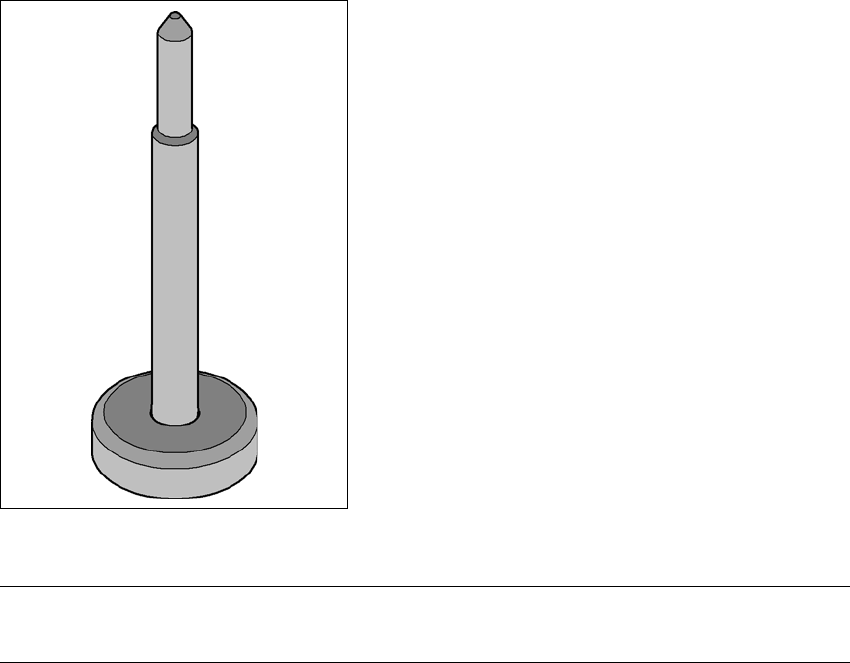

Fig. 6.12 - 1 Magnetic pin support
NOTE
The free positioning of magnetic pin supports is limited by the stop bar of the board conveyor. 6
6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.13 Vacuum pump From software version SC.706.xx Version 06/2012 EN
358
6.13 Vacuum pump
6.13.1 Safety instructions for vacuum pumps
WARNING 6
Please observe the safety instructions in the operating manual supplied!
6.13.2 Description
Each Collect&Place head has its own vacuum generator, which supplies the holding and place-
ment circuit with the required vacuum. The vacuum generator for the placement heads functions
according to the Venturi principle. When operated together with a vacuum pump, the SpeedStar
(C&P20) can reduce the compressed air consumption considerably. The running costs will fall ac-
cording to the energy costs incurred.
PLEASE NOTE 6
The compressed air consumption values with the vacuum pump can be found in section 3.3.4
,
page 106.
6.14 Long board option (LBO)
The "Long board" option allows you to place boards which exceed the specified board length. The
maximum length is 610 mm.
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.15 Vision Teach Station
359
6.15 Vision Teach Station
Item no. 00119788-xx Vision teach station
6

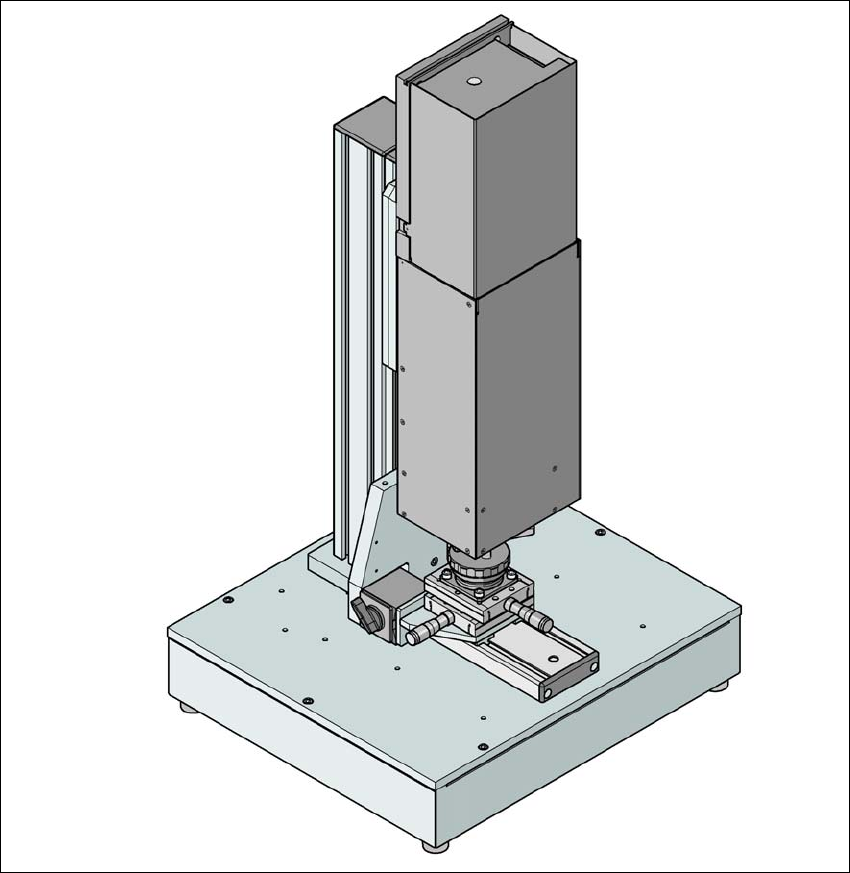

Fig. 6.15 - 1 Vision teach station with component camera, type 33
