6.2.7 Dimensions with WPC5/WPC6
6

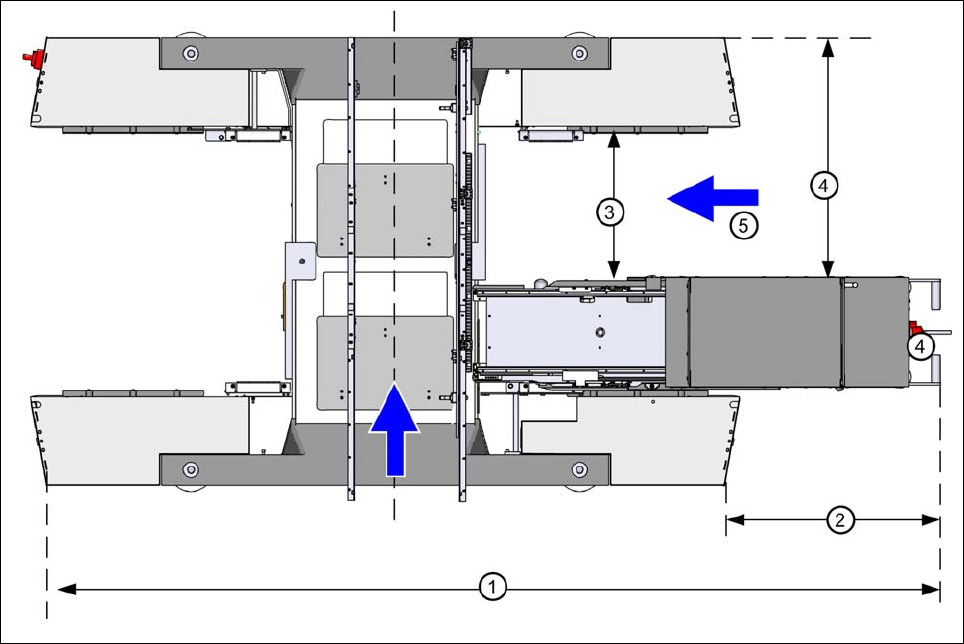

Fig. 6.2 - 3 Dimensions of SX machine with WPC5/WPC6
(1) 3000 mm
(2) 700 mm
(3) 445 mm
(4) 769 mm
(5) Location for component trolley/DX table with 30 tracks
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.2 Waffle pack changer (WPC5/WPC6)
337
6.2.8 Controls
6
Fig. 6.2 - 4 WPC - controls
(1) EMERGENCY STOP button
(2) Main power switch
(3) Crank for raising or lowering the chassis
(4) Safety door
(5) Waffle pack tray storage unit
(6) Non-stop module (WPC6 only)
(3)
(2)
(1)
(4)
(5)
(6)
6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.2 Waffle pack changer (WPC5/WPC6) From software version SC.706.xx Version 06/2012 EN
338
6.2.8.1 Safety equipment
EMERGENCY STOP button 6
After pressing the EMERGENCY STOP button, the entire system, with SIPLACE SX and Waffle
Pack Changer, is immediately stopped. After releasing the EMERGENCY STOP button, the entire
system can be restarted again by pressing the start button on the SX machine. Placement can
then be continued or terminated.
PLEASE NOTE
Watch out for any incompletely placed PCBs.
Safety door 6
When you open the protective door, the lifting axis and the feed axis of the Waffle Pack Changer
are stopped. When the door is closed again, the Waffle Pack Changer continues its operation.
CAUTION 6
Do not open the Waffle Pack Changer protective door while a component is being picked up by
the Waffle Pack Changer. 6
Non-stop module (WPC6 only) 6
Waffle pack trays can be refilled or extracted during operations via the flap in the non-stop module,
without stopping the SIPLACE SX. The operating control indicates whether a waffle pack tray is
in the non-stop module, whether the non-stop module is empty or whether a waffle pack tray is
currently being moved.
CAUTION 6
If the operating control flashes. the waffle pack tray is being moved inside the non-stop module
and the activity has not yet been completed. Opening the flap triggers the emergency STOP.
6.2.9 Operation, maintenance, service
For detailed documentation of the operation, maintenance and servicing of the waffle pack
changer, refer to the manuals supplied with your waffle pack changer.
