2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2 2.2 Warning labels From software version SC.706.xx Version 06/2012 EN 54 2.2.7 "Head crash" label on the IC camera of the T winSt ar "Head crash&quo…
User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
53
2.2.6 High temperatures on the Head Control Unit (HCU)
1 in fig. 2.2 - 10, temperature label, item no. 03031926-01 (2 to 4, depending on head configura-
tion).
2

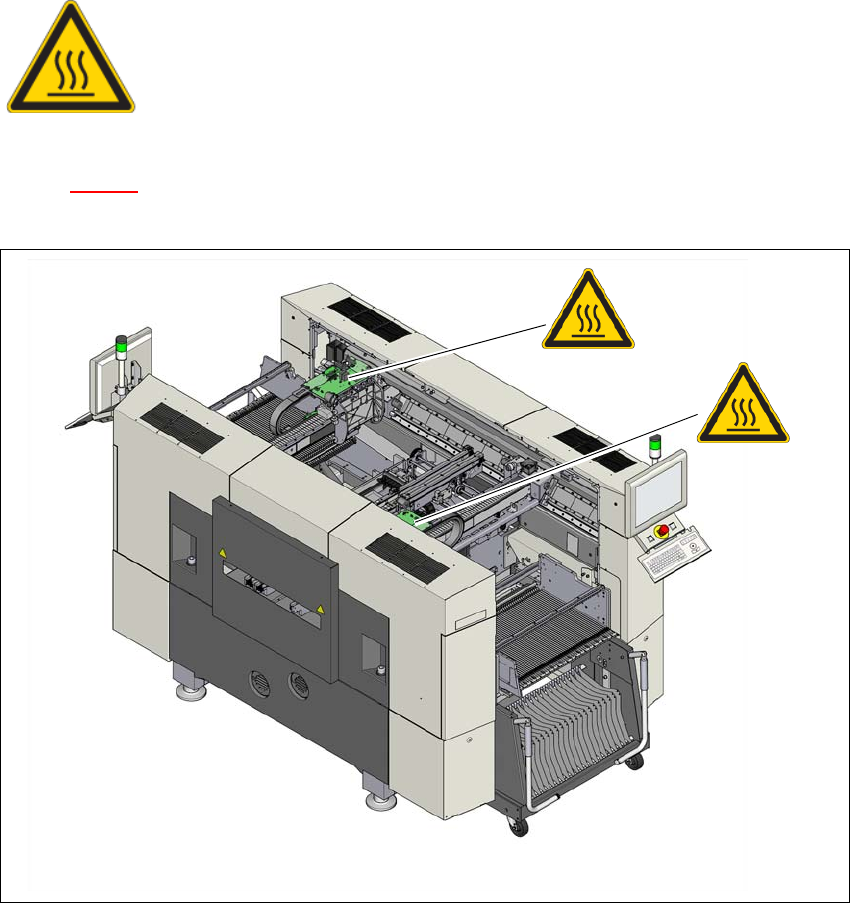

Fig. 2.2 - 10 Temperature label on the Head Control Unit (HCU) - (example of SX2)
2
HIGH TEMPERATURES!
The housing of the Head Control Unit (HCU) can become hot during contin-
uous operation. Take care when touching the Head Control Unit (HCU).
(1)
(1)
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.2 Warning labels From software version SC.706.xx Version 06/2012 EN
54
2.2.7 "Head crash" label on the IC camera of the TwinStar
"Head crash" label in fig. 2.2 - 11, item no. 03015392-02
(quantity per machine: maximum 2)
2
Fig. 2.2 - 11 "Head Crash" label on the IC camera of the TwinStar (example of SX2)
(1) "Head Crash" label on the IC camera of the TwinStar
WARNING RISK OF HEAD CRASH 2
When changing the placement head from TwinStar to SpeedStar,
the stationary component cameras of type 33, 55 x 45 and type 25,
16 x 16) need to be dismantled from the TwinStar, otherwise the
SpeedStar will collide with the camera housing.
(1)
User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.3 Laser classification
55
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
PLEASE NOTE: 2
Modules in laser classes 1 and 1M are not identified.
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
2
All installed camera systems and the whole machine when ready for operation
are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1:2001.
2
The following camera systems are assigned to laser class 1:
– Component cameras for the SIPLACE TwinStar
Component camera, stationary P&P, type 33, 55 x 45, digital
Component camera, stationary P&P, type 25, 16 x 16, digital
2
The following camera systems are assigned to laser class 1M:
– Component camera C&P, type 23, 6 x 6 on SpeedStar
– Component camera C&P, type 30, 27 x 27 on MultiStar
– Component Camera C&P, Type 30, 18 x 18 on a 12 Segment Collect&Place
Head
– Component Camera C&P, Type 28, 18 x 18 on a 12 Segment Collect&Place
Head
