6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2 6.2 Waffle pack changer (WPC5/WPC6) From software version SC.706.xx Version 06/2012 EN 332 6.2.2 Overview WPC6 Item no. 001 1 9828-xx WPC 6 on the SIPLACE DX1/DX2 …
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.2 Waffle pack changer (WPC5/WPC6)
331
6.2 Waffle pack changer (WPC5/WPC6)
The functionality and the technical data for the WPC5 are largely identical to those for the WPC6.
However, the WPC6 also has a non-stop module. The WPC5/6 can be used both on the SIPLACE
SX1/SX2 and on the DX1/DX2.
6.2.1 Overview WPC 5
Item no. 00119827-xx WPC5
6

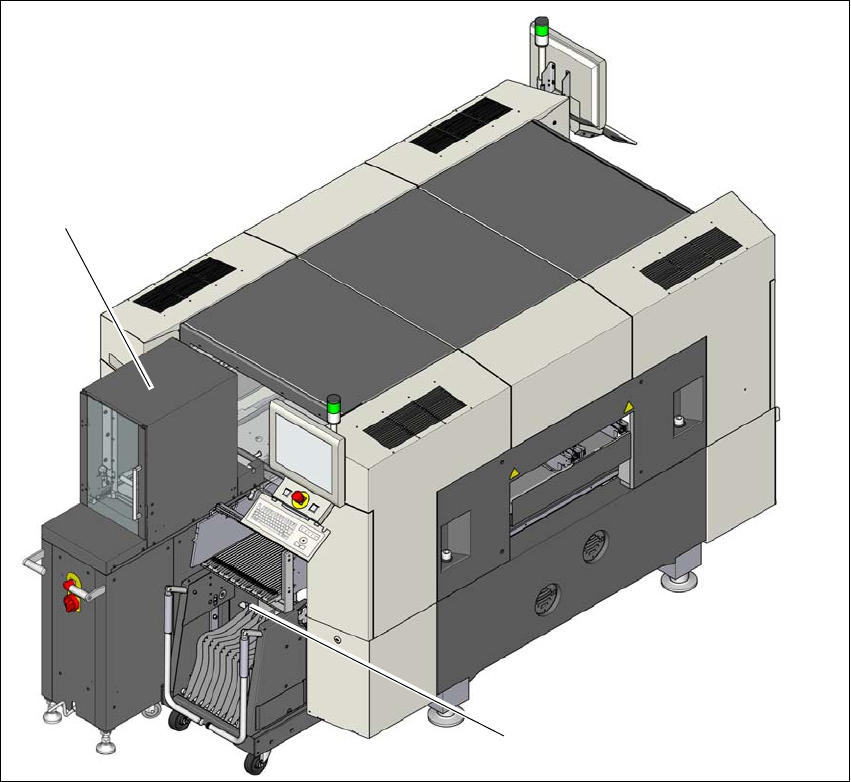

Fig. 6.2 - 1 WPC5 on the SIPLACE SX1/SX2
(1) WPC5
(2) Component trolley with 30 tracks
(1)
(2)
6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.2 Waffle pack changer (WPC5/WPC6) From software version SC.706.xx Version 06/2012 EN
332
6.2.2 Overview WPC6
Item no. 00119828-xx WPC 6 on the SIPLACE DX1/DX2
6

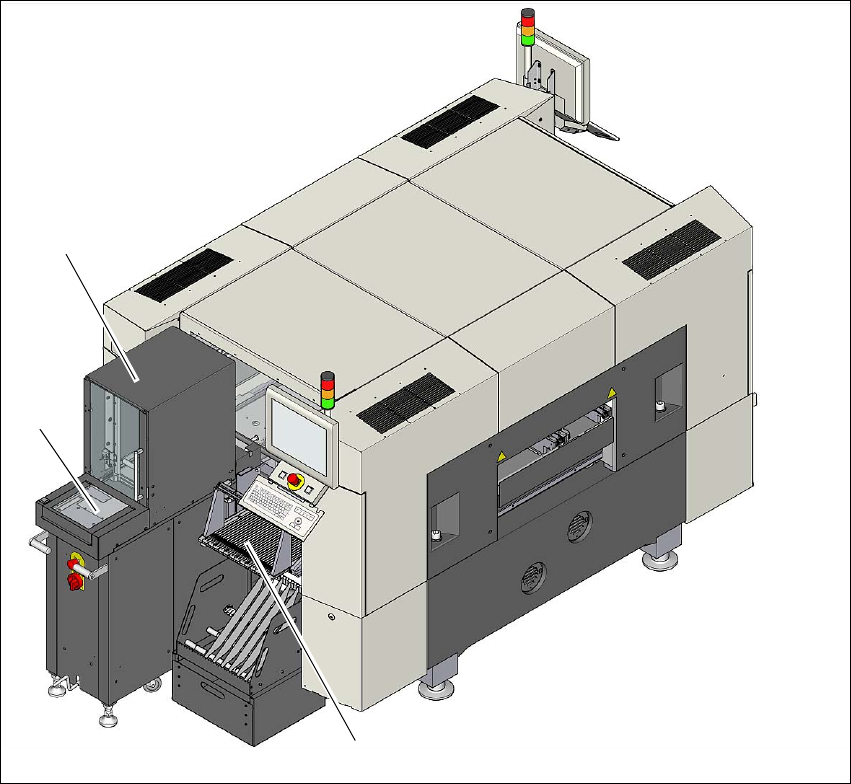

Fig. 6.2 - 2 WPC6 on the SIPLACE DX1/DX2
(1) WPC6
(2) Non-stop module
(3) DX table with 30 tracks
(1)
(3)
(2)
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.2 Waffle pack changer (WPC5/WPC6)
333
6.2.3 Safety instructions
WARNING 6
Do not reach into the gaps between the waffle pack changer and the machine base while the
machine is running.
The waffle pack changer control cable may only be connected to the connecting socket or
taken from this if the waffle pack changer is docked into the machine.
The power supply cable must not be plugged into or unplugged from the external power sup-
ply unless the waffle pack changer is docked into the machine.
The waffle pack changer may NOT be operated unless it is docked into the machine.
6.2.4 Description
The waffle pack changer makes components available in the waffle pack trays, to avoid unneces-
sary loss of time during storage and automatic changing of the waffle pack trays. The individual,
programmable access to up to 28 waffle pack trays also increases the range of components avail-
able.
The waffle pack changer has an integral chassis, and is easy to move to other locations. It is sup-
plied with the PCB conveyor height set for the customer-specific machine but can be quickly and
easily adapted to conveyor heights of 900, 930, and 950 mm. The changeover table/DX table with
30 locations needs to be set up on the remaining location.
