2.2.7 "Head crash" label on the IC camera of the TwinStar
"Head crash" label in fig. 2.2 - 11, item no. 03015392-02
(quantity per machine: maximum 2)
2

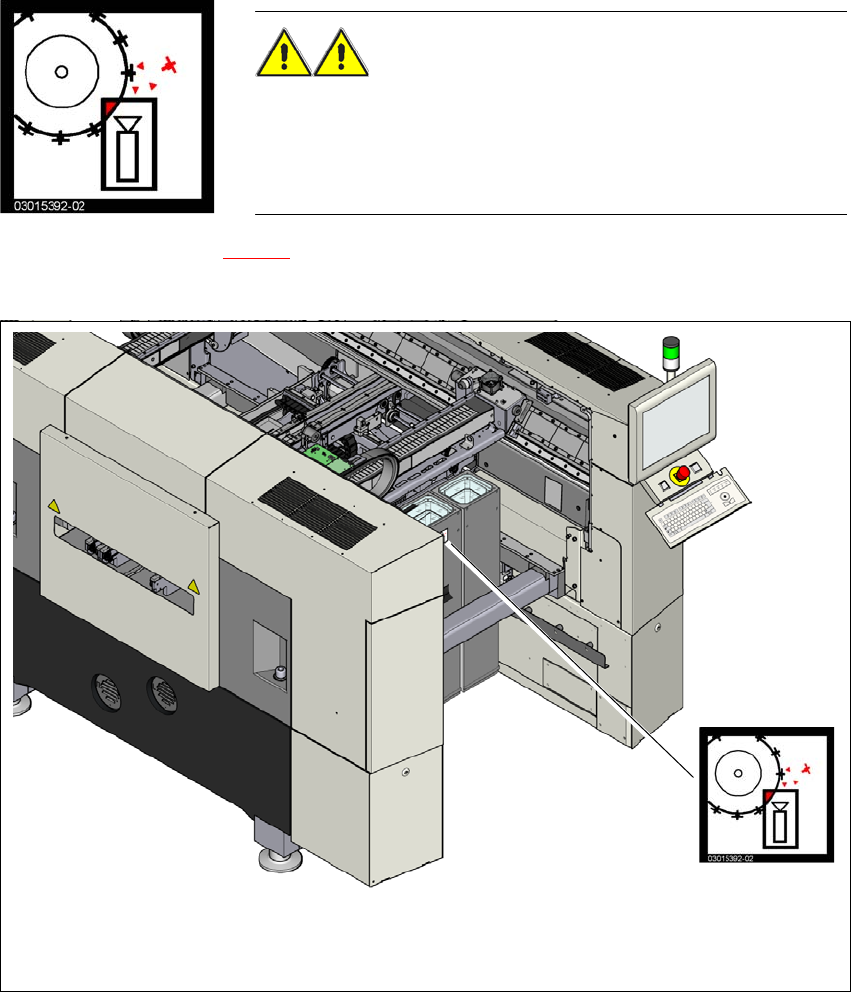

Fig. 2.2 - 11 "Head Crash" label on the IC camera of the TwinStar (example of SX2)
(1) "Head Crash" label on the IC camera of the TwinStar
WARNING RISK OF HEAD CRASH 2
When changing the placement head from TwinStar to SpeedStar,
the stationary component cameras of type 33, 55 x 45 and type 25,
16 x 16) need to be dismantled from the TwinStar, otherwise the
SpeedStar will collide with the camera housing.
(1)
User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.3 Laser classification
55
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
PLEASE NOTE: 2
Modules in laser classes 1 and 1M are not identified.
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
2
All installed camera systems and the whole machine when ready for operation
are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1:2001.
2
The following camera systems are assigned to laser class 1:
– Component cameras for the SIPLACE TwinStar
Component camera, stationary P&P, type 33, 55 x 45, digital
Component camera, stationary P&P, type 25, 16 x 16, digital
2
The following camera systems are assigned to laser class 1M:
– Component camera C&P, type 23, 6 x 6 on SpeedStar
– Component camera C&P, type 30, 27 x 27 on MultiStar
– Component Camera C&P, Type 30, 18 x 18 on a 12 Segment Collect&Place
Head
– Component Camera C&P, Type 28, 18 x 18 on a 12 Segment Collect&Place
Head
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.4 Safety instructions for transporting the machine From software version SC.706.xx Version 06/2012 EN
56
2.3.3 Laser class 2
The following modules are assigned to laser class 2:
– PCB barcode scanner
– Component sensor on SpeedStar
– Component sensor on MultiStar
(The entire machine is classified as laser class 2 if the coplanarity laser module option is installed.)
2
2.4 Safety instructions for transporting the machine
2
Use a fork-lift truck with the following specification to carry the machine:
Fork length: min. 1800 mm
Carrying power: min. 6000 kg
Clear width between forks: min. 350 mm 2
WARNING
RISK OF TIPPING 2
If the required specification cannot be applied to the fork-lift, there is a risk that the fork-lift will tip
over when carrying the machine.
Transportation of the machine is described in chapter 4, section 4.1, page 201.
2
Laser radiation
Do not look into beam!
