6.4.4 Warning label W216 for 1D barcode reader
The 1D barcode reader is classified as a laser class 2 device.
6
Warning label W216 "laser class 2" for the 1D barcode reader,
item no. 03009347-01 (quantity per machine: up to 4)
PLEASE NOTE 6
When you install a PCB barcode scanner on the placement machine, you must attach laser
warning label W206 contained in the retrofit kit.
6
6
6
6
6
6
LASER RADIATION!
Do not look into beam
Laser class 2
6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.5 Docking station for the component trolley of the SIPLACE SX From software version SC.706.xx Version 06/2012 EN
346
6.5 Docking station for the component trolley of the
SIPLACE SX
6.5.1 Overview
The docking station is an additional component for the setup area. It forms the link between the
setup area and the component trolley for the SIPLACE SX1/SX2 and X series. The docking station
allows the component trolleys to be set up with feeder modules and function tests and setup
checks to be carried out externally. The component trolley can be used with 30, 40 or 60 tracks.
The appropriate separating modules will be needed where relevant.
For a detailed description, see the "Operating guide Docking Station for Component Trolleys in
SIPLACE SX", Item No. 00196691-xx.
6

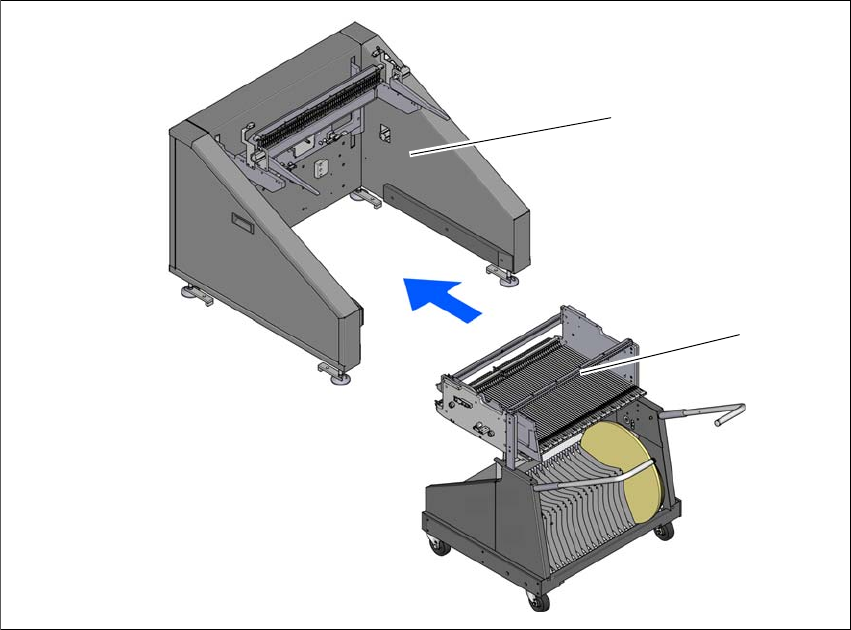

Fig. 6.5 - 1 Docking station, SIPLACE SX series
(1) Docking station
(2) Component trolley (with 60 tracks)
(1)
(2)
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.5 Docking station for the component trolley of the SIPLACE SX
347
6.5.2 Technical data
6

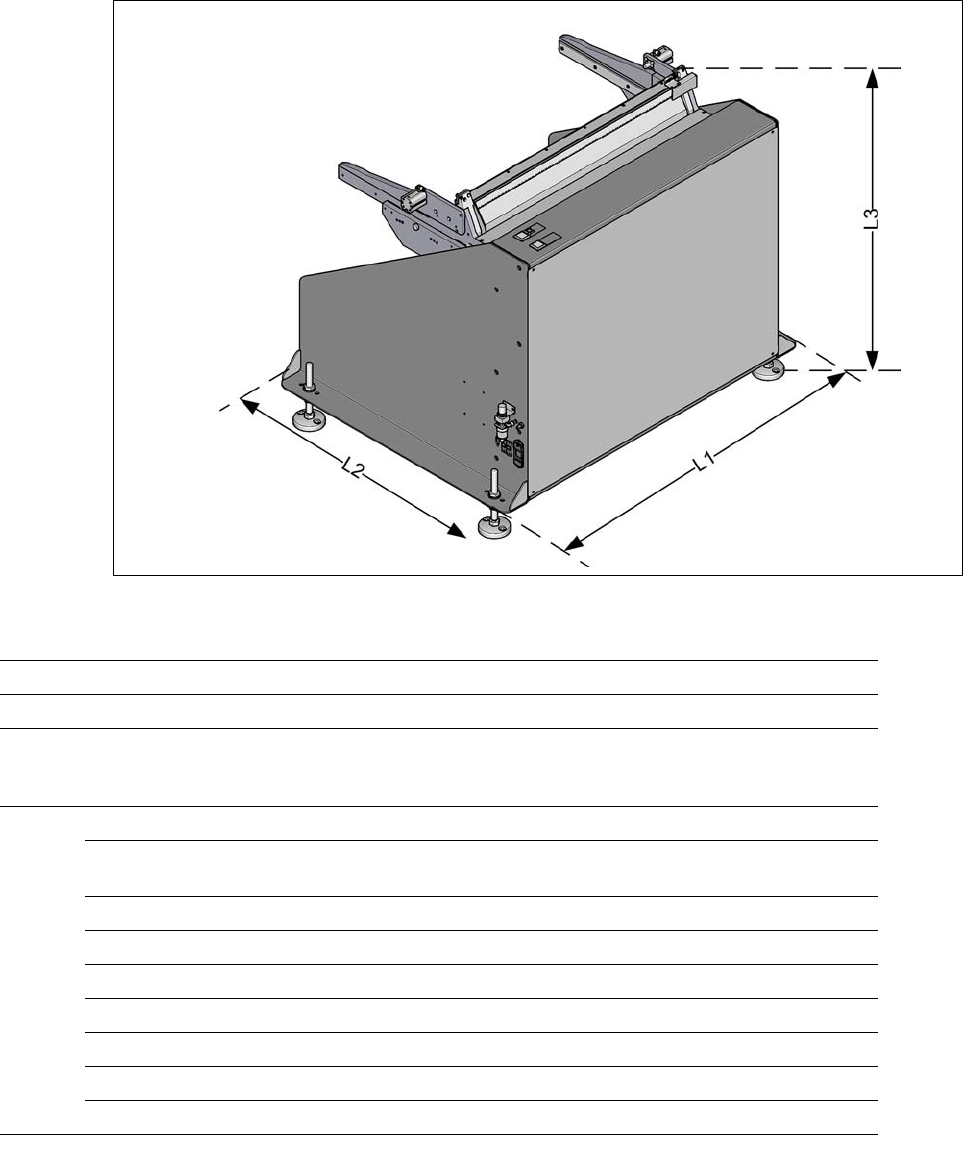

Fig. 6.5 - 2 Docking station, SIPLACE SX series - dimensions
6
L1 Length 1038 mm
L2 Width 801,5 mm
L3 Height to centering pin 859 mm for 900 mm PCB conveyor height
889 mm for 930 mm PCB conveyor height
909 mm for 950 mm PCB conveyor height
Weight
Compressed air pressure values p
min
0.5 MPa (5.0 bar)
p
max
1.0 MPa (10.0 bar)
Compressed air connection Connection plug KS 2-M5-A
Rate of flow
a
5 Nl/min
Supply voltage 88 - 264 V~
Frequency max. 63 Hz
Rated current max. 2 A
Performance 0.23 kW
Fuse 2 x 8 A
a) Under normal atmospheric conditions at 20°C and 1013 hPa
