6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2 6.1 Nozzle changer From software version SC.706.xx Version 06/2012 EN 328 6.1.4.5 Notes on operation When you fill a magazine with a certain nozzle type for the …
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.1 Nozzle changer
327
6.1.4.4 Assembly
In DX1/DX2 machines, the nozzle changers are fixed to the DX table.
6

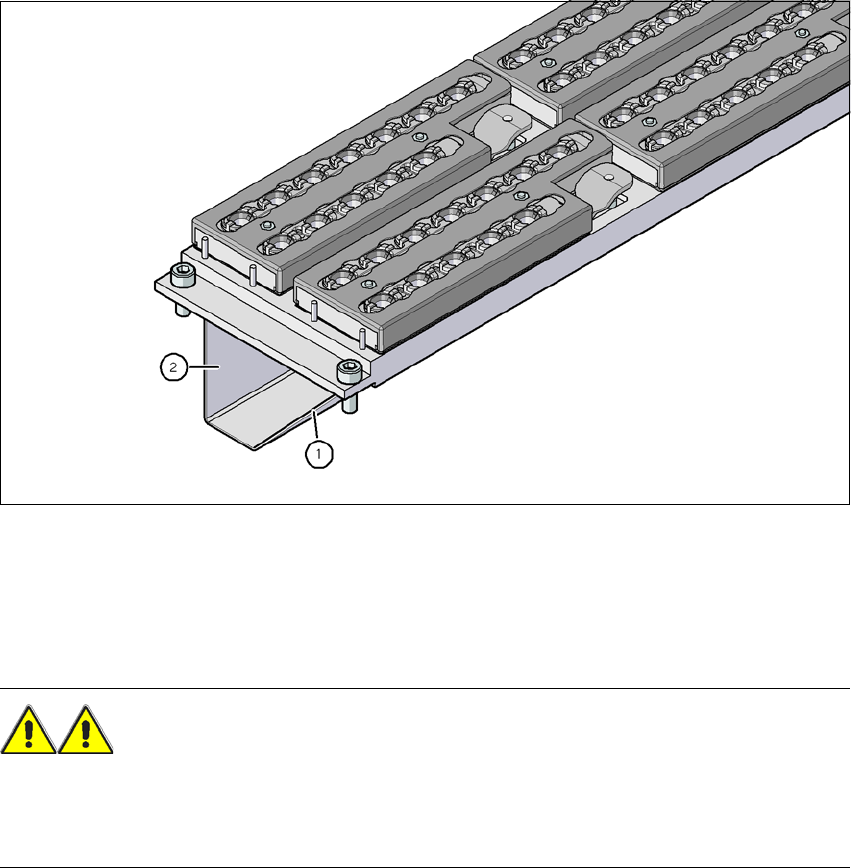

Fig. 6.1 - 19 Assembly position
(1) Sloping side points towards the DX table
(2) Vertical side points towards the PCB conveyor
Align the nozzle changer so that the sloping side points towards the DX table.
WARNING 6
– Only install the associated nozzle changer for each placement head, with the nozzle maga-
zines for the respective placement head. There is a risk of head crashes with mixed configu-
rations.
6 Station extensions User manual SIPLACE SX1/SX2/DX1/DX2
6.1 Nozzle changer From software version SC.706.xx Version 06/2012 EN
328
6.1.4.5 Notes on operation
When you fill a magazine with a certain nozzle type for the first time, attach an adhesive label
to identify the type.
PLEASE NOTE 6
Fill the magazines off the machine and always replace complete magazines. 6
Open the locking plate and place the nozzles in the nozzle holders.
Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 6
Before you fill the magazine, make sure that all the nozzles on the 12 segment Collect&Place
head have
been returned to their magazines. 6
PLEASE NOTE 6
Do not allow components to drop onto the magazines. f they do, they could jam the locking
plate. You should therefore regularly clean the magazines and free locations.
Programming the nozzle changer is described in the SIPLACE Pro user manual.
6.1.4.6 Changing the magazine
Press the lever (item 1 in fig. 6.1 - 4, page 310), to release the magazine from the balls of the
snap fasteners (item 5 in fig. 6.1 - 4
, page 310). Lift the magazine off the base.
User manual SIPLACE SX1/SX2/DX1/DX2 6 Station extensions
From software version SC.706.xx Version 06/2012 EN 6.1 Nozzle changer
329
WARNING 6
Any lever that is protruding over the magazine (item 1 in fig 6.1 - 4
) can result in a head crash.
You should therefore make sure that the lever does not protrude over the magazines.
6
Fig. 6.1 - 20 Nozzle changer for the SpeedStar - changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) Spring pin (3 x) for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Locking plate in the "Magazine locked" position
(1)
(2)
(3)
(4)
(5)
(3)
(6)
(3)
(7)
