4 Setting up and commissioning User Manual SIPLACE SX1/SX2/DX1/DX2 4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN 224 4 Fig. 4.3 - 3 Machine feet (height adapter) (example of SX1/SX2) (1) 4…
User Manual SIPLACE SX1/SX2/DX1/DX2 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
223
4.3.6 Replacing machine feet (height adapter)
The machine stands on 4 feet ( height adapter) (see 1 in fig. 4.3 - 2, page 223 )
The corresponding height adapters are available for the various PCB conveyor heights.
4
Fig. 4.3 - 2 Machine height adapter
(1) Hexagon socket head screw for height adjustment
(2) Notch for fixture against falling (locking screw)
(3) Various height adapter dimensions
– Height adapter for PCB conveyor height 900 (Item No. 03067048-xx)
– Height adapter for PCB conveyor height 930 (Item No. 03067046-xx)
– Height adapter for PCB conveyor height 950 (Item No. 03065876-xx)
(3)
(1)
(2)
4 Setting up and commissioning User Manual SIPLACE SX1/SX2/DX1/DX2
4.3 Setting up the machine From software version SC.706.xx Version 06/2012 EN
224
4

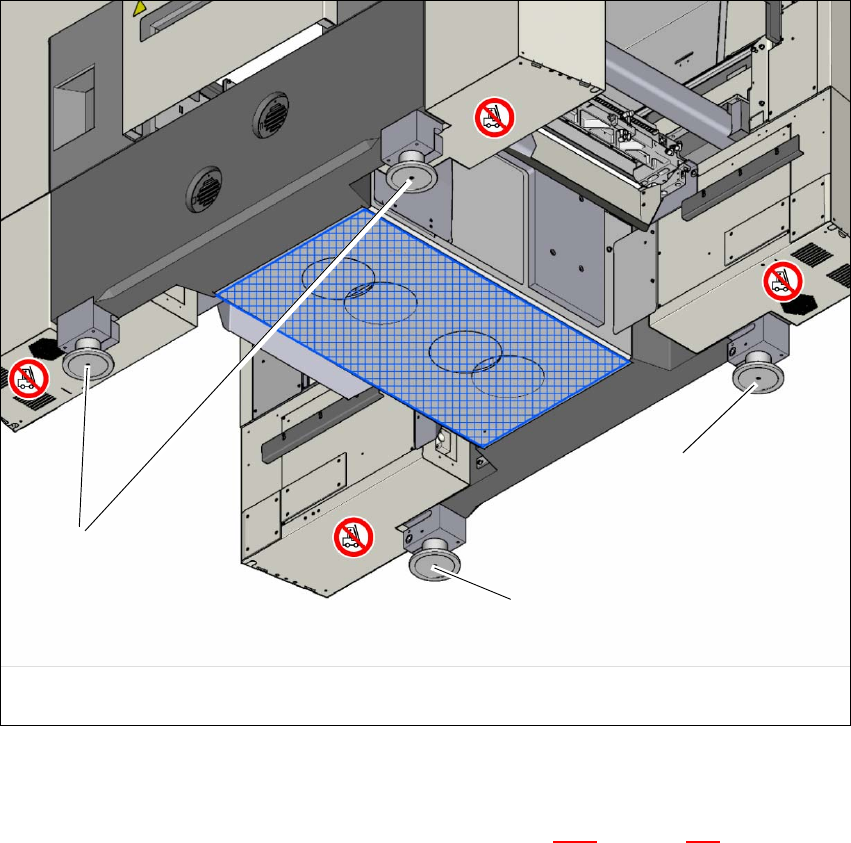

Fig. 4.3 - 3 Machine feet (height adapter) (example of SX1/SX2)
(1) 4 height adapters - for various heights
Push the forks of the fork lift under the machine. See also 4.3.2, on page 219.
With the fork-lift, raise the machine approximately 35 cm. You can now pull the height adapt-
ers down and out.
(1)
(1)
(1)
User Manual SIPLACE SX1/SX2/DX1/DX2 4 Setting up and commissioning
From software version SC.706.xx Version 06/2012 EN 4.3 Setting up the machine
225
4
Fig. 4.3 - 4 Height adapter - adjusting the height
4
(1) Setting screw for adjusting the height
(2) Locking screw
(3) Height adapter
(4) Clamping
(5) Clamping screw
Loosen the locking screw (2). This locking screw fixes the height adapter and prevents it fall-
ing down as soon as the clamp has been loosened.
WARNING 4
After you have loosened the clamp, the height adapter is fixed in the notch with the grub screw
but can still fall down and out.
Hold the height adapter while fastening, to prevent it falling down.
Take care that your hands and feet can not be hit.
Loosen the clamping screw and pull the height adapter down and out.
Check the new height adapter to make sure that the height adjustment screw (1) can be
moved easily. If necessary, loosen the screw and grease the thread with Topas NCA 52.
(3)
(1)
(2)
(4)
(5)
