User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
41
2.2 Warning labels
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering. Their design meets the requirements of ISO 3864-2 and ANSI Z535.4.
The following diagrams show the SIPLACE SX1/SX2 machine. The position of the warning labels
is identical for the SIPLACE DX1/DX2.
2.2.1 Warning labels on the machine
Fig. 2.2 - 1 Warning labels W201, W203, W204 and W210 on the machine - location 2 (example of SX1/SX2)
W203, item no. 03009342-01
W204, item no. 03009343-01
W210, item no. 03009350-01
(T) Direction of PCB transport
W 203
W 210
W 204
2 Operational safety User Manual SIPLACE SX1/SX2/DX1/DX2
2.2 Warning labels From software version SC.706.xx Version 06/2012 EN
42
Fig. 2.2 - 2 Warning labels W201, W203, W204 and W210 on the machine - location 2 (example of SX1/SX2)
W201, item no. 03009338-01
W203, item no. 03009342-01
W204, item no. 03009343-01
W210, item no. 03009350-01
(T) Direction of PCB transport
W 210
W 204
W 203
W 201
User Manual SIPLACE SX1/SX2/DX1/DX2 2 Operational safety
From software version SC.706.xx Version 06/2012 EN 2.2 Warning labels
43

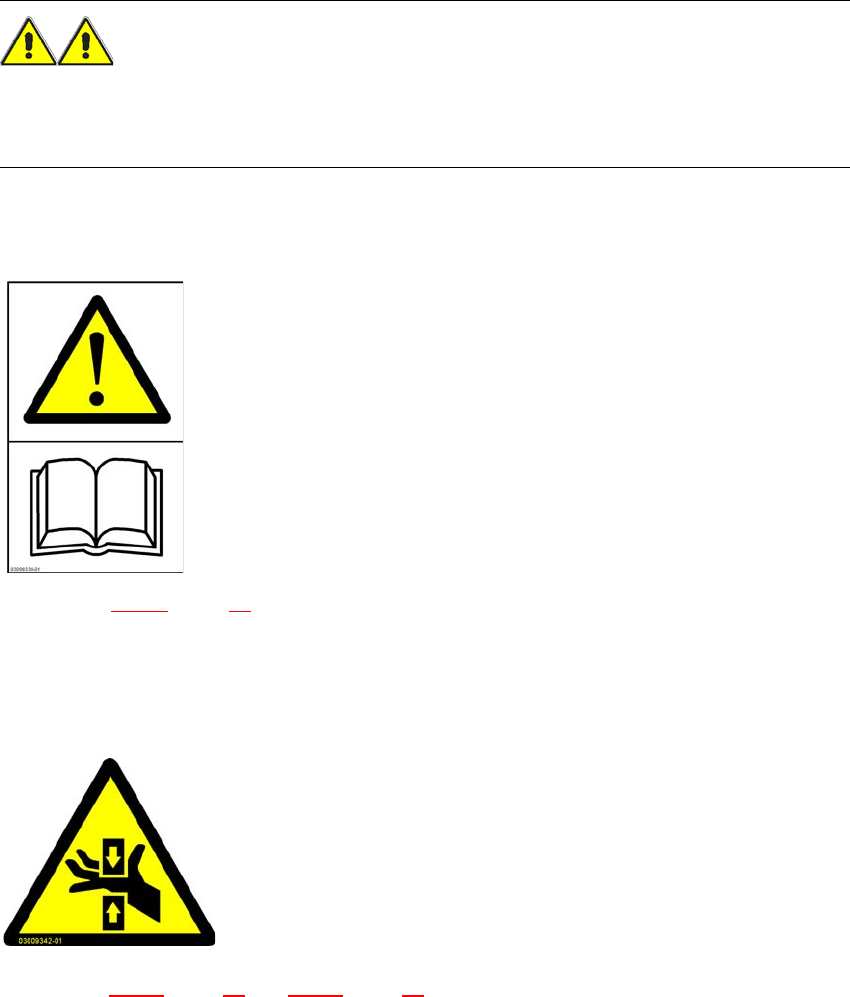

WARNING 2
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any damaged or illegible warning labels.
2.2.1.1 Warning label W201
2
W201 in fig. 2.2 - 1, page 41, item no. 03009338-01 (quantity per machine: 1)
2.2.1.2 Warning label W203
2
W203 in fig. 2.2 - 1, page 41 and 2.2 - 2, page 42, item no. 03009342-01 (quantity per machine: 4)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on
the operator being familiar with the user manual and
safety instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
