3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.10 X feeder modules for SIPLACE SX1/SX2/DX1/DX2 From software version SC.706.xx Version 06/2012 EN
186
3.10.6.1 Description
The energy and data interface allows X feeder modules to be used outside the machine and setup
area. The interface consists of an aluminum frame with omega profile (item 7 in fig. 3.10 - 18
, page
183
) for holding and guiding the feeder modules. As with the X component trolley, the feeder mod-
ule is placed on the omega profile, with the slider guides, and is pushed forwards until the front
centering pin of the feeder module is fully inserted into the locating hole (item 9 in fig. 3.10 - 18
,
page 183
). The locking latch (item 8 in fig. 3.10 - 18, page 183) locks the feeder module in this
position. To remove the feeder module, simply press the release button (item 1 in fig.
3.10 - 18
, page 183 ). The locking latch (item 8 in fig. 3.10 - 18, page 183) is pressed down and
releases the feeder module. Fold-out feet (item 6 in fig. 3.10 - 18
, page 183) stabilize the position
of the energy and data interface, particularly for wide feeder modules.
The electronic housing (item 5 in fig. 3.10 - 18
, page 183) holds the electronic control unit for the
energy and data interface. The operator panel (item 2 in fig. 3.10 - 18
, page 183) consists of start
and stop buttons and two status LEDs. Communication with a PC takes place via the data cable
(item 3 in fig. 3.10 - 18
, page 183 ). The power supply cable (item 4 in fig. 3.10 - 18, page 183) is
connected to the power supply unit provided.
3.10.6.2 Usage
The energy and data interface is used to check, maintain and repair X feeder modules. It can also
be used for setting up in advance for PCB production. In this case, the energy and data interface
is fixed to the base plate (item 10 in fig. 3.10 - 20
, page 185). The tape reel holder (item 11 in fig.
3.10 - 20
, page 185) is also mounted on the base plate. When a component tape is inserted, you
can check or reset the increment, pick-up position and conveyor speed. The detailed user manual
describes how to use the interface and the necessary servicing work.
3.10.6.3 Scope of delivery
– Single Slot EDIF
– Power supply, 100 - 120 / 200 - 240 VAC, +30VDC, 4.3 A
– Base plate with tape reel arm
– User manual
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.11 Component trolley for SIPLACE SX1/SX2
187
3.11 Component trolley for SIPLACE SX1/SX2
Item no. 00519922-xx Component trolley for SIPLACE SX1/SX2 with 60 tracks
Item no. 00519722-xx Component trolley for SIPLACE SX1/SX2 with 30 tracks
The SIPLACE SX1/SX2 machines can accommodate two SIPLACE SX1/SX2 component trolleys,
each with 60 tracks. If a WPC5/WPC6 is set up at one of the locations, the other location can ac-
commodate a component trolley with 30 tracks.
3

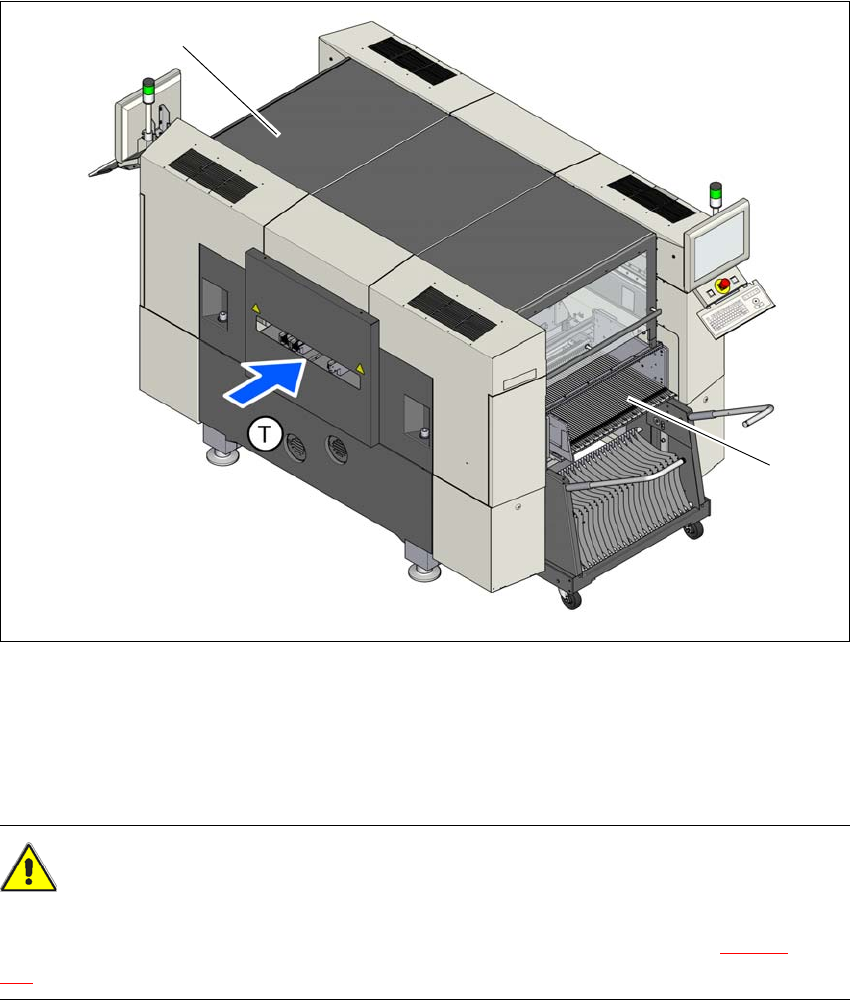

Fig. 3.11 - 1 Component trolley locations, SIPLACE SX1/SX2
(1) Location 1
(2) Location 2
(T) Direction of PCB transport
CAUTION 3
The SIPLACE SX1/SX2 component trolleys may only be docked onto locations at which the
component trolley docking unit for the SIPLACE SX1/SX2 has been installed (fig. 5.15 - 4
, page
300 ).
(2)
(1)
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.11 Component trolley for SIPLACE SX1/SX2 From software version SC.706.xx Version 06/2012 EN
188
The component trolleys are stand-alone modules that can be set up with feeders at an external
setup area. This means that the production process only has to be interrupted briefly in order to
change the component trolley.
3

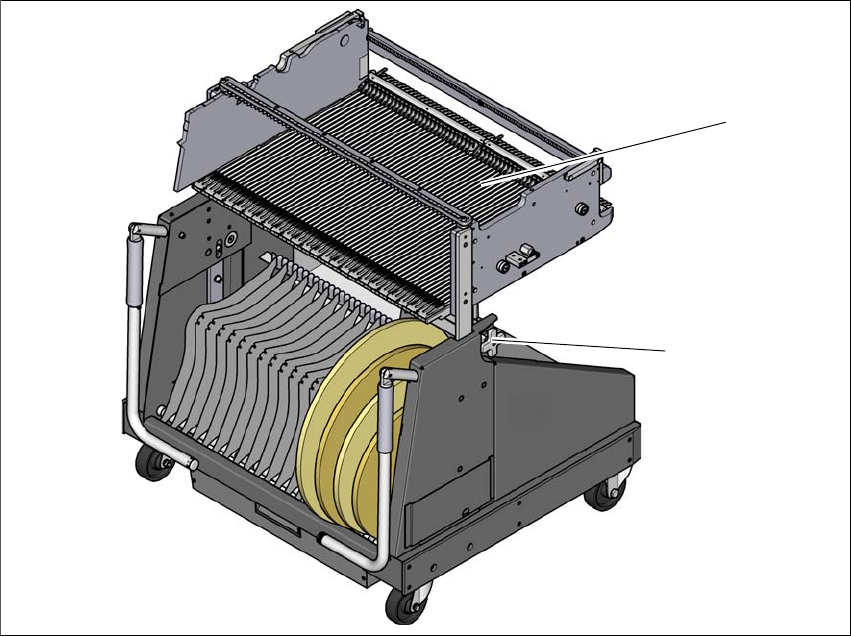

Fig. 3.11 - 2 Component trolley, SIPLACE SX1/SX2
(1) Changeover table with 60 tracks
(2) Height setting for fine adjustment to the machine height
3.11.1 Structure
The component trolley essentially consists of the chassis, the changeover table for holding the
feeder modules, the tape reel container and the waste tape container. There are two different com-
ponent trolleys available. One component trolley has a changeover table with 60 tracks and the
other one has a changeover table with 30 tracks. The component trolley with 30 tracks must be
set up next to the WPC5/WPC6.
(2)
(1)
