1 Introduction User Manual SIPLACE SX1/SX2/DX1/DX2 1.3 Machine description From software version SC.706.xx Version 06/2012 EN 24 Use of th e machine other than as prescrib ed includes, for exam ple – operation of the pla…

User Manual SIPLACE SX1/SX2/DX1/DX2 1 Introduction

From software version SC.706.xx Version 06/2012 EN 1.3 Machine description

1.3.3 EU Declaration of Conformity

The product/device described below

Product: Placement machine

Type: SIPLACE SX1 SIPLACE SX2

item no.: 00519800 00519850 1

Product: Placement machine

Type: SIPLACE DX1 SIPLACE DX2

item no.: 00120600 00120610 1

manufactured by

ASM Assembly Systems GmbH&Co.KG

Rupert-Mayer-Str. 44

81379 Munich 1

conforms to the regulations and standards listed in the EU Declaration of

Conformity provided.

1.3.4 Use as prescribed

The product may only be used for the areas of application specified in the catalogues and techni-

cal descriptions i.e. for the placement of SMD components and may only be used together with

the third party devices and components recommended or approved by ASM Assembly Systems

GmbH & Co. KG. Use for a different or extended purpose is not prescribed.

In the case of incorrect usage, ASM Assembly Systems GmbH & Co. KG will not assume liability

for any damage which occurs and will not guarantee the correct and proper function of machine

components.

Use as prescribed also includes compliance with all the instructions in the user manual.

For the product to operate correctly and reliably, it must have been transported, stored, erected

and assembled correctly and must be operated and maintained with care.

1.3.5 Failure to use as prescribed

Failure to use the product as prescribed can result in both danger to life and limb and material

damage. For this reason, used other than as prescribed is expressly prohibited. In the case of in-

correct usage, ASM Assembly Systems GmbH & Co. KG will not assume liability for any damage

which occurs and will not guarantee the correct and proper function of machine components.

1 Introduction User Manual SIPLACE SX1/SX2/DX1/DX2

1.3 Machine description From software version SC.706.xx Version 06/2012 EN

Use of the machine other than as prescribed includes, for example

– operation of the placement machine with safety equipment deactivated or removed.

– placement of components that do not meet the permitted specification.

– use of component feeder modules that have not been approved.

– use of unauthorized accessories and additional modules.

– use of the placement machine by unqualified personnel.

– operation of the placement machine without the hand guard (dummy feeder module) if not

every location is occupied with a feeder module.

– unclear allocation of electrical connecting cables to each machine and the installed options.

– if there are two or more people standing at a component trolley location or a DX changeover

table at the same time during the retrofit.

– persons standing on the cover plates and protective hoods.

1.3.6 Noise emissions

1.3.7 Important notes on environmentally-friendly disposal of materials

and components

SIPLACE machines are preferably manufactured using materials and parts that can be easily sep-

arated and disposed of in an environmentally-friendly way.

PLEASE NOTE 1

The owner of the system has sole responsibility for the proper environmentally-friendly disposal

of machines, working materials, consumables and wear parts.

 Please observe your national statutory provisions for waste disposal and environmental pro-

tection.

1.3.8 Electromagnetic compatibility (EMC)

SIPLACE placement machines are designed and tested for professional use in industrial applica-

tions. Electromagnetic compatibility in terms of the emission of interference cannot be guaranteed

in any other environment.

Max. noise emissions 75 dB (A)

User Manual SIPLACE SX1/SX2/DX1/DX2 1 Introduction

From software version SC.706.xx Version 06/2012 EN 1.4 Line concept

1.3.9 Note on original SIPLACE accessories

 Only use original spare parts and authorized accessories from ASM Assembly Systems

GmbH&Co.KG. The use of other parts will affect safety and will invalidate the liability for any

consequential damage.

1.4 Line concept

1.4.1 Description of the recommended line concept

The SIPLACE concept is distinguished by its flexibility, modularity, compact design and high

performance. It allows a production line to be individually configured from identical and different

modules. If the production requirements change, the individual placement machines are so com-

pact that they can be recombined quickly and easily.

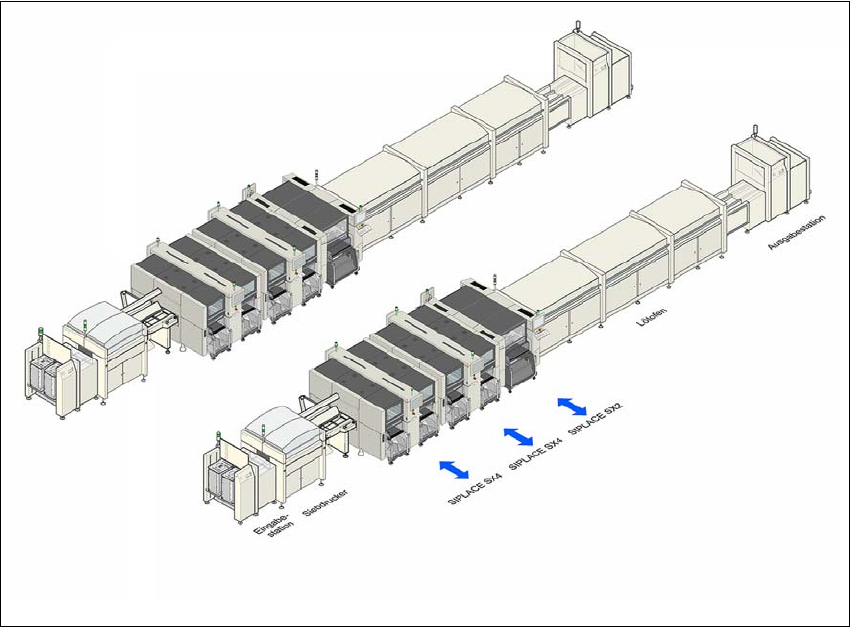

Fig. 1.4 - 1 Line concept (example of SX line)

The SIPLACE family offers the ideal placement system for each individual performance require-

ment.
