User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies From software version SC.706.xx Version 06/2012 EN 3.4 Dimension s and weight 113 3.4.5.2 DX1/DX2 machine center of gravity 3 Fig. 3.4 - 6 Center of gra…
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.4 Dimensions and weight From software version SC.706.xx Version 06/2012 EN
112
3.4.5 Center of gravity
3.4.5.1 SX1/SX2 machine center of gravity
3
Fig. 3.4 - 5 Center of gravity for SX1/SX2 machines in millimeters
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 738.5 mm
These center of gravity coordinates relate to placement machines with a PCB conveyor height of
900 mm.
User Manual SIPLACE SX1/SX2/DX1/DX2 3 Technical data and assemblies
From software version SC.706.xx Version 06/2012 EN 3.4 Dimensions and weight
113
3.4.5.2 DX1/DX2 machine center of gravity
3
Fig. 3.4 - 6 Center of gravity for DX1/DX2 machines in millimeters
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 738.5 mm
These center of gravity coordinates relate to placement machines with a PCB conveyor height of
900 mm.
3 Technical data and assemblies User Manual SIPLACE SX1/SX2/DX1/DX2
3.5 Overview of the assemblies From software version SC.706.xx Version 06/2012 EN
114
3.5 Overview of the assemblies
3.5.1 Overview of SIPLACE SX2 assemblies
3
3

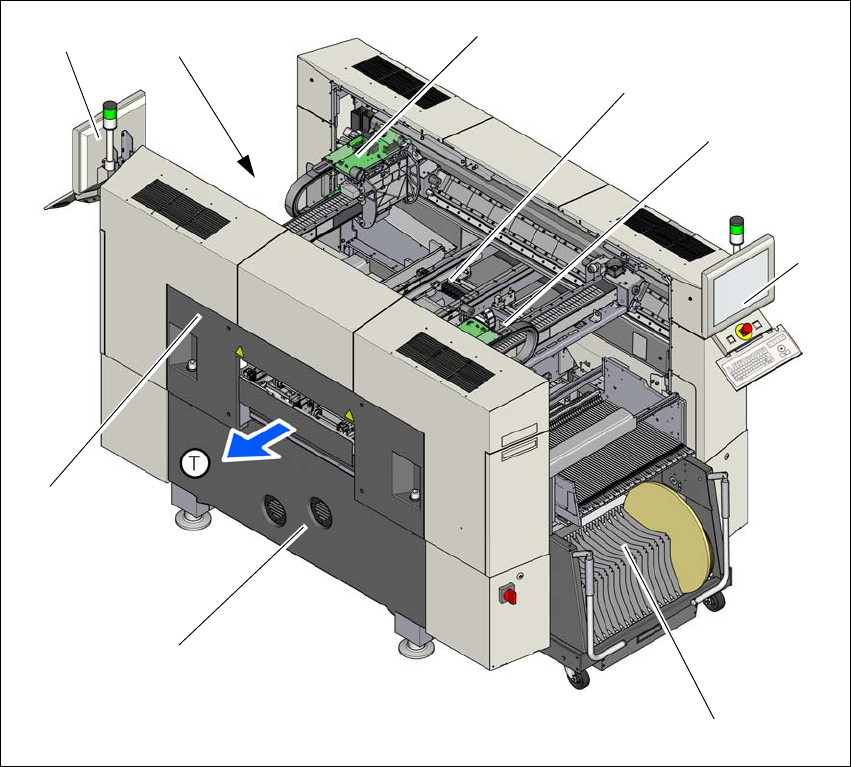

Fig. 3.5 - 1 SX2 machine - overview of assemblies
(1) Basic module
(2) Robot module
(3) Gantry 2 with placement head
(4) PCB conveyor (single or dual conveyor)
(5) Gantry 1 with placement head
(6) Monitor with keyboard (2x)
(7) Component trolley at location 1
(8) Location 2 with docking unit, tape cutter, empty tape duct
(T) Direction of PCB transport
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(6)
(8)
