Operating Manual Reference Figure CP-45/55 Operation Process ^ <Prohibited> List Box Set this in order that the Feeder Lane not allowable to arrange on the Feeder Unit or ANC, Camera, etc. is to be shown in this ar…
Operating Manual Reference Figure
CP-45/55 Operation Process
F and R in the number of
Feeder Lane represents the front
Feeder Base and the Rear Feeder
Base respectively.

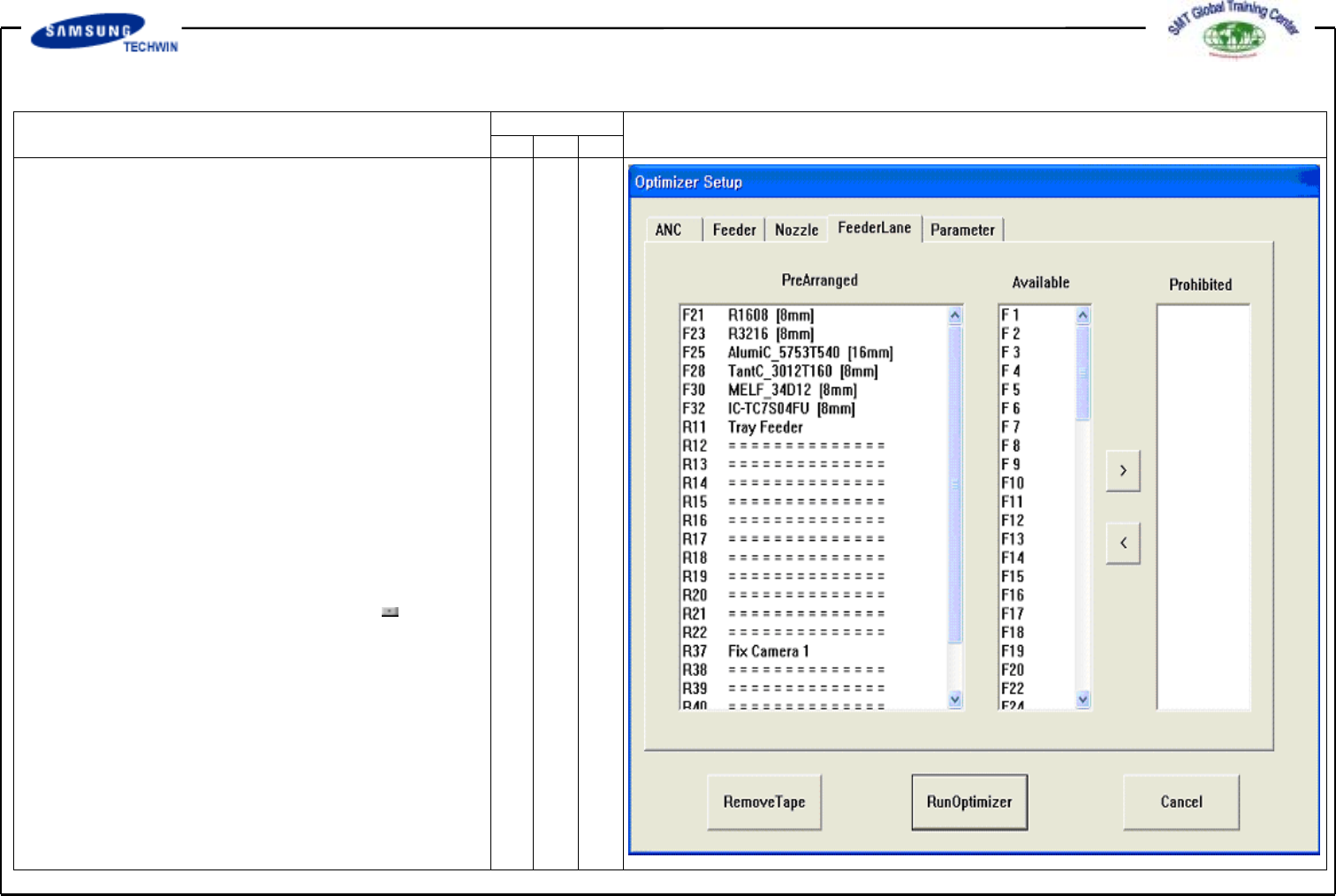

^ <Available> List Box
This displays the available
Feeder Lane for arranging
newly the Tape Feeder, Stick
Feeder Unit, Moving ANC,
Feeder Lane Fixed Camera Unit,
etc. If you don't want to arrange
any unit on the certain feeder
lane, click the arrow button
and move to the <Prohibited>
List Box.
Operating Manual Reference Figure
CP-45/55 Operation Process
^ <Prohibited> List Box
Set this in order that the
Feeder Lane not allowable to
arrange on the Feeder Unit or
ANC, Camera, etc. is to be
shown in this area. The
optimizer does not arrange any
unit on the lane shown in this
area. However, it is needless to
assign separately the lane on
<Prohibited> in consideration of
widths of Feeder Unit or ANC,
Camera Unit, etc. The optimizer
can arrange the unit to be
arranged on the Feeder Lane
without mechanical interferences
in consideration of its width.
Use the arrow buttons
and
for movements between
<Available> and <Prohibited>
List Boxes.
Operating Manual Reference Figure
CP-45/55 Operation Process

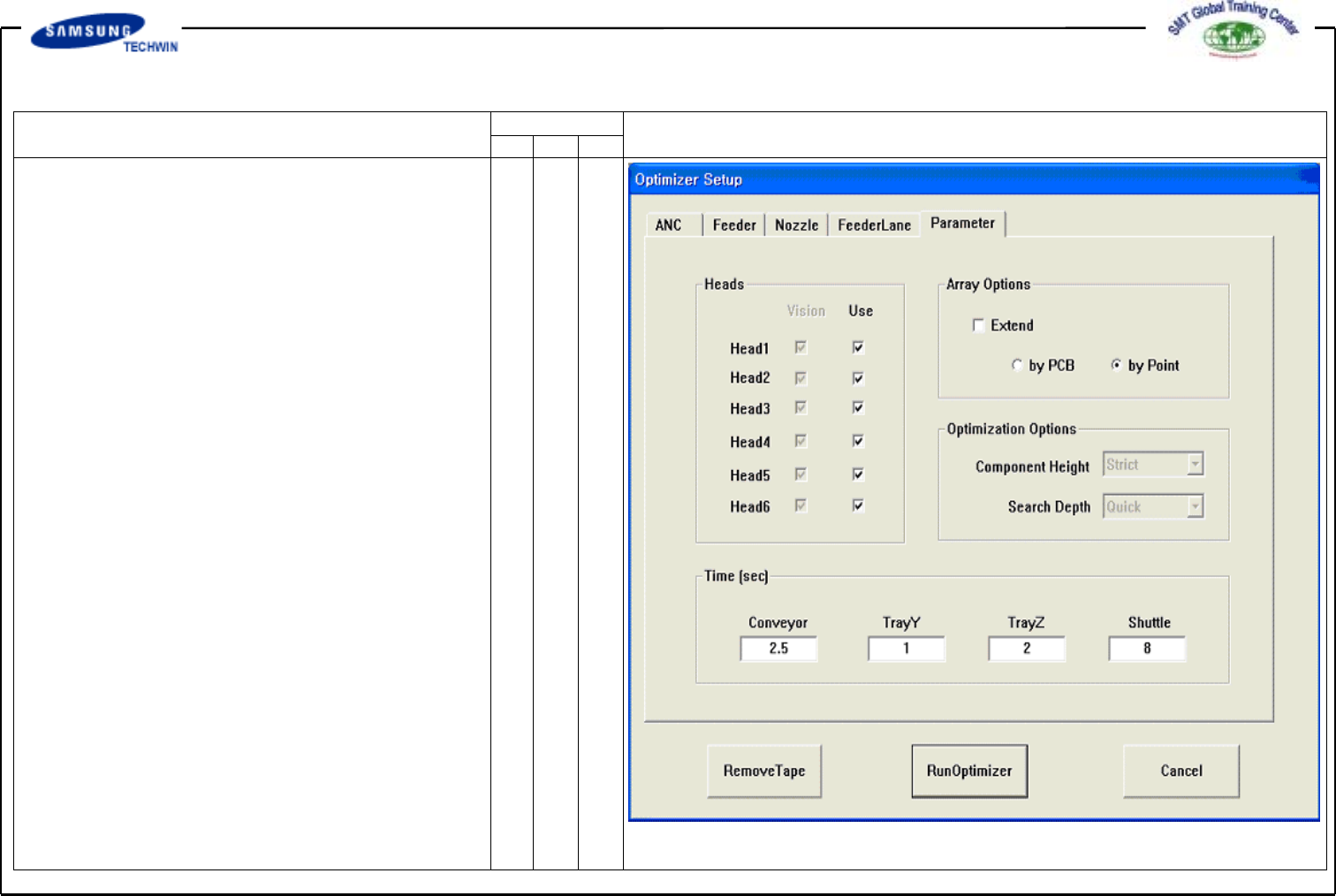

* Setup Menu/Parameters
This screen is to set the option
and parameters which are used
when executing the Optimizer
finally.
^ <Head> Check Box
This is to set the use existence
by individual head and the
work existence of part arranged by
use of vision array part. Vision
check box is to be checked when
editing the vision arranged part on
relevant head, for Full Vision unit
such as CP-45FV, leave it with all
checked conditions. Use check
box shows whether the relevant
head is to be used or not. For
example, if it is impossible to
work Head3 caused that some
problems occur to it, click the
Use check box of Head3 to
make empty. Resulted that, the
Optimizer creates the work
program with remaining heads
except for the prohibited head.
