Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
Fig.03
a
c
b
d

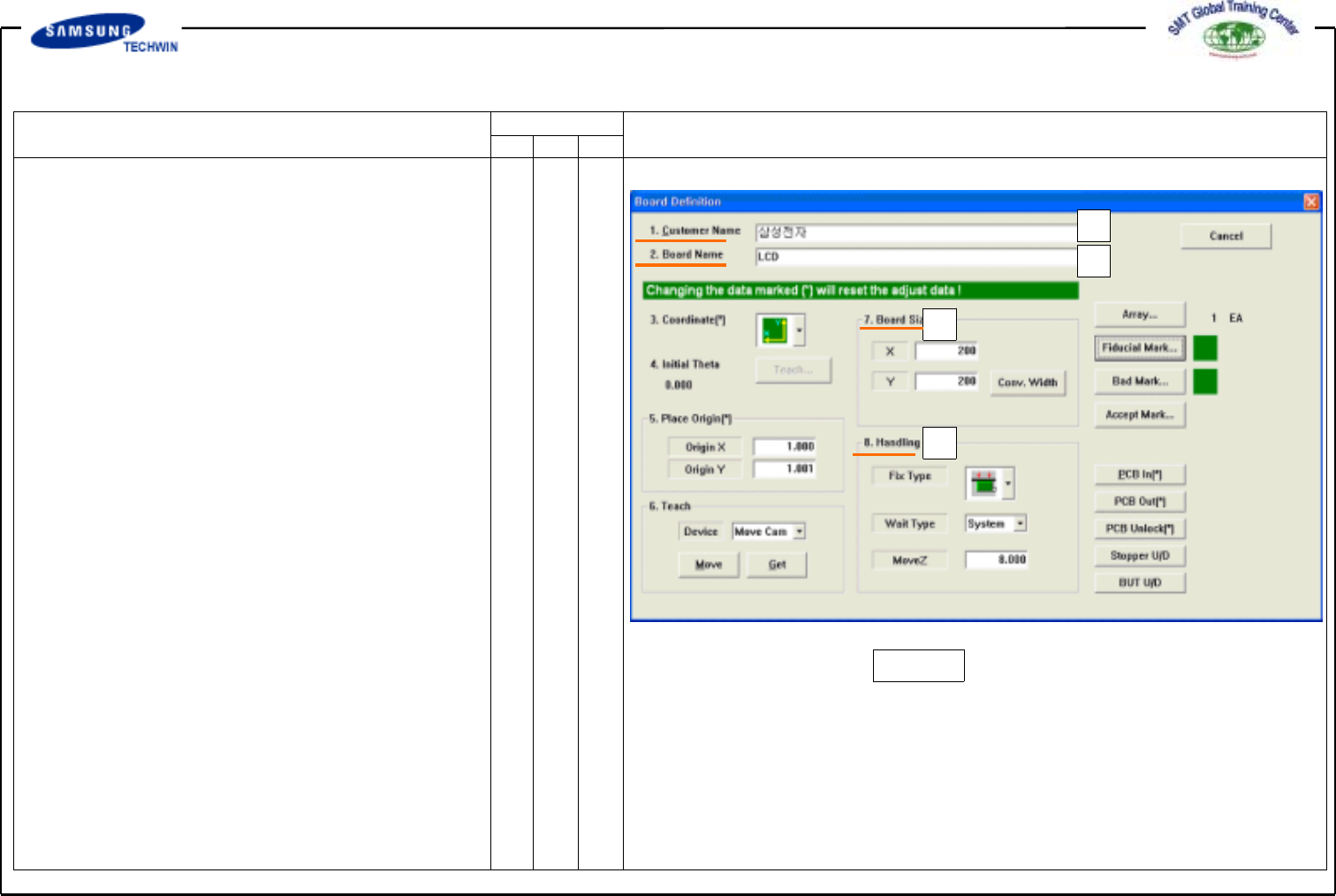

3.PCB Edit (1)
This defines data related to name, size,
origin point, etc. of Board.
3.1) Board
3.1-1) Board Definition
*a:
<1. Customer Name> Edit Box
Input a name of a customer who
requests PCB works. Number of
input letter is limited to the max
64 letters. Input a name of
customer in Korean or English.
*b:
<2. Board Name> Edit Box
Input name of PCB. Number of
input letter is limited to the max
64 letters. Input Board name in
Korean or English. Board Name
will be shown on Production
Monitor when production.
*c:
<7. Board Size> Area
As an area for inputting Board
Size, this is to adjust Work Area
and Conveyor Width.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
* Conv.Width Button:
To be used when adjusting Convey
WidthtoBoard.Clickthisbuttonto
adjust the width.
Board X, Y
Input size by measuring it in mm.
v
<X> Edit Box
To select X value of Board size.
v
<Y> Edit Box
To select Y value of Board size.
v
<Z> Edit Box
To select Z value(Thickness) of
Board size.
*d:
<8. Handling> Area
To select data required for
PCB works.
v
<Fix Type> Combo Box
To select the method for fixing
Board to work area. Select
Edge Fixer in here.
