Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

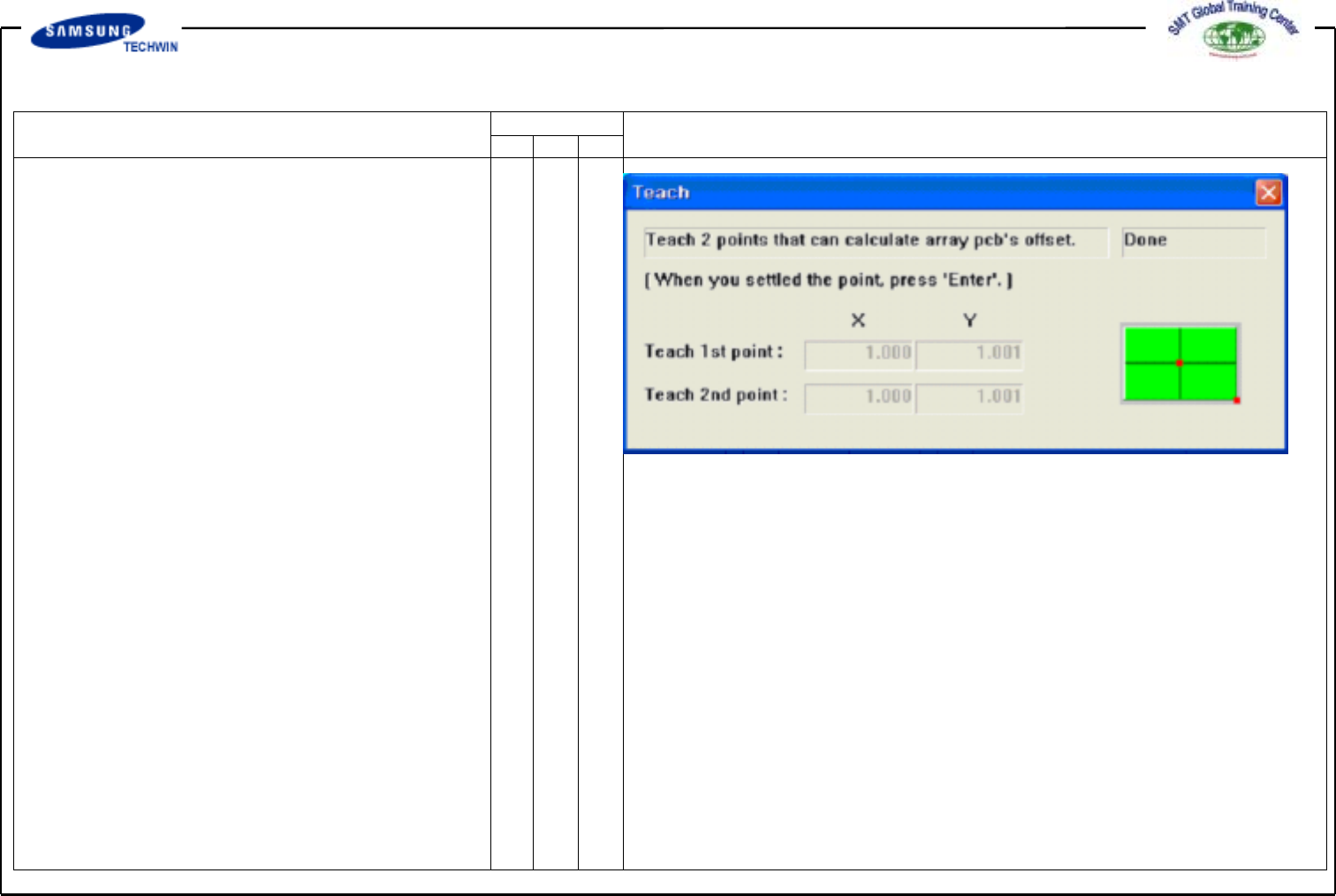

Fig. 03. Screen of Array PCB Offset Teach Finished

-> <Apply> Button

To create the Array PCB Data

automatically with the values set in

this area.

<1.Array>

Move the setup position with the

Move Camera to check for its

correct position.

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

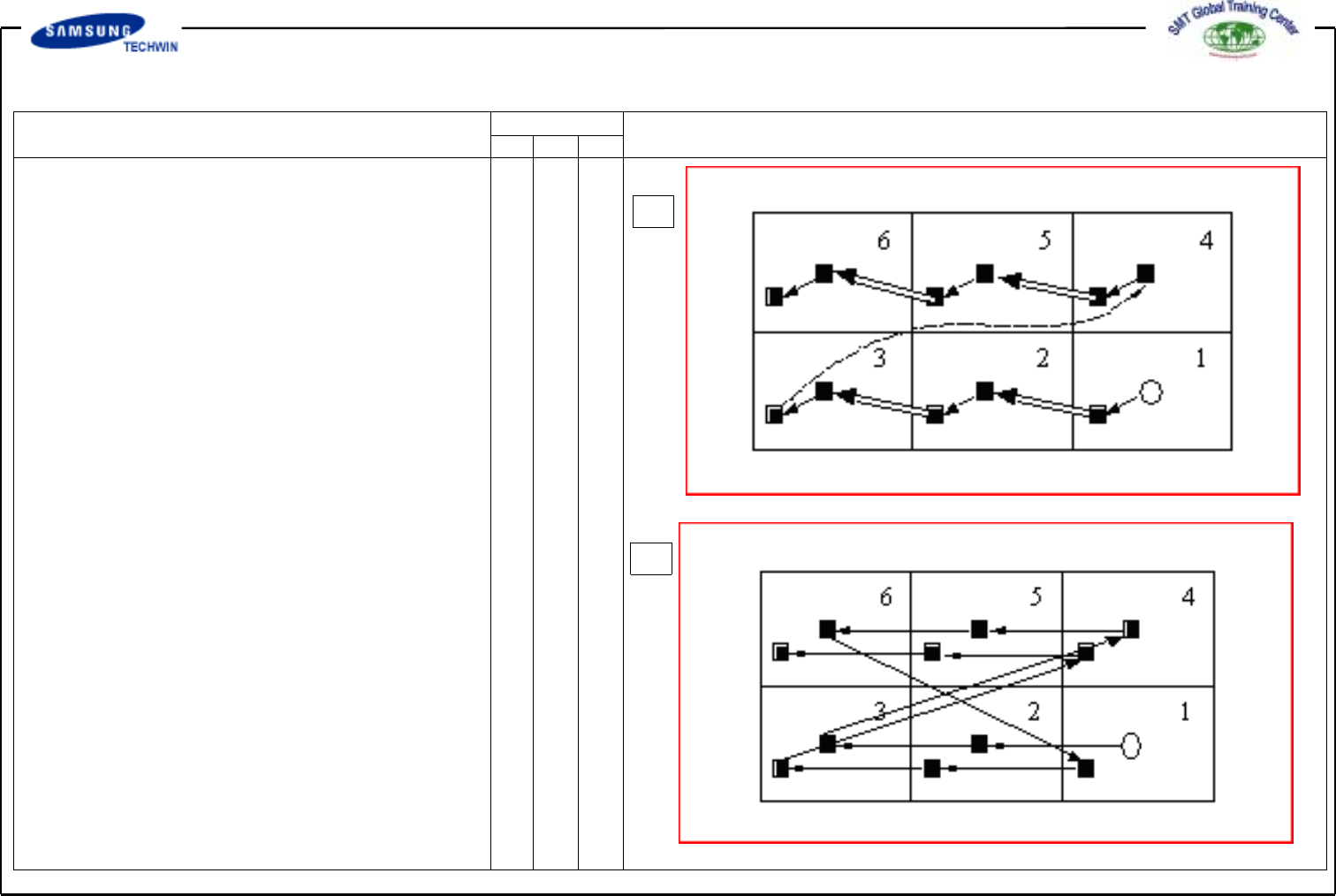

^ <3. Sequence> Area

To select the Array PCB edit

type.

-> 1. <By PCB> Option Button

This type is to execute the

following Array PCB work after

finishing one Array PCB work.

-> 2. <By Point> Option Button

This type is to execute the

following Cycle work after

finishing one Cycle work on all

of Array PCBs.

^ <5. Add Value> Area

To set X, Y and R values to

add in grid-row of <1. Array>

Area. If you click "Add" button

after setting the value to add,

the set value will be add in

grid-row in question.

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

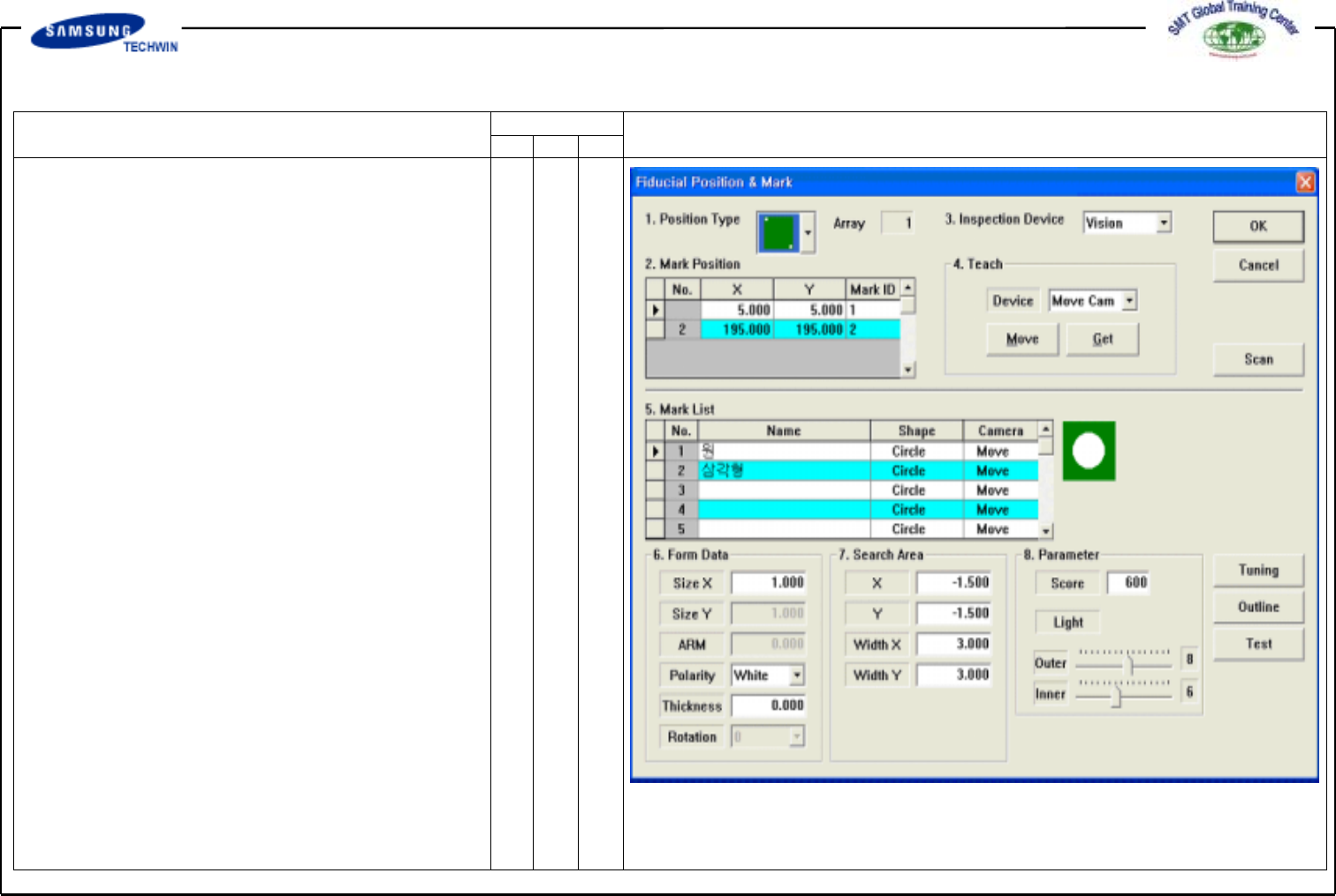

fig 04. “Fiducial Position & Mark”

2.1-2) Fiducial Position & Mark

(Fiducial Definition)

To set the position of Fiducial Mark

and Mark Data if there is Fiducial

Mark on PCB Board.
