Operating Manual MODEL Reference Figure CP-45/55 Operation Process V <Scan> Button This executes the Scan Test for the the set Fiducial Mark. By this Scan Test, the actual Mark is tested with the set Fiducial Mark …
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V
<Test> Button
This inspects the Mark by using
the set Mark Data.
If you use this, you can check
whether the set Mark Data is
correct or not.
If an inspection is completed
successfully, a Message Box as
shown in the right will be shown.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V
<Scan> Button
This executes the Scan Test for the
the set Fiducial Mark. By this Scan
Test, the actual Mark is tested with
the set Fiducial Mark Position and
the Mark Data and also the tested
results are shown as follows. The
position of Fiducial Mark shown in
the right Figure refers to the position
of Mark resulted from Scan Test.
Click "Yes" button to reflect this
value, if not so, click "No" button.
This is to compensate correctly the
Mark position inputted by using the
registered Mark Data. Apply the
process 2 times or more.
2.2)
Part (Work Pard Register)
2.2-1)
New Part Register
V

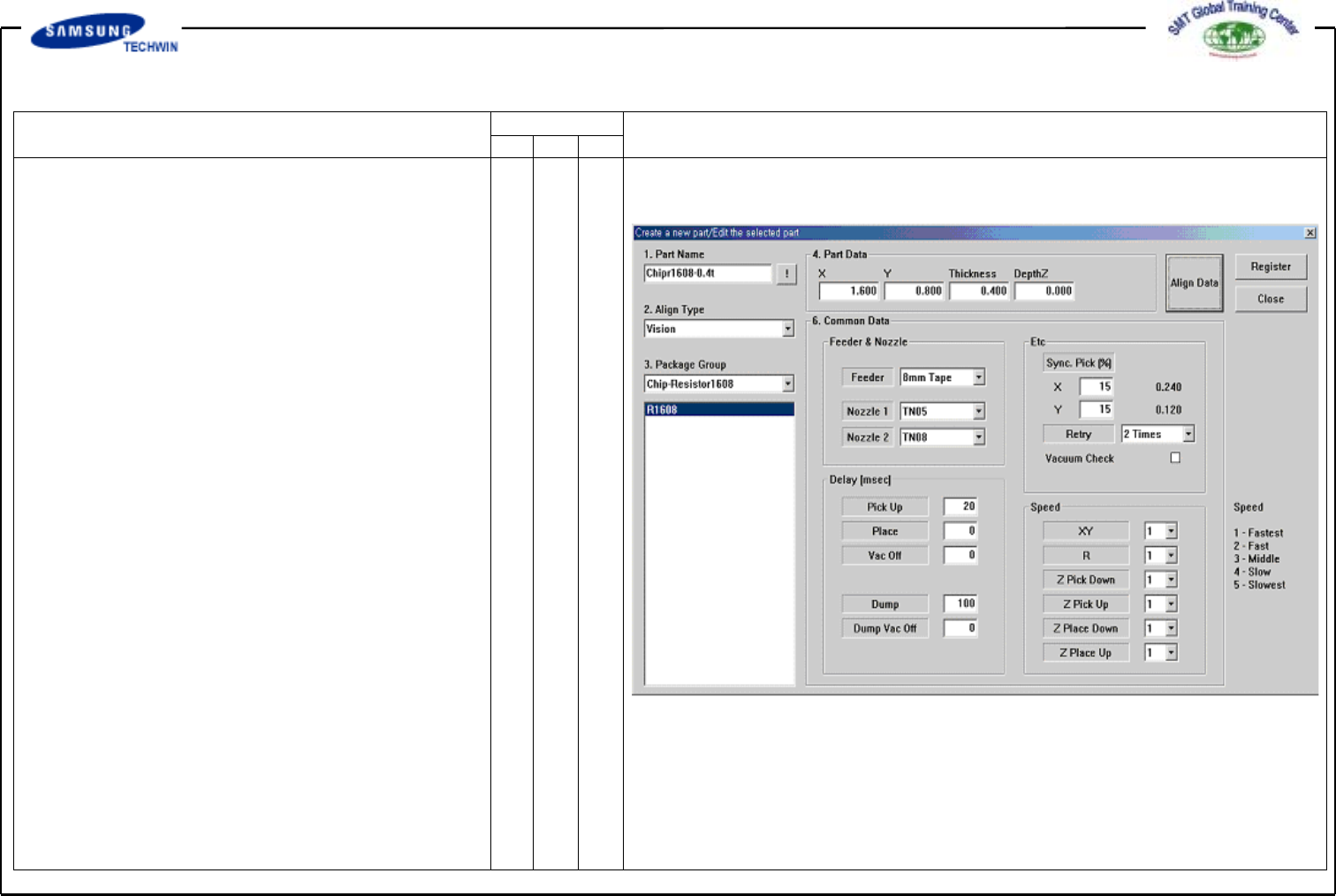

Chip (Resistor 1608,0.4t, 8mm,
TN05, TN08) Register
Click <New Part…>buttononthe
left of the bottom of a screen.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
^ Create the Part Name.
Chipr1608-0.4t)
^ Set Group to Chip Resistor 1608.
^ Enter the Part Size.
Align Data - X: 1.6, Y: 0.8
Enter the thickness of Part Data.
At this time, X and Y values read
automatically the Align Data.
^
Enter the Common Data by
pressing <Common Data> button.
^ Select 8mm Tape on <Feeder>
Combo box.
^ Select TN05 and TN08 on
<Nozzle 1> and <Nozzle 2>
Combo Box separately.
Register the part by clicking the
<Register> button.
