Operating Manual MODEL Reference Figure CP-45/55 Operation Process # Select the Camera to apply actually and adjust the light. Execute the Test again.

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

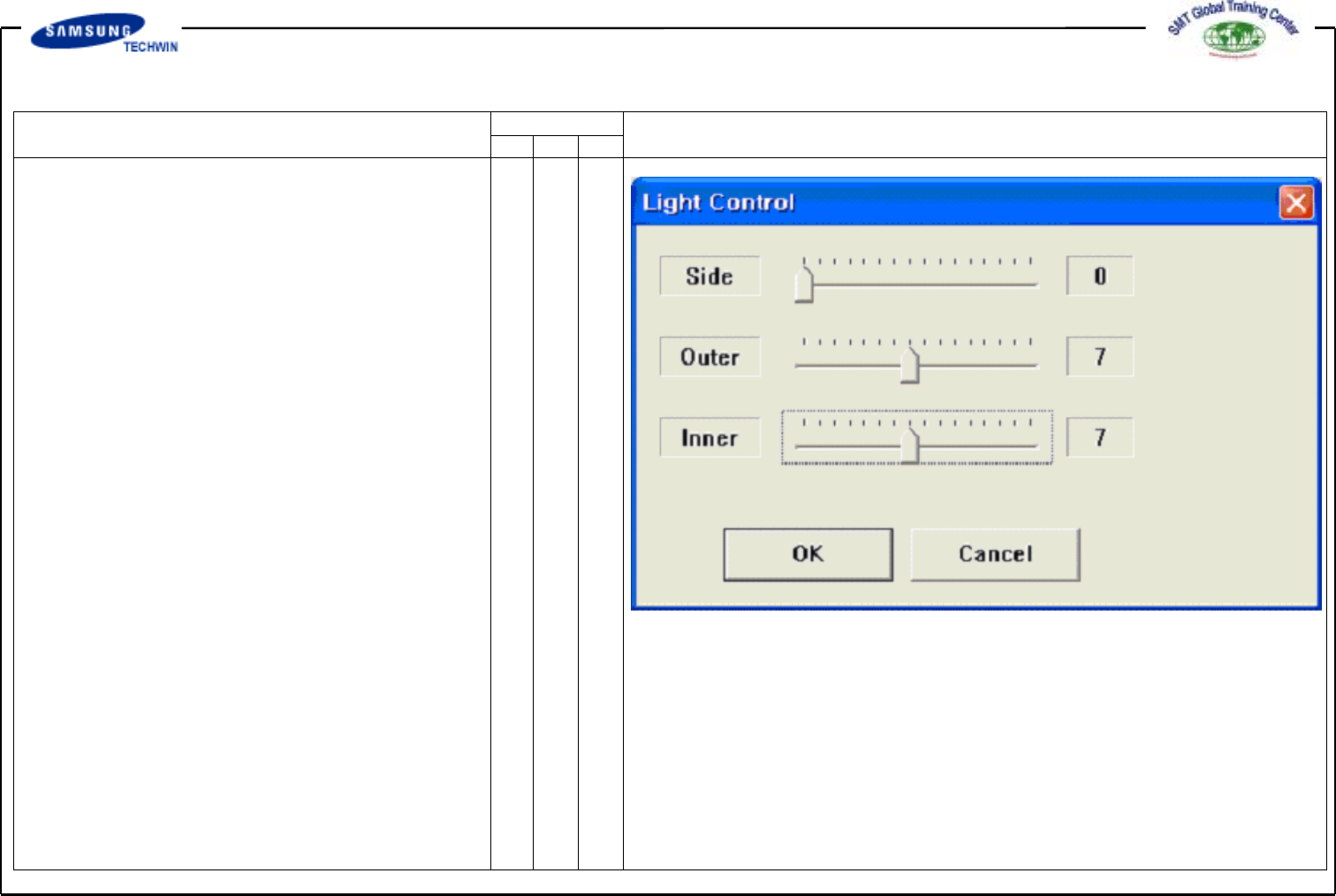

# Set the light by clicking

the <Light Control> button.

# <Auto Teach> Button

This calculates automatically the

Align Data of part. If Auto Teach

completed successfully, "Good"

will be displayed on <Result>

area. Auto Teach is supported

only for SOP, QFP and PLCC.

Save the Align Data calculated

by Auto Teach by clicking the

<Update> Button and close the

Message Box.

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

# Select the Camera to apply

actually and adjust the light.

Execute the Test again.

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

Enter the Common Data by

pressing the <Common Data>

button.

Select the Multi Stick on

<Feeder> Combo Box.

Select TN22 and TN22 on

Combo Box separately.

the <Register> button.
