Operating Manual MODEL Reference Figure CP-45/55 Operation Process Enter the Common Data by pressing the <Common Data> button. Select FW-20S on < Feeder> Combo Box. Select TN110 and TN110 on <Nozzle 1> …
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
Screen displayed when removing
the Ball on the range selected
in the right figure will be shown
as follows.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
Enter the Common Data by
pressing the <Common Data>
button.
Select FW-20S on <Feeder>
Combo Box.
Select TN110 and TN110 on
<Nozzle 1> and <Nozzle 2>
Combo Box separately.
Register the Part by clicking
the <Register> button.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
2.3)
Feeder (Feeder Register)
V
Tape Feeder:
Register by Optimizer.
V
Stick Feeder: Multi Stick (SOP)
V
Tray Feeder: FW-20S
(QFP, BGA)

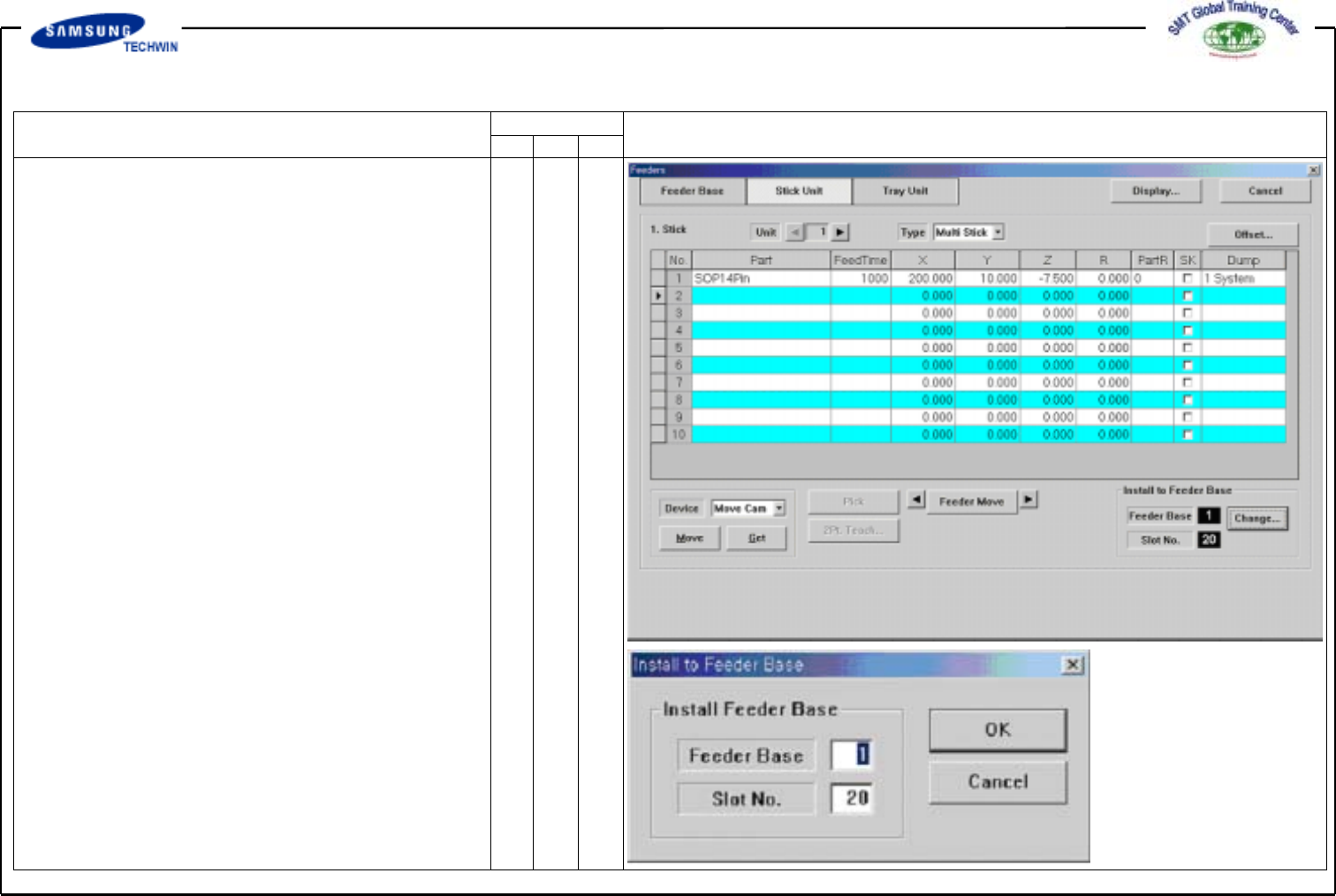

2.3-1)
Stick Feeder
Select the Stick Unit menu in
Feeders Dialogue Box.
V
Select the type.
(Multi Stick)
V
Select the part. (SOP14Pin)
V
Pickup Position
Definition(Device):
X, Y (Move), Z (Head)
V
Feeder Base Definition
: Change Button Click / Base, Slot
Definition
V
Refer to 1.2 Feeder in Operations
Manual for more information.
