Operating Manual Reference Figure
CP-45/55 Operation Process
Class Noise Type Cause Corrective Actions
X,Y Axes Noise
.Resonance of drive motor .Motor drive failure or abnormal motor gains. .Contact our C/S.
.Coupling vibration .Coupling bolt failed to be tightened securely .Tighten bolt with specified torque.
.Excessive mechanical noise on
ball screw
.Metal friction caused by improper lubrication .Lubricate a ball screw(Oiling).
.Irregular mechanical noise on
LM guide
.Small chips or dust particles are adhered to
belt or a surface of pulley.
.Metalfrictioncausedbyimproper
lubrication
.Clean out the surface of LM guide.
.Proper lubrication.
Conveyor Noise
.PCB drive belt
.Excessive mechanical noise on
conveyor width control
.Belt is too tout or loosened.
.Small chips or dust particles are adhered to
belt or a surface of pulley.
.Metalfrictioncausedbyimproper
lubrication
.Adjust the tension of belt.
.Clean out the surface of pulley.
.Lubricate the width adjusting screw.
Z Axis Noise
.Drive motor noise
.Belt is too tout
.Small chips or parts are seized between belt
and pulley.
.Adjust the tension of belt.
.Clean out the foreign materials
adhered between belt and pulley.
Hydraulic Hose
.Pressure leakage .Hydraulic hose failure.
.Find out the leaking part and
replace it with new one.
Fan .Air resistance noise .Small chips or dust particles are adhered to
fan cover.
.Clean out a hold of fan cover.
1.3
Noise
Caution
Operating the system without taking corrective action
for abnormal noise above may have an effect on the
lifetime of the system. Be sure to run the system
after taking the corrective actions.
Operating Manual Reference Figure
CP-45/55 Operation Process
@
Tape Feeder Training Guideline

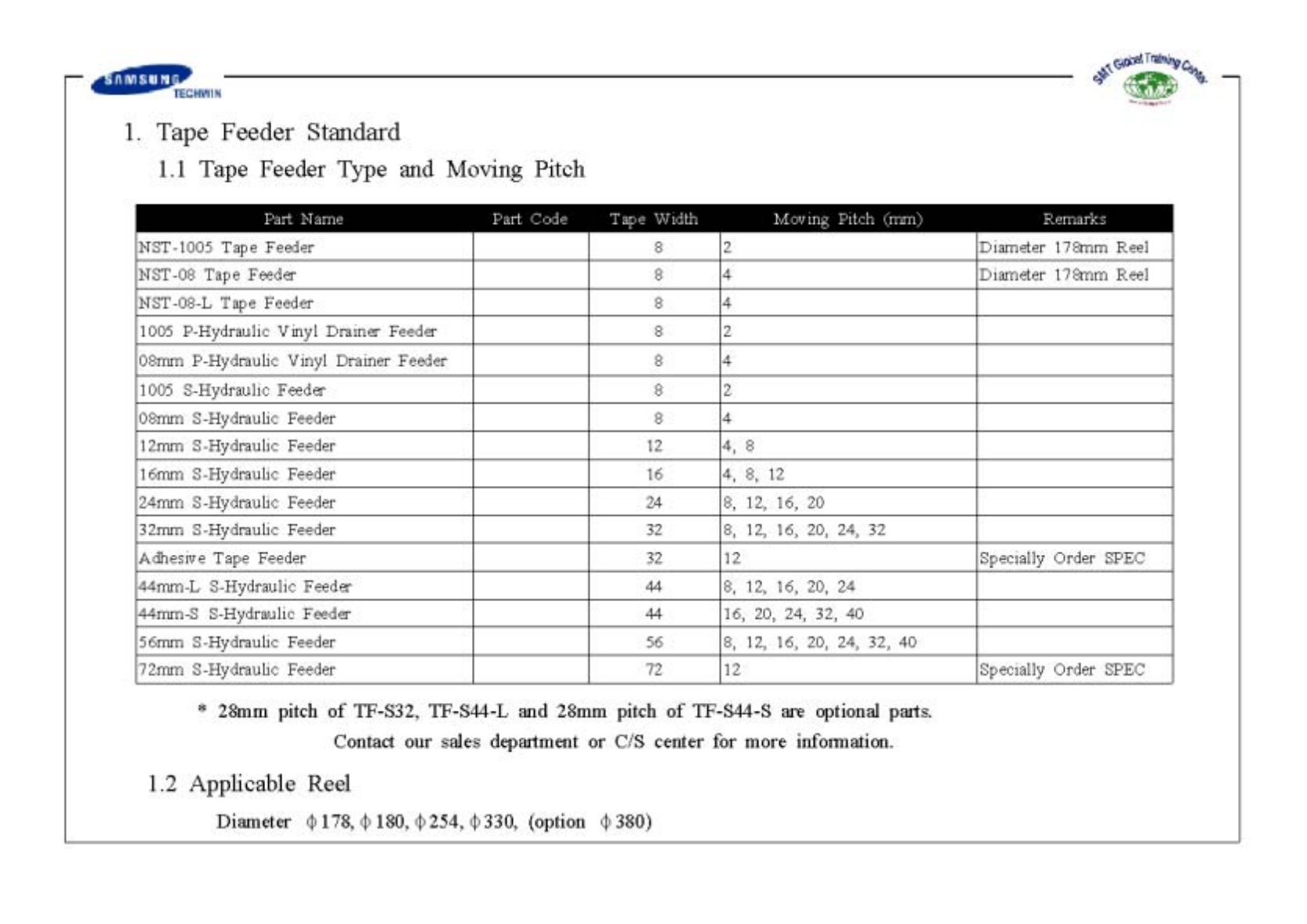

1. Tape Feeder Standard
1.1 Tape Feeder Type & Moving Pitch
1.2 Applicable Reel
2. Tape Installation
2.1 Tape Installation
2.1.1 Tape Guide Disassembly
2.1.2 Back Up Guide Fixing
2.1.3 Separation of Upper Cover Tape(Vinyl) from Feed
Tape
2.1.4 Attaching Feed Tape to Sprocket
2.2 Upper Cover Tape Handling Method
2.2.1 S-hydraulic Tape Feeder
2.2.2 P-hydraulic Tape Feeder (Drain-type Feeder )
2.2.3 Non Stop Tape Feeder
3. Difference between The Existing Feeder and
Non Stop Tape Feeder
3.1 Development Drawing
3.2 Difference Analysis
3.2.1 Difference of Tape Guide Fixing Part
3.2.2 Difference of Feeder " Z Axis " Control
3.2.3 Difference of Clamp Type
3.2.4 Waste Vinyl Treatment Structure & Other Differences
4. Adjustment of Regular Position of Tape Feeder
4.1 Inspection Jig
4.1.1 Features of Product
4.1.2 Product Configuration and Name
4.1.3 Installation Guide of Product
4.2 Inspection and Adjustment Method
