Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V

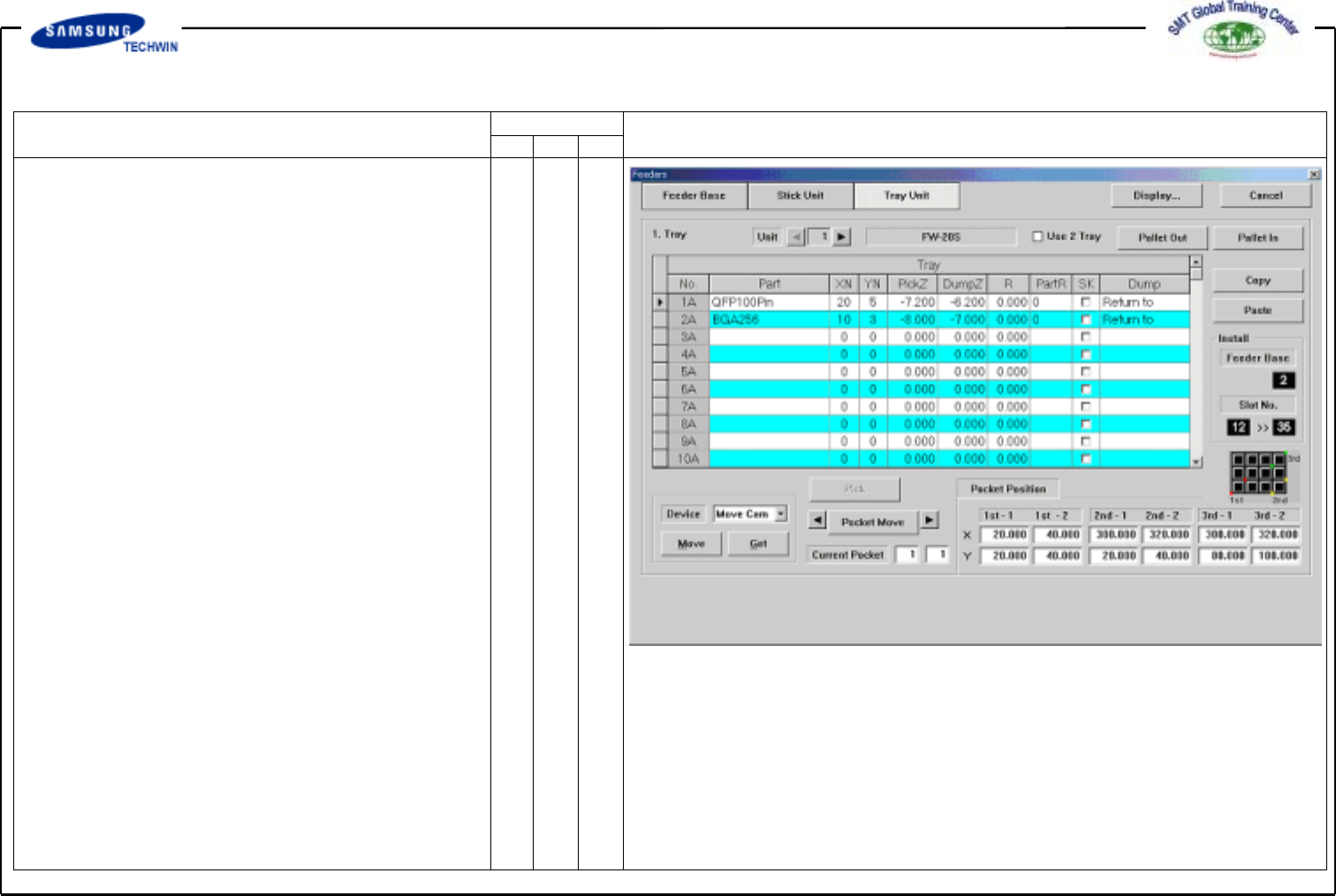

Tray Feeder Register
Part: QFP100Pin / BGA256 Select
Pallet Out: Selects Pallet Out
after selection of relevant
part.
Pocket Position: Applies 2Point
Teaching in 3 positions of Pallet.
XN / YN: Input of X and Y
columns number
PickZ / DumpZ
(Device): Input of Pickup Height
/ Dump Height(Head)
Test Pickup
Refer to 1.2 Feeder in Operations
Manual for more information.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
2.4
)
Step (Place Information Register)
<Place Position Definition>:
Place position definition by 1 point
by individual part 9 points
V
Enter the Reference.
R1, R2, Q1, T1, U1, U2,
U3, M1, C1
V
Define X and Y positions of 9
points and teach that.
Chipr1608 = X: 45 Y: 20
Chipr2012 = X: 25 Y: 32
TANTAL = X: 82 Y: 45
SOP = X: 23 Y: 75
QFP = X: 41 Y: 51
BGA = X: 61 Y: 59
MELF =X:39Y:42
A/C = X: 10 Y: 35
V
Z value Input: Enter 0.5mm for
all values.
V
R value Input: Enter degree of
90 only for TR. (Based upon
CCW)
V
Part Option: Select the part
suitable for coordinates above.
Operating Manual
MODEL
Reference Figure
CP-45/55 Operation Process
V
Cycle Test: Click the left button.
V
Check inputted contents for
wrong contents, and identify
the Cycle.
V
Save: Enter the File Name and
save it. (Array.pcb)

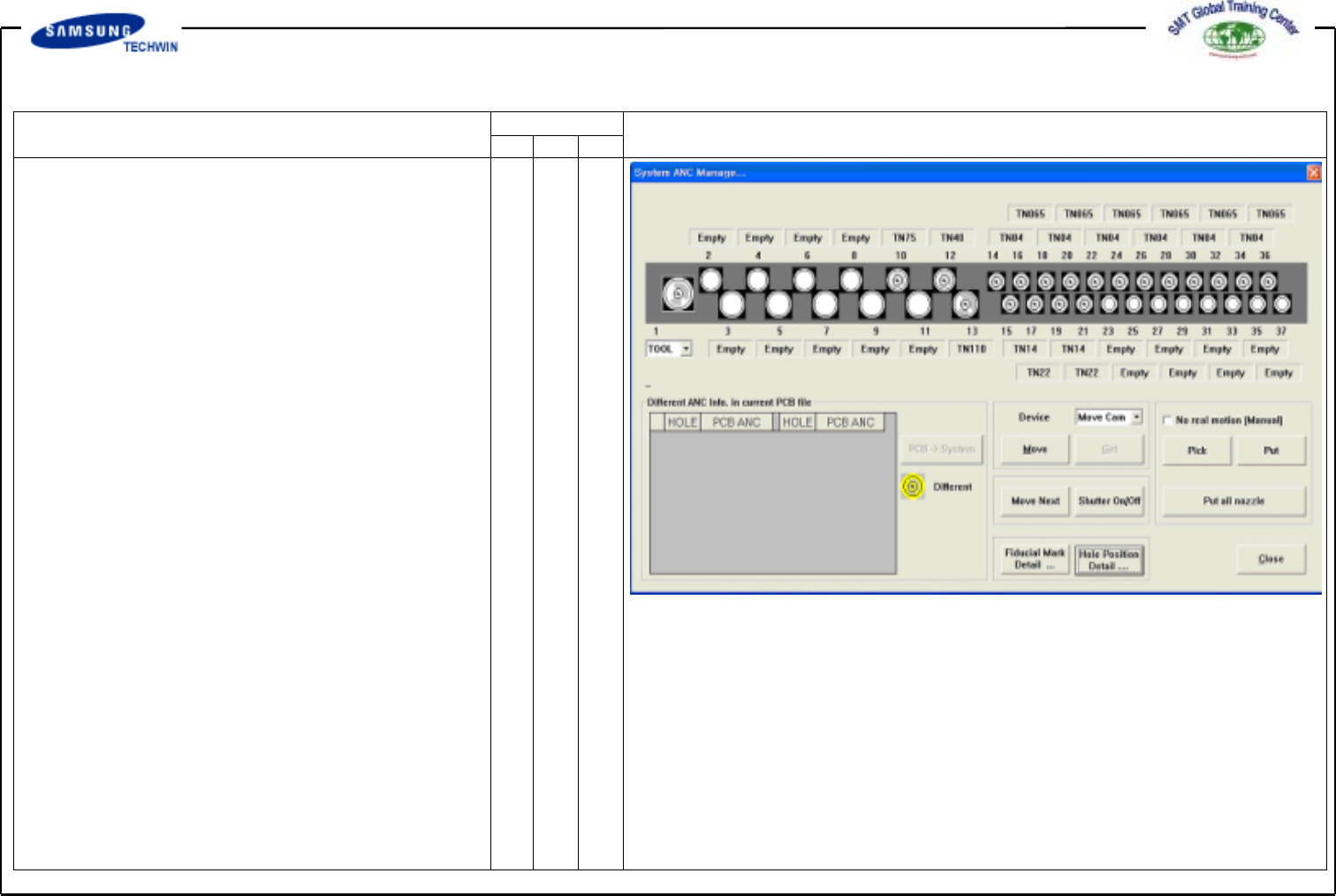

ANC Setting
When placing a nozzle on ANC,
be sure to standardize and use it
as follows. Also, apply the same
placing method as the actual
type. Failing to observe this may
cause an error. If you change
ANC Data frequently, you may
modify the Data based upon PCB.
