Operating Manual Reference Figure CP-45/55 Operation Process 3.2.2 Difference of Feeder "Z Axis" Control 1 1 *Problems : "Z Axis" set at the work site can be deformed if temporary or continuous shock …
Operating Manual Reference Figure
CP-45/55 Operation Process
3.2 Difference Analysis
3.2.1 Difference of Tape Guide Fixing
Part
Problems : Locker is easy to open
even responding to micro
shock as a result of poor
locking caused by a shock of
a head and a feeder of the
chip mounter.
Problem of shock with Head was
improved.
It is judged that the locker will
not open during operation if once
locked.
1
2
Method of inserting No.1 tape guide into slot of No.2 locker
Method of clamping ends of No.1 tape guide with ends of No.2 locker
Operating Manual Reference Figure
CP-45/55 Operation Process

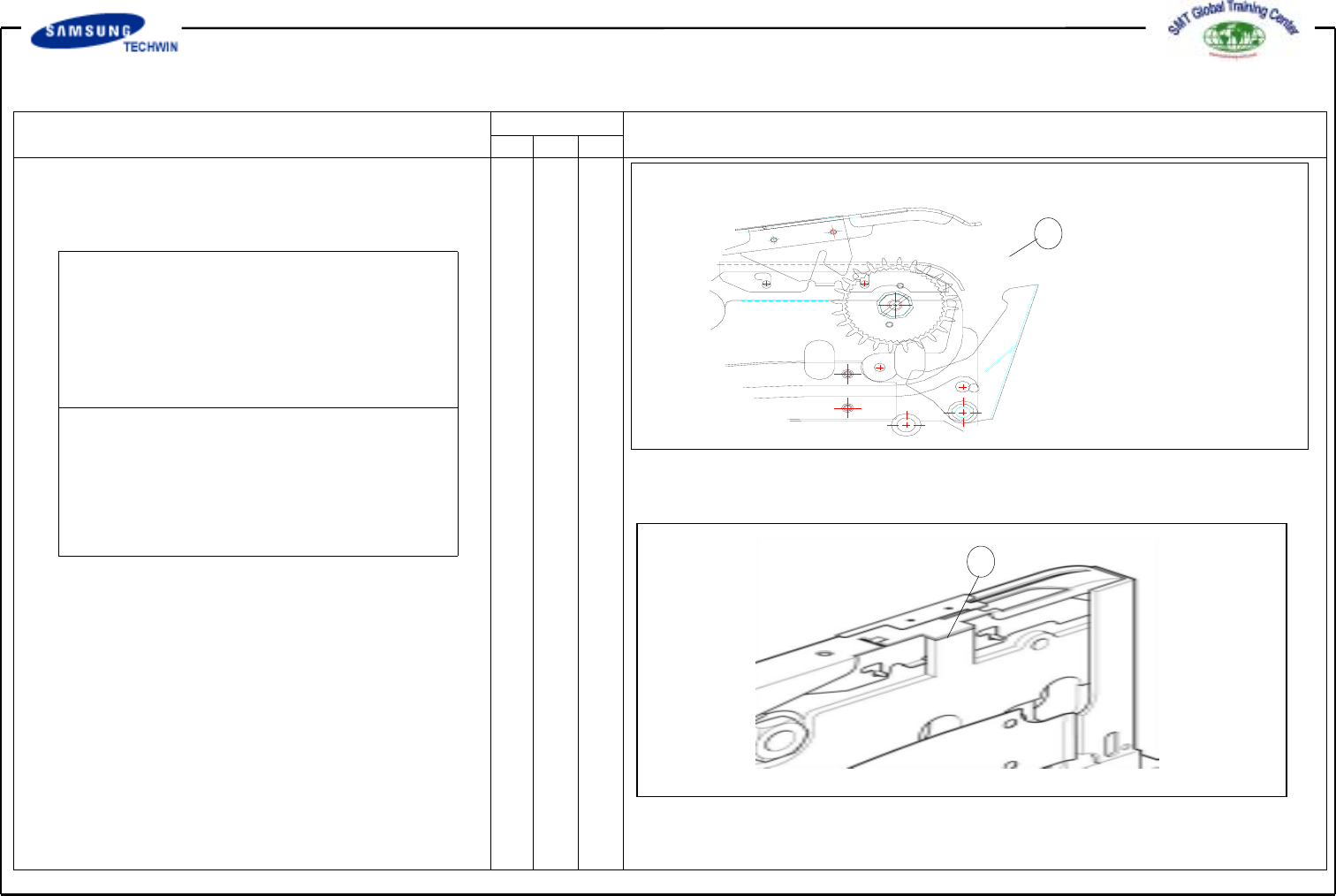

3.2.2 Difference of Feeder "Z Axis"
Control
1
1
*Problems : "Z Axis" set at the work
site can be deformed if temporary or
continuous shock occurs to No. 1
area of tape guide.
*-. It is structured in a manner that
post is put up on the main frame to
support the tape guide and drawn by
the locker.
"Z Axis" height is determined by tape guide.
"Z Axis" height is determined by main frame.
Operating Manual Reference Figure
CP-45/55 Operation Process
3.2.3 Difference of Clamp Types
Lock type by spring
Toggle type and spring type by
link structure
-. As the lock type by one point
contact, it has weak structure
against vibration since it depends
upon only a spring.
-. This is locked with a toggle type
of the link structure and utilize a
spring as an auxiliary function.
It is structured strongly against
the vibration.
