Operating Manual MODEL Reference Figure CP-45/55 Operation Process V Tantal Click the <New Part… > button on the left of the bottom of a screen. Create the Part Name. (Tatal3012t160) Select the Group to Chip-Tantal…

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

Enter the Common Data by

pressing the <Common Data>

button.

Select 12mm Tape on <Feeder>

Combo Box.

Select TN14 and TN22 on

<Nozzle 1> and <Nozzle 2> Combo

Box separately.

<Register> button.

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

Tantal

Click the <New Part…> button on

the left of the bottom of a

screen.

Create the Part Name.

(Tatal3012t160)

Select the Group to Chip-Tantal.

Enter the Part Size.

Align Data - X: 3.0, Y: 1.2,

LW: 0.5

Part Data -Enter the thickness.

(1.6)

Operating Manual

MODEL

Reference Figure

CP-45/55 Operation Process

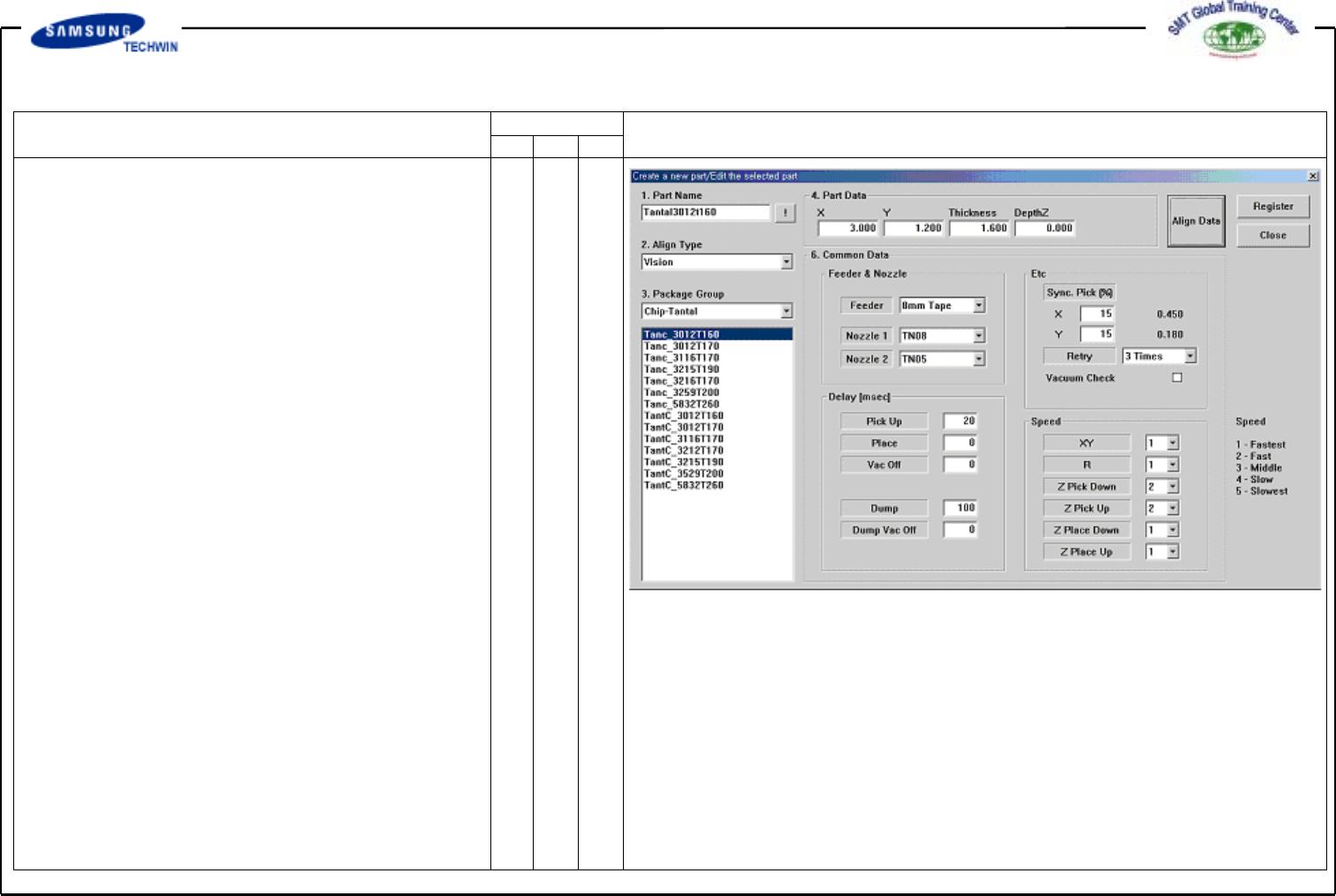

Enter the Common Data by

clicking the <Common Data>

button.

Select 8mm Tape on <Feeder>

Combo Box.

Select TN08 and TN08 on

Combo Box separately.

<Register> button.
