Operating Manual Reference Figure CP-45/55 Operation Process 2.1.3 Separation of Upper Cover Tape(Vinyl) from Feed Tape -> Sep arate the upper cover tape(v inyl) from the feed tape and install that to the f eeder as s…
Operating Manual Reference Figure
CP-45/55 Operation Process
2. Tape Installation
2.1 Tape Installation

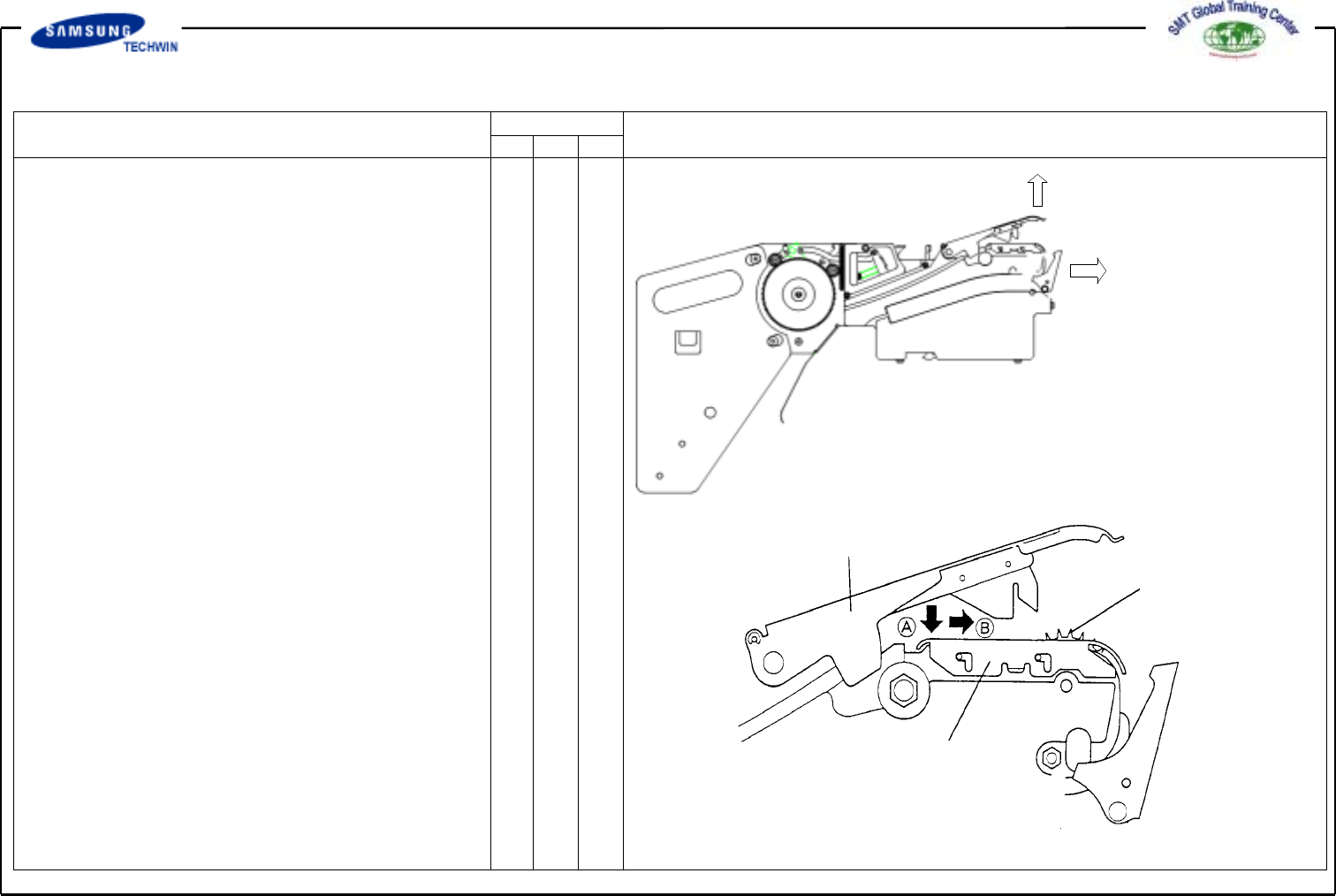

2.1.1 Tape Guide Disassembly
(2). Tape Guide
(1). Locker
->Disassemble the locker by matching
the number and order with the arrow
direction, and raise the tape guide.
2.1.2 Back Up Guide Fixing
->Press the back up guide by matching
with the arrow direction and order and
push it toward B direction to fix it.
Tape Guide
sprocket
Back up guide
Operating Manual Reference Figure
CP-45/55 Operation Process
2.1.3 Separation of Upper Cover
Tape(Vinyl) from Feed Tape
-> Separate the upper cover tape(vinyl)
from the feed tape and install that to
the feeder as shown in Fig. 2.1.3.
Tape guide Tape Separating
Slot
Upper Cover Tape
Feed Tape
2.1.4 Attaching Feed Tape to
Sprocket
-> Insert the sprocket hole in feed
tape into a sprocket, close the tape
guide and lock it with locker as shown
in Fig. 2.1.4.
The shapes of some feeders are
different each other, but apply the
same method to all tape feeders
regardless of the shapes.
Tape guide
Back up guide
Feed Tape
Locker
sprocket
Operating Manual Reference Figure
CP-45/55 Operation Process
2.2 Upper Cover Tape
Handling Method
2.2.1 S-hydraulic Tape Feeder
->For 8mm take up tape feeder,
fix the end of upper cover tape to
the take up reel as shown in
following figure and take the tape
by taking the take up reel up. At
this time, if the upper cover
tape(Vinyl) is too loosen, the take
up reel fails to take up the upper
cover tape(vinyl) and can be
spread together with the feed tape.
Take up Reel Upper Cover Tape
